Remove Floating Contamination
Remove oils that rise to the surface of the wash solution before they continue to accumulate in the tank.
Oil Skimmer Application
Oil Skimmers for Parts Washing & Ultrasonic
Wayne Products oil skimmers for removing floating oils from parts washers, ultrasonic cleaning tanks, and industrial wash systems.
Remove Floating Oil from Parts Washers & Ultrasonic Tanks
Parts washers and ultrasonic cleaning systems can release oils that rise to the surface of the wash solution. Wayne Products oil skimmers continuously collect this floating oil for separate discharge. Stainless steel belt configurations are recommended for hotter, non-neutral, or chemically aggressive wash solutions where polyurethane may not be appropriate.
Why Remove Oil from Parts-Washing Solutions?
Support Bath Maintenance
Continuous surface-oil removal helps keep parts-washing and ultrasonic cleaning systems easier to maintain.
Reduce Manual Oil Removal
An installed oil skimmer continuously collects floating oil, reducing the need to manually remove it from the tank surface.
Which Oil Skimmer Is Right for Your Tank?
Select the skimmer based on tank size, wash-solution temperature and chemistry, expected oil load, and duty cycle. Stainless steel belt models are preferred for hotter or chemically demanding wash solutions, while polyurethane can be used where it is compatible with the fluid and operating temperature.

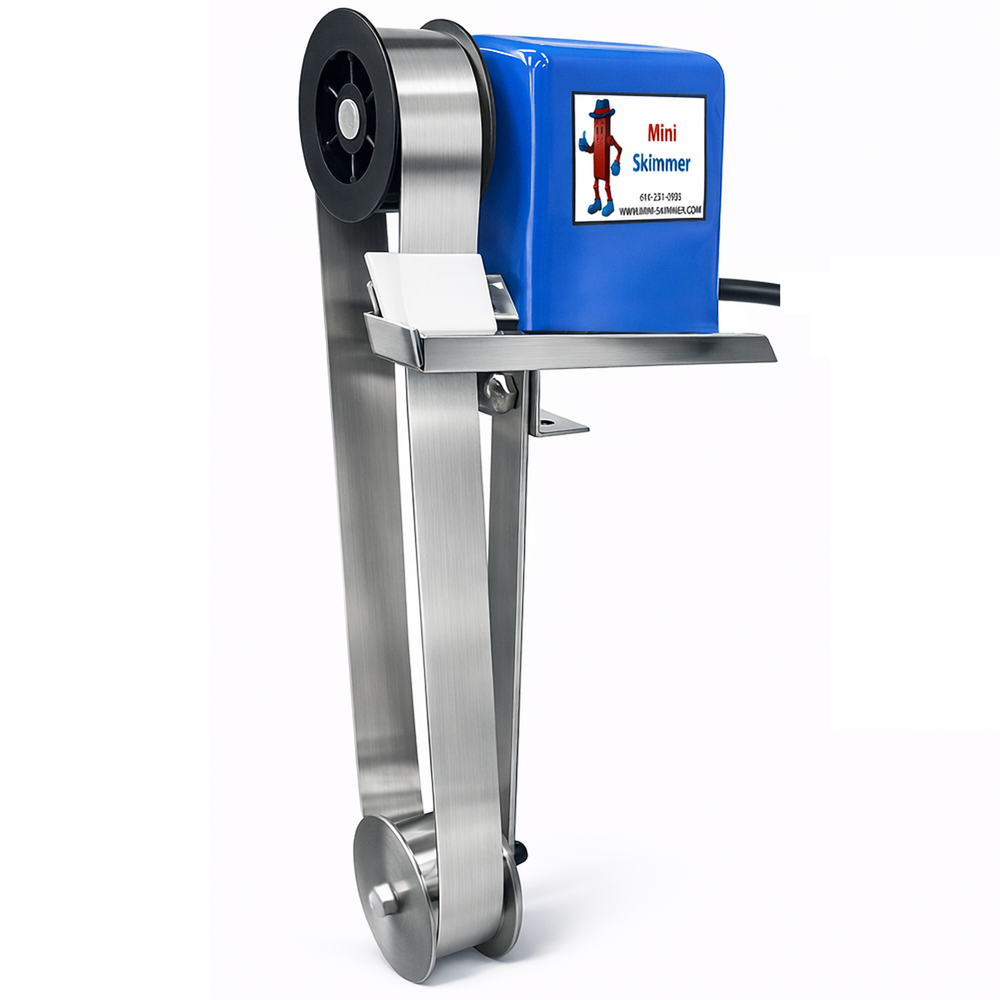

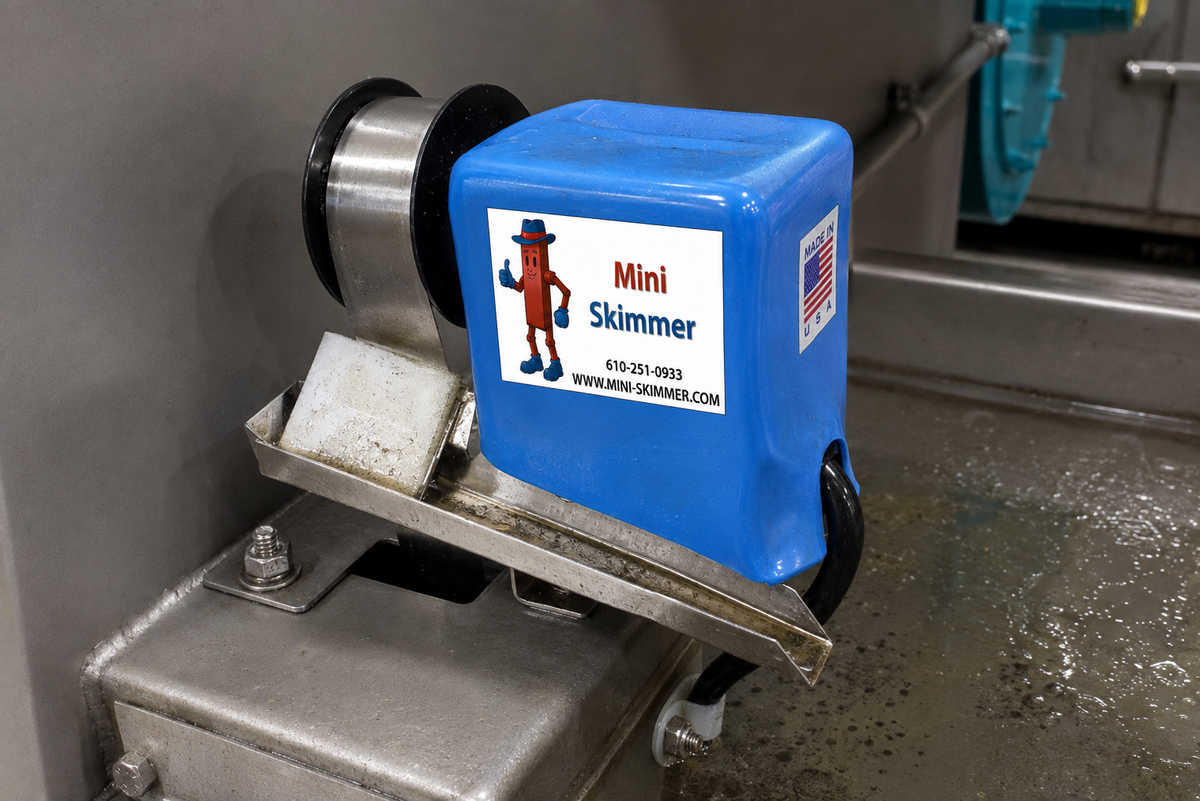

Mini-Skimmer — Stainless Steel
Best for: Smaller parts washers and ultrasonic tanks with hot, non-neutral, or chemically aggressive wash solutions
The stainless steel belt is designed for demanding wash-system applications where higher temperature or fluid chemistry makes stainless steel the preferred belt material.
Shop Stainless Steel

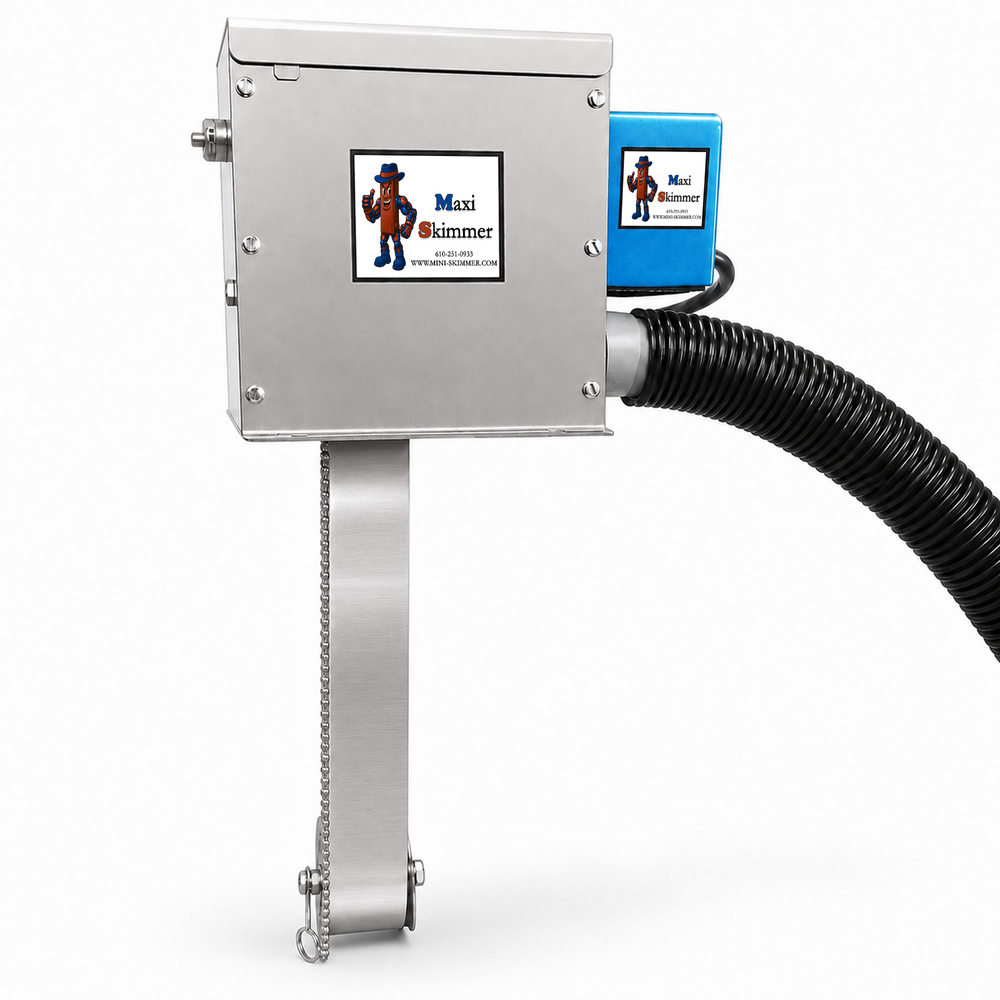

Maxi-Skimmer SSP/2 — Stainless Steel
Best for: Larger parts washers and ultrasonic tanks with steady oil loads
The fixed-speed SSP/2 provides wider stainless steel belt options, longer reaches, and approximately 3–6 GPH oil-removal capacity for larger wash tanks with relatively steady oil loads.
Shop SSP/2
Maxi-Skimmer SSV/5 — Stainless Steel
Best for: Larger parts-washing and ultrasonic systems with variable or heavier oil loads
The variable-speed SSV/5 allows the skimming rate to be adjusted as oil loads change and provides up to 20 GPH oil-removal capacity for larger or more demanding wash systems.
Shop SSV/5
Cogged Poly Mini-Skimmer
Best for: Standard-duty parts washers and ultrasonic tanks with compatible neutral wash solutions below 120°F
A practical Mini-Skimmer option for routine floating-oil removal where polyurethane is compatible with the wash solution, temperature, and operating conditions.
Shop Cogged Poly
Not Sure Which Oil Skimmer Fits?
Share your tank dimensions, wash-solution temperature and chemistry, required reach, and expected oil load. Wayne Products can help identify the skimmer and belt material that best fit the application.
Contact Wayne Products
