Skimerator Oil Skimmer & Coolant Aeration System

Most Wayne-made items ship same or next business day

Coolant-Level Configuration Shallow Draft - Model 3200 Deep Draft - Model 3200D Floating - Model 3200F

Pump Type Standard Duty - P/N 3262 Heavy Duty - P/N 3262HD

Stand No Stand Triangle 12 in Stand - P/N 4599 Square 12 in Stand with Wheels - P/N 5040

Selected configuration

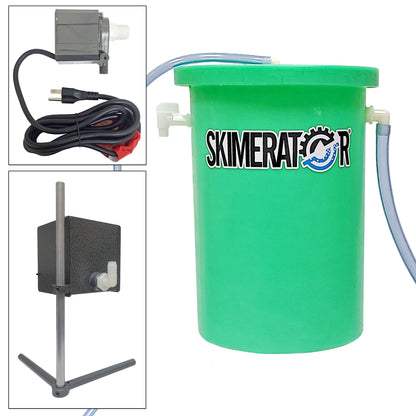

Model 3200 shallow-draft system for coolant levels varying no more than 3 in. Includes the 115 V, 19 W standard-duty pump. No reservoir stand included.

Part # 3200-3262

$687.00 USD

Sale Sold out

Shipping calculated at checkout.

Tramp Oil Removal and Coolant Aeration

Remove floating tramp oil while aerating machine-tool coolant

The Skimerator removes floating tramp oil and contaminants from machining coolant while aerating the coolant as it returns to the sump. A float-controlled skimmer box collects surface fluid, the pump transfers it to the separation reservoir, and cleaner coolant returns to the machine.

Choose the skimmer-box configuration based on coolant-level movement, then select the pump and reservoir stand required for the installation.

Choose the Coolant-Level Configuration

Model

3200

Configuration

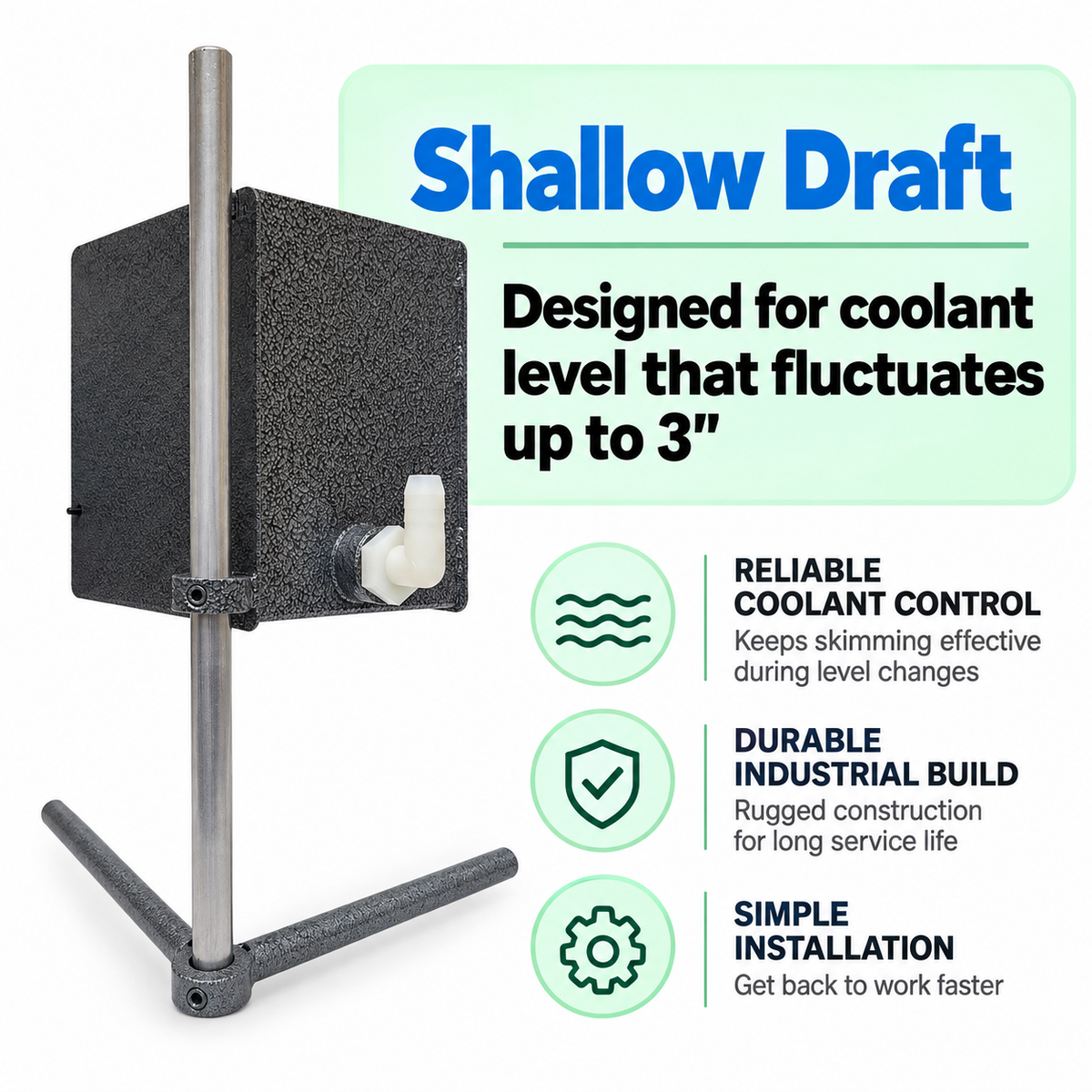

Shallow Draft

Coolant-Level Movement

For levels that vary no more than 3 in

Model

3200D

Configuration

Deep Draft

Coolant-Level Movement

For levels that vary no more than 5 in

Model

3200F

Configuration

Floating

Coolant-Level Movement

For fluctuations beyond the range of a fixed skimmer box

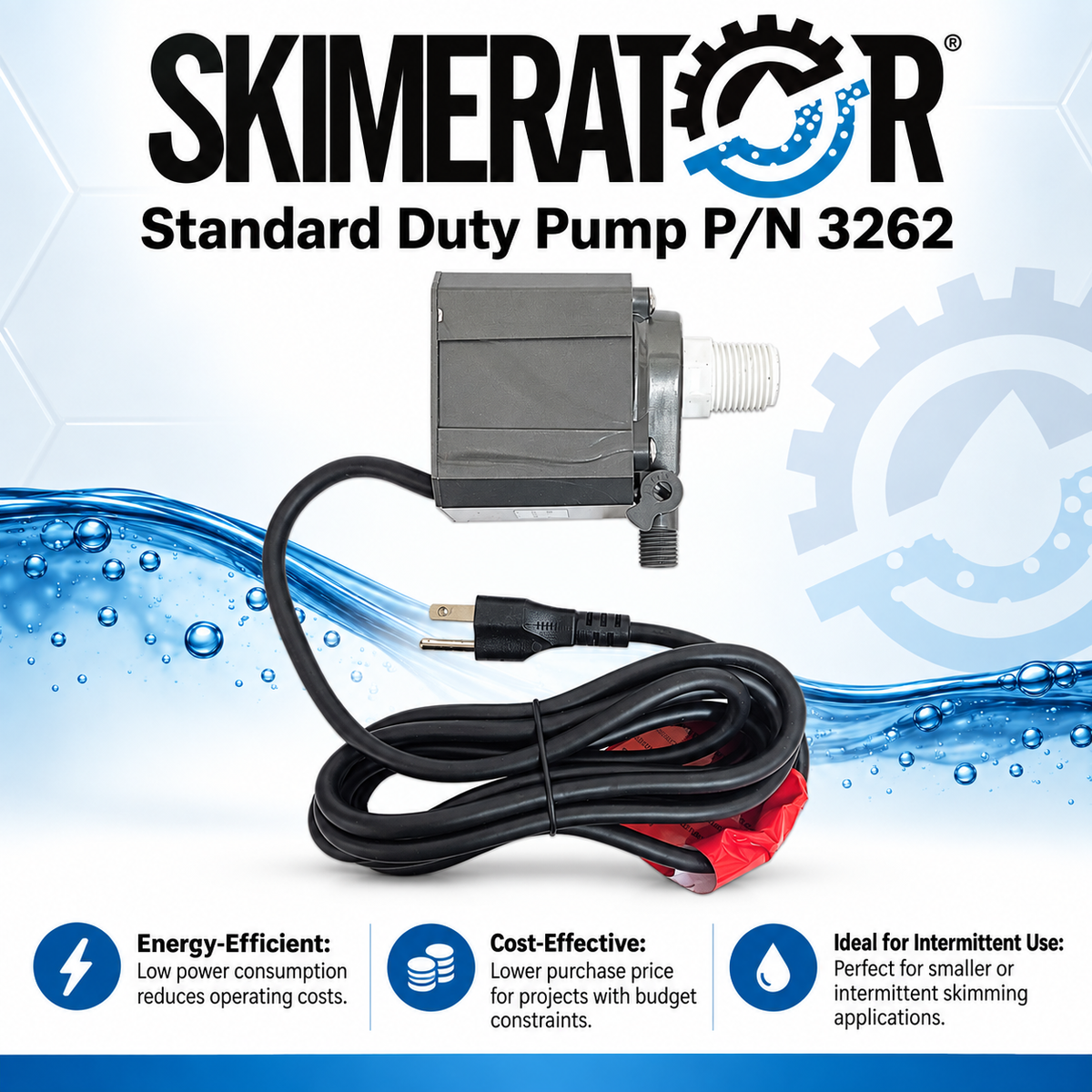

Select the Pump

Pump Type

Standard Duty

Wayne P/N

3262

Electrical Rating

115 V, 19 W, 0.3 A

Pump Type

Heavy Duty

Wayne P/N

3262HD

Electrical Rating

115 V, 36 W, 0.6 A; epoxy-encapsulated motor

Choose a Reservoir Stand

Selection

No Stand

Application

Select when the reservoir will be supported separately

Stand

Triangle 12 in Stand

Wayne P/N

4599

Stand

Square 12 in Stand with Wheels

Wayne P/N

5040

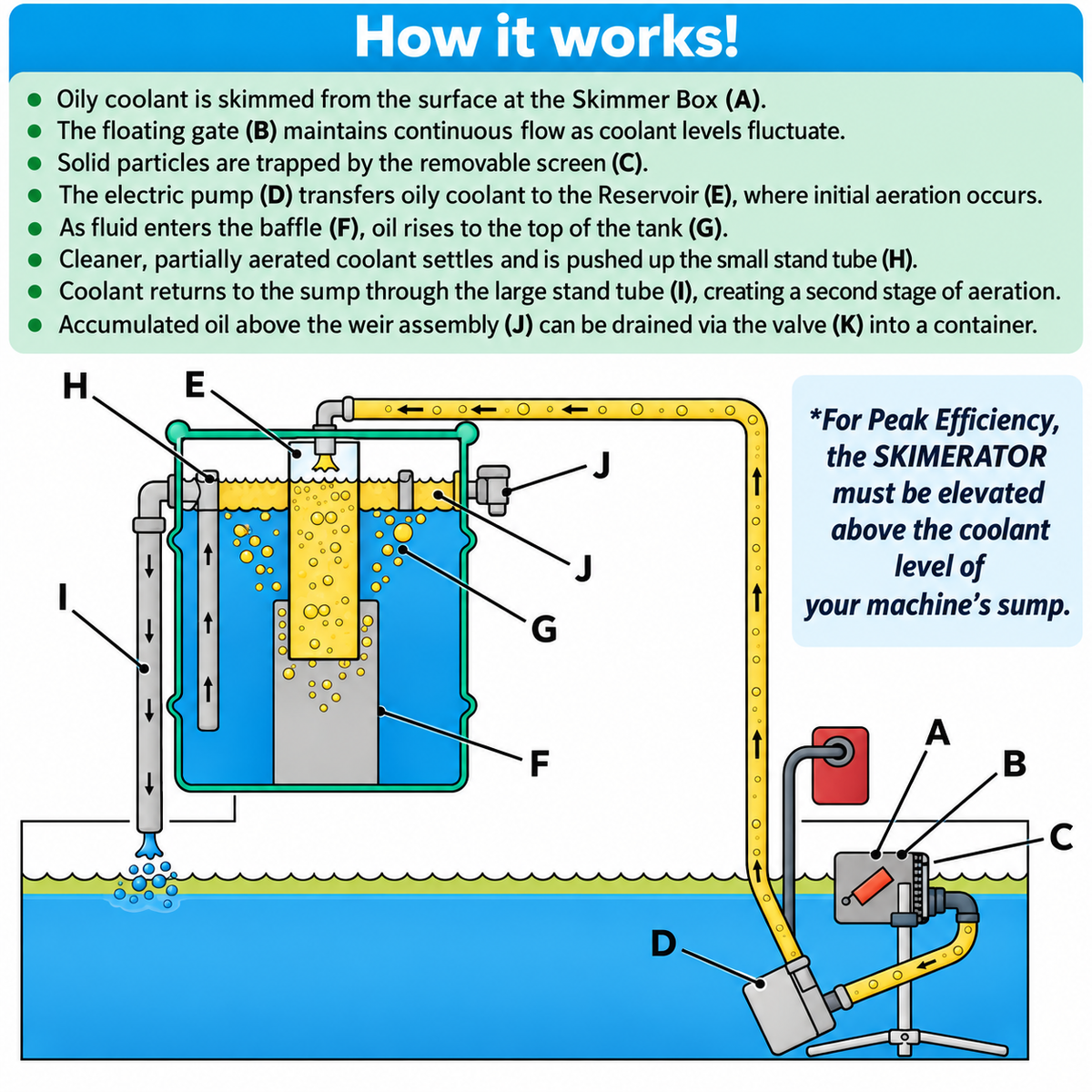

How the Skimerator Works

1. Collect

Floating tramp oil and coolant enter the float-controlled skimmer box. A removable trash screen helps protect the pump from debris.

2. Separate

The pump transfers the collected fluid to the reservoir, where tramp oil rises and cleaner coolant settles below it.

3. Return and Aerate

Cleaner coolant returns to the machine sump through the two-stage return path, aerating the coolant during operation.

Selected System Configuration

Included

Selected shallow, deep, or floating skimmer-box configuration
Selected standard-duty or heavy-duty pump
Reservoir and separation assembly
Connecting hoses and installation hardware
Selected reservoir stand, when a stand option is chosen

Installation Requirements

Mount the reservoir level and above the coolant sump
Keep the pump fully submerged during operation
Keep the coolant-return hose sloped downward toward the sump
Confirm sump depth, access opening, and coolant-level range before ordering

Before ordering: Measure the normal, highest, and lowest coolant levels and confirm that the selected skimmer box can pass through the available sump opening.
