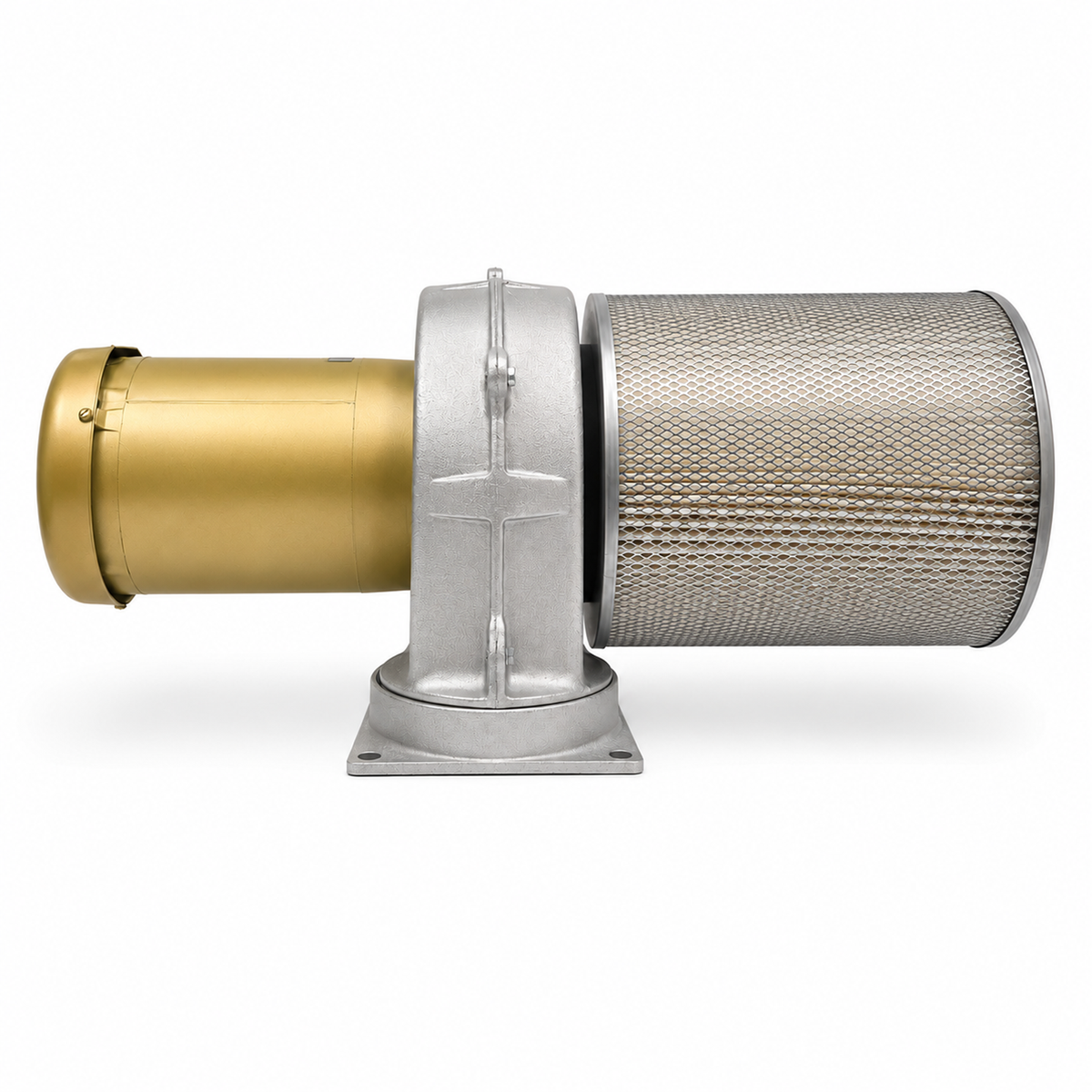

• Electra-Kool Model 1000 filtered blower with pleated paper filter

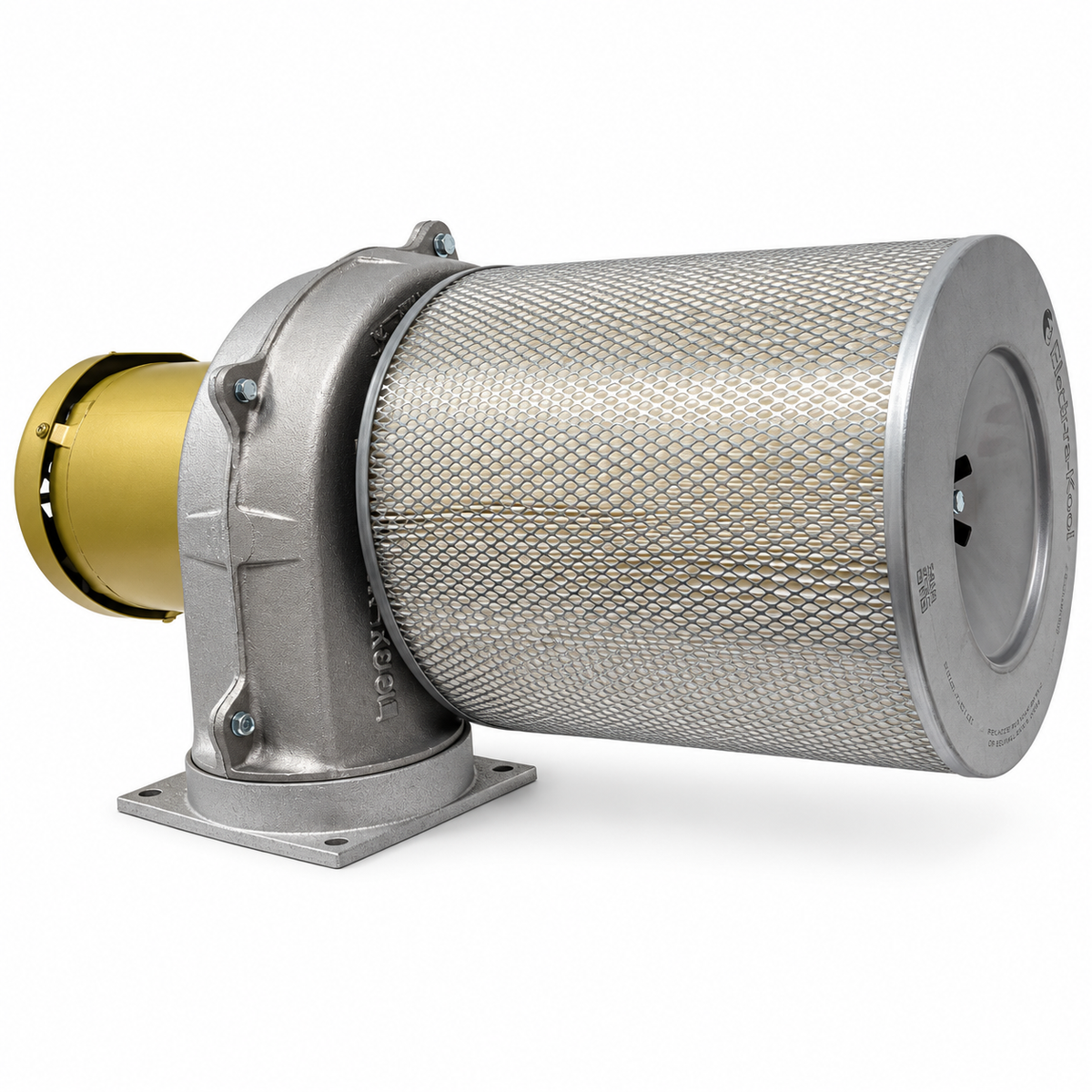

  • Electra-Kool Model 1000 filtered blower with pleated paper filter alternate view

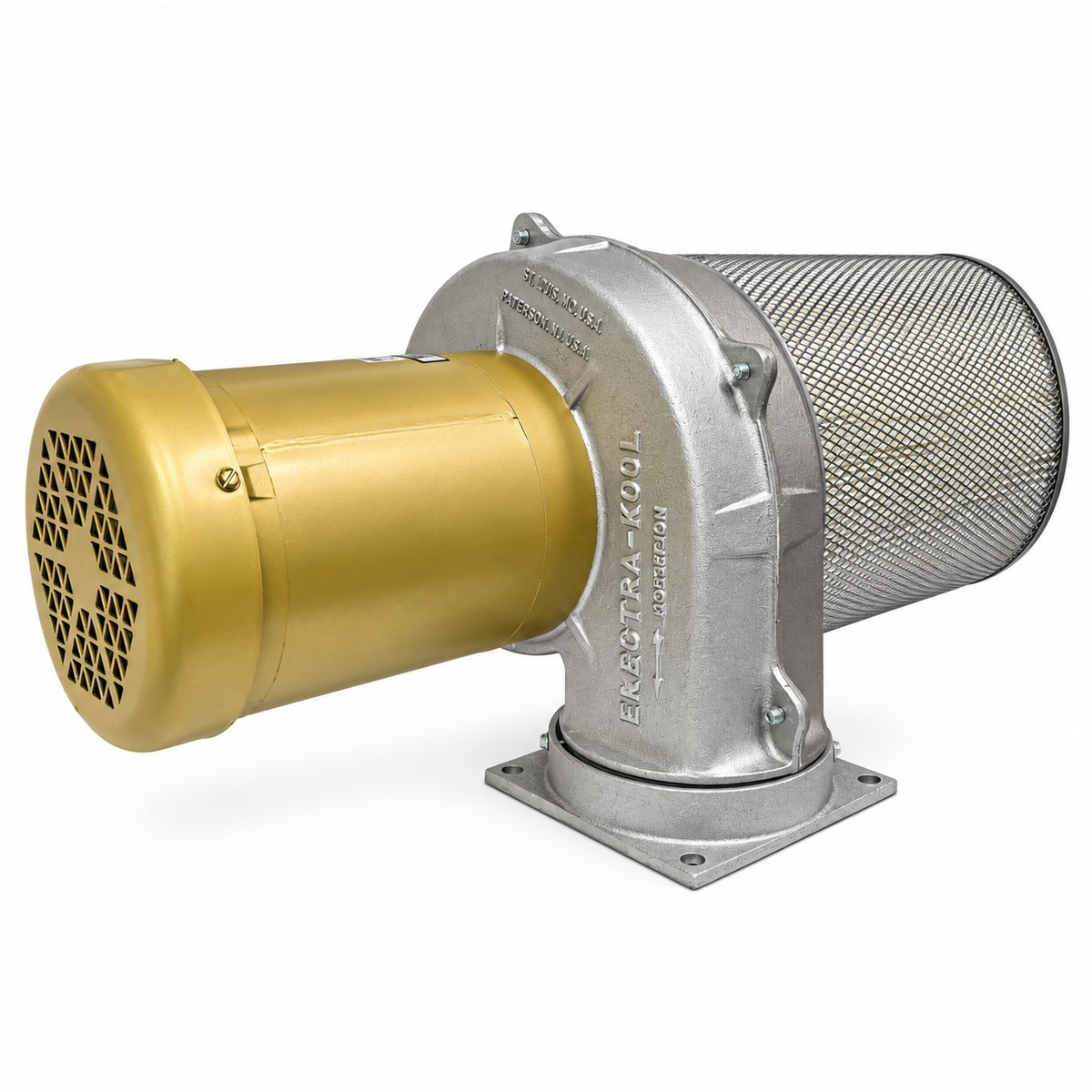

  • Electra-Kool Model 1000 filtered blower with pleated paper filter alternate view
1 3

Wayne Products

Electra-Kool Model 1000 Filtered Blower

Electra-Kool Model 1000 Filtered Blower

  • Most Wayne-made items ship same or next business day
Filter
Power Configuration

Selected configuration

Electra-Kool® Model 1000 filtered blower — Pleated Paper — 115 V — Single Phase. Full Accessory Package — Prefilter, 4 louvered vents, thermometer, and air deflector.

Part # 10290

$1,415.00 USD
$1,415.00 USD
Sale Sold out
Shipping calculated at checkout.

High-capacity filtered airflow

Clean cooling for large enclosures and DC motors

The Electra-Kool Model 1000 delivers 1180-1200 CFM of filtered ambient air. It is recommended for electrical enclosures up to 500 cubic feet or DC motors up to 125 HP.

Choose your configuration

Select the filter and power configuration that match your application.

Blower Only

- No filter included; filter mounting hardware is supplied.
- 115 V - Single Phase: Wayne P/N 10210
- 460 V - Three Phase: Wayne P/N 10045

Metal Mesh Filter

- Coarse filtration with a metal mesh filter and filter mounting hardware.
- 115 V - Single Phase: Wayne P/N 10029
- 460 V - Three Phase: Wayne P/N 10297

Polyester Filter

- Medium filtration with a polyester filter, prefilter wrap, and filter mounting hardware.
- 115 V - Single Phase: Wayne P/N 10286
- 460 V - Three Phase: Wayne P/N 10288

Pleated Paper Filter

- Fine filtration with a prefilter wrap, four louvered vents, digital thermometer, air deflector, and filter mounting hardware.
- 115 V - Single Phase: Wayne P/N 10290
- 460 V - Three Phase: Wayne P/N 10292

HEPA Filter

- Very fine filtration with a prefilter wrap, four louvered vents, digital thermometer, air deflector, and mounting hardware.
- 115 V - Single Phase: Wayne P/N 10294
- 460 V - Three Phase: Wayne P/N 10296

Blower specifications

- Airflow: 1180-1200 CFM
- Recommended enclosure capacity: Up to 500 cubic feet
- Recommended DC motor capacity: Up to 125 HP
- Filtered configuration dimensions: 28 in. high x 15 in. wide x 13 in. deep
- Blower-only dimensions: 15 in. high x 15 in. wide x 13 in. deep
- Construction: Cast aluminum housing with heavy-duty steel impeller
- Outlet flange: 6.5 in. square with 6 in. hole-to-hole spacing
- Pleated filter surface area: 95 sq. ft.
- Finger guards are installed on both the inlet and outlet.

Power configurations

115 V - Single Phase

1 HP, 3450 RPM, 56C frame, capacitor-start motor; 115/208-230 V, 60 Hz, TEFC. Amperage: 11.8 A at 115 V, 6.3 A at 208 V, and 5.9 A at 230 V. UR & CSA listed.

460 V - Three Phase

1 HP, 3450 RPM, 56C frame motor; 208-230/460 V, 60 Hz, TEFC. Amperage: 3.0 A at 208 V, 2.8 A at 230 V, and 1.4 A at 460 V. UR & CSA listed.

Replacement filtration

- P/N 10220: Model 1000 pleated paper filter
- P/N 10221: Model 1000 metal mesh filter
- P/N 10231: Model 1000 polyester filter
- P/N 10226: Model 1000 HEPA filter
- P/N 10222: Model 1000 prefilter wrap

Need help finding the right product, replacement part, or configuration? Contact Wayne Products for product selection and application assistance.
