Electra-Kool Model 3000 Filtered Blower

Most Wayne-made items ship same or next business day

Filter Blower Only Metal Mesh Pleated Paper

Power Configuration 460 V - Three Phase

Selected configuration

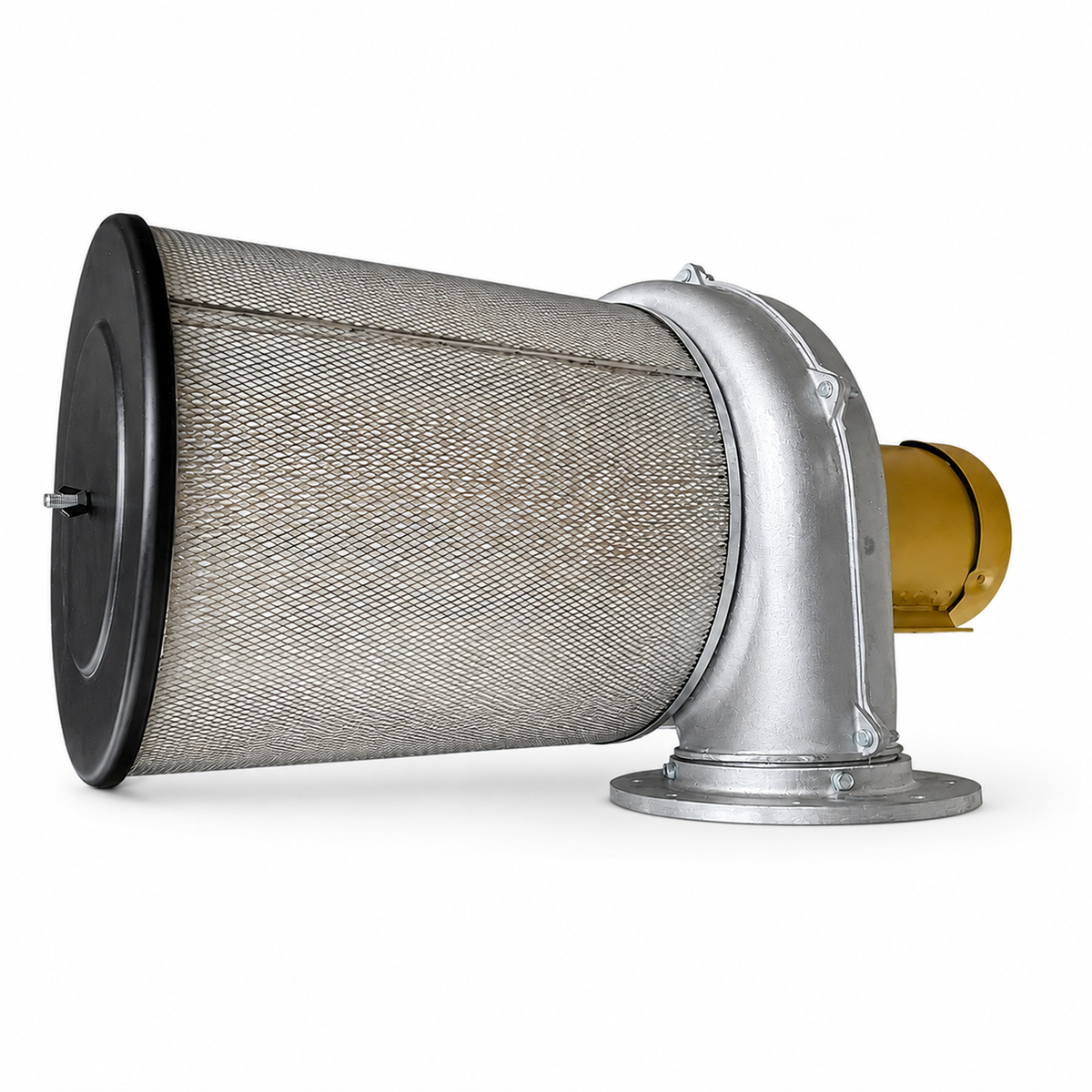

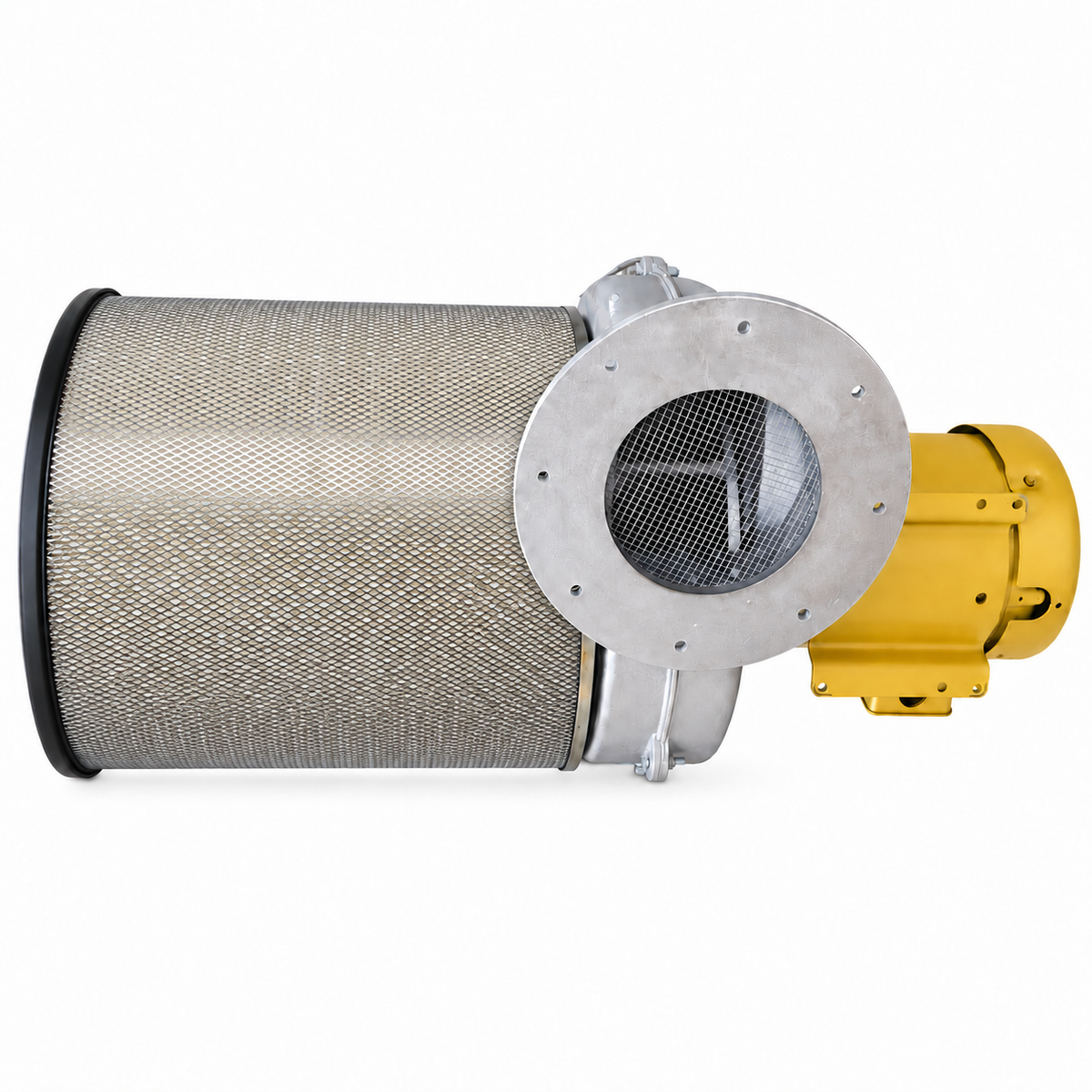

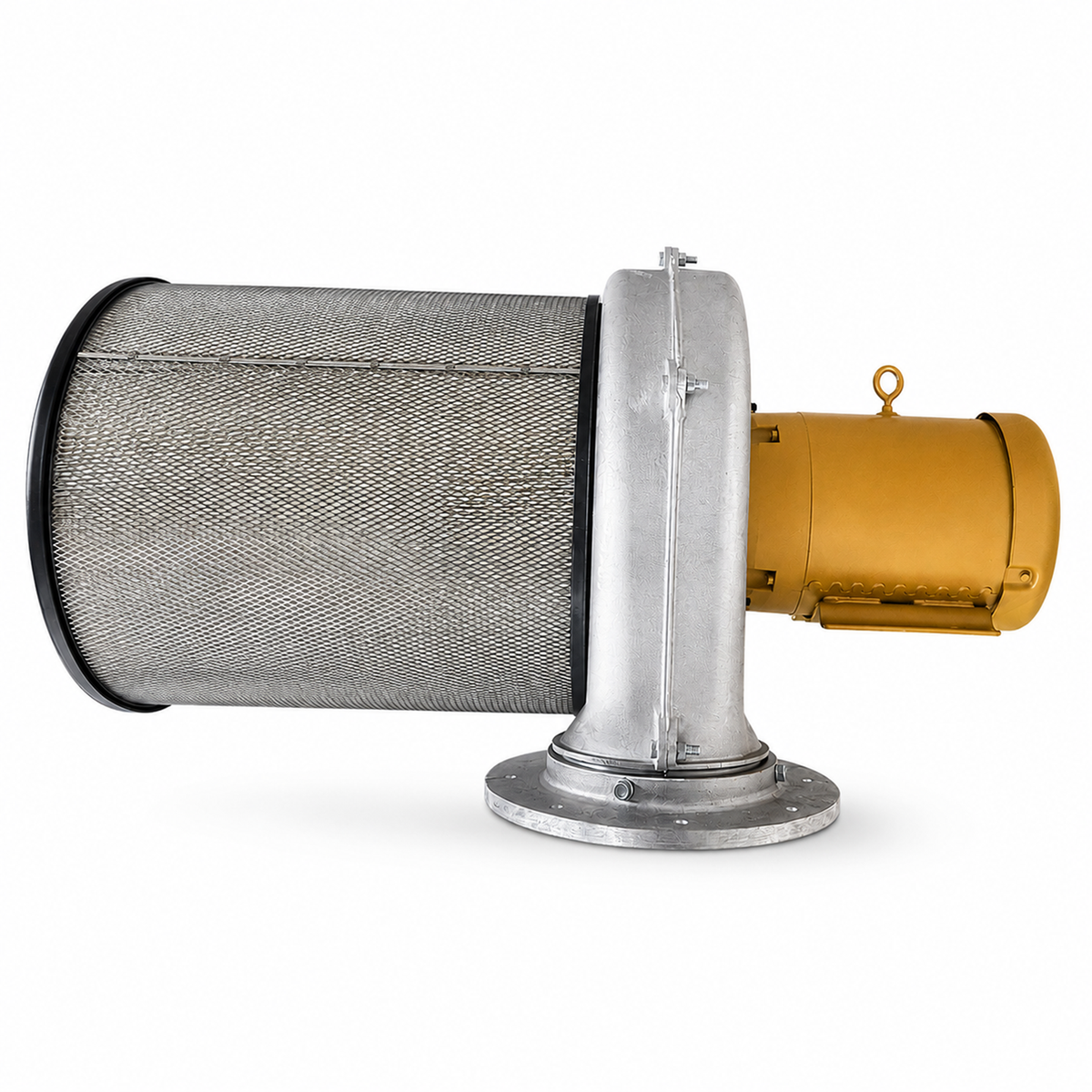

Electra-Kool® Model 3000 filtered blower — Pleated Paper — 460 V — Three Phase. Full Accessory Package — Prefilter, 4 louvered vents, thermometer, and air deflector.

Part # 13202

$5,146.00 USD

Sale Sold out

Shipping calculated at checkout.

Industrial filtered ventilation

High-capacity filtered airflow for large DC motors

The Electra-Kool Model 3000 supplies 3000 CFM of ambient airflow for large industrial cooling applications and DC motors up to 600 HP. Select the filter configuration required for your application.

Choose your configuration

Blower Only

Complete blower without a filter.

- 460 V - Three Phase: Wayne P/N 13201

Metal Mesh

Coarse, washable metal mesh filter.

- 460 V - Three Phase: Wayne P/N 13200

Pleated Paper

Fine pleated paper filter with full accessory package.

- 460 V - Three Phase: Wayne P/N 13202

Product specifications

- 3000 CFM airflow

- Recommended for DC motors up to 600 HP

- 44.5 in overall length

- 22.81 in wide

- 25.38 in deep from mounting flange

- Rugged cast-aluminum housing and impeller

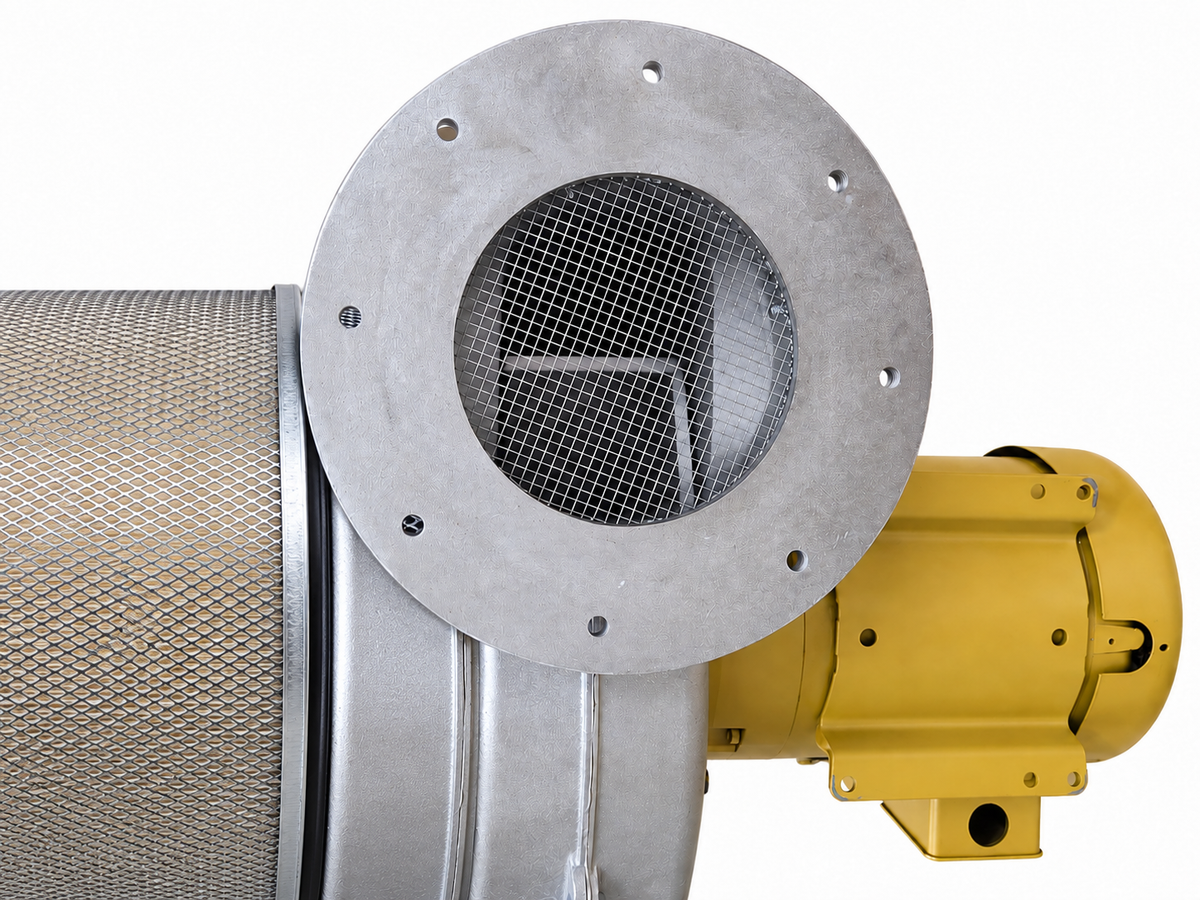

- 13.5 in circular mounting flange

- 106 sq ft filter surface area

- Finger guards installed on the inlet and outlet

Motor and electrical

460 V - Three Phase

- 10 HP, 3490 RPM, 215TC frame, TEFC motor

- Motor rating: 208-230/460 V, 60 Hz

- 24.0 A at 208 V; 23.2 A at 230 V; 11.6 A at 460 V

UR, CSA and EEV listed.

Standard configuration

The standard Model 3000 build has the outlet flange and terminal box on the left. Contact Wayne Products before ordering if your installation requires a different configuration.

Replacement filtration

- P/N 90002 - Model 3000 Pleated Paper Filter

- P/N 13215 - Model 3000 Metal Mesh Filter

- P/N 10826 - Model 3000 Prefilter

Filter replacement: Reuse the existing Model 3000 filter end cap when replacing the filter element. The end cap is not part of the replacement filter.

Need help finding the right product, replacement part, or configuration? Contact Wayne Products for product selection and application assistance.
