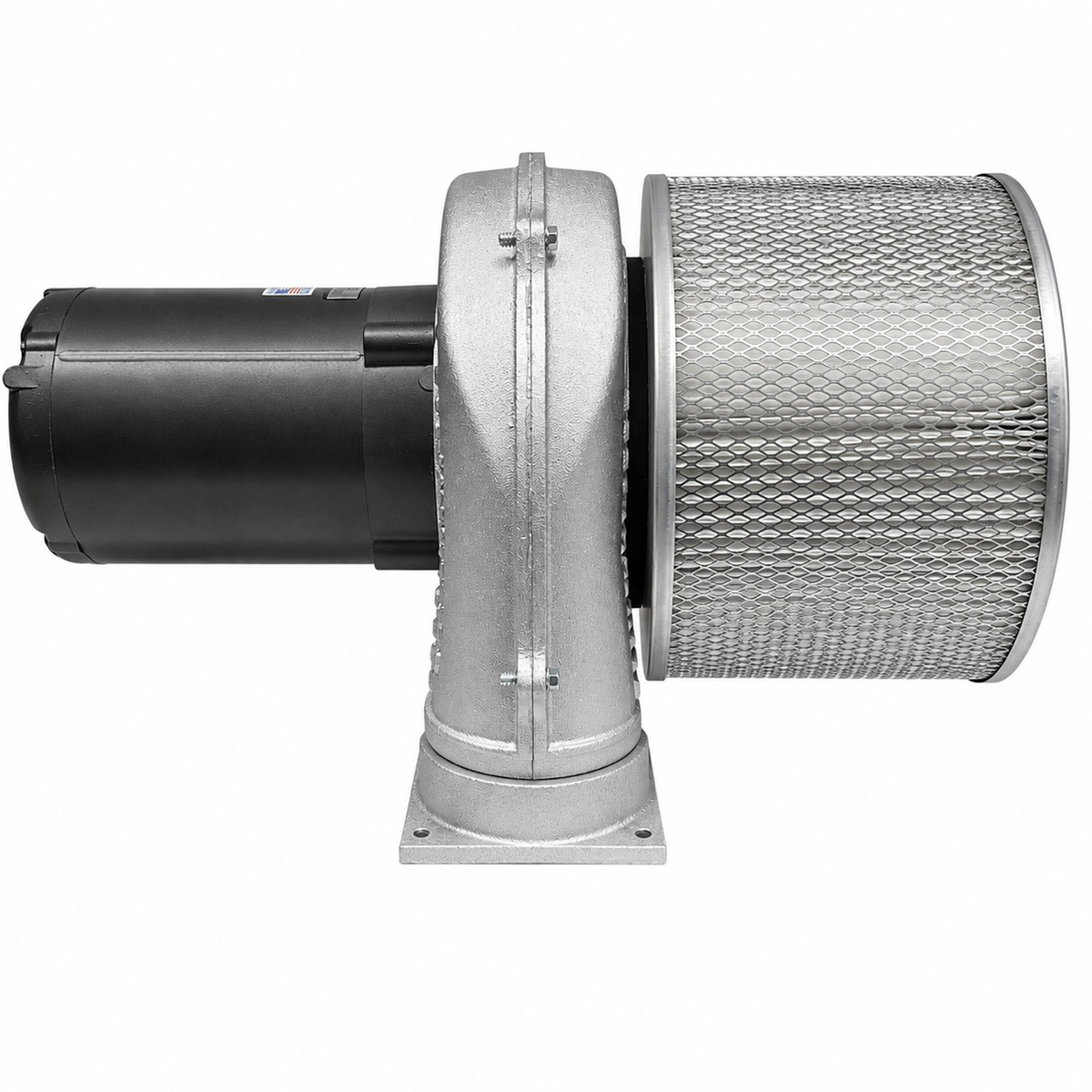

• Electra-Kool Model 500 filtered blower with HEPA filter

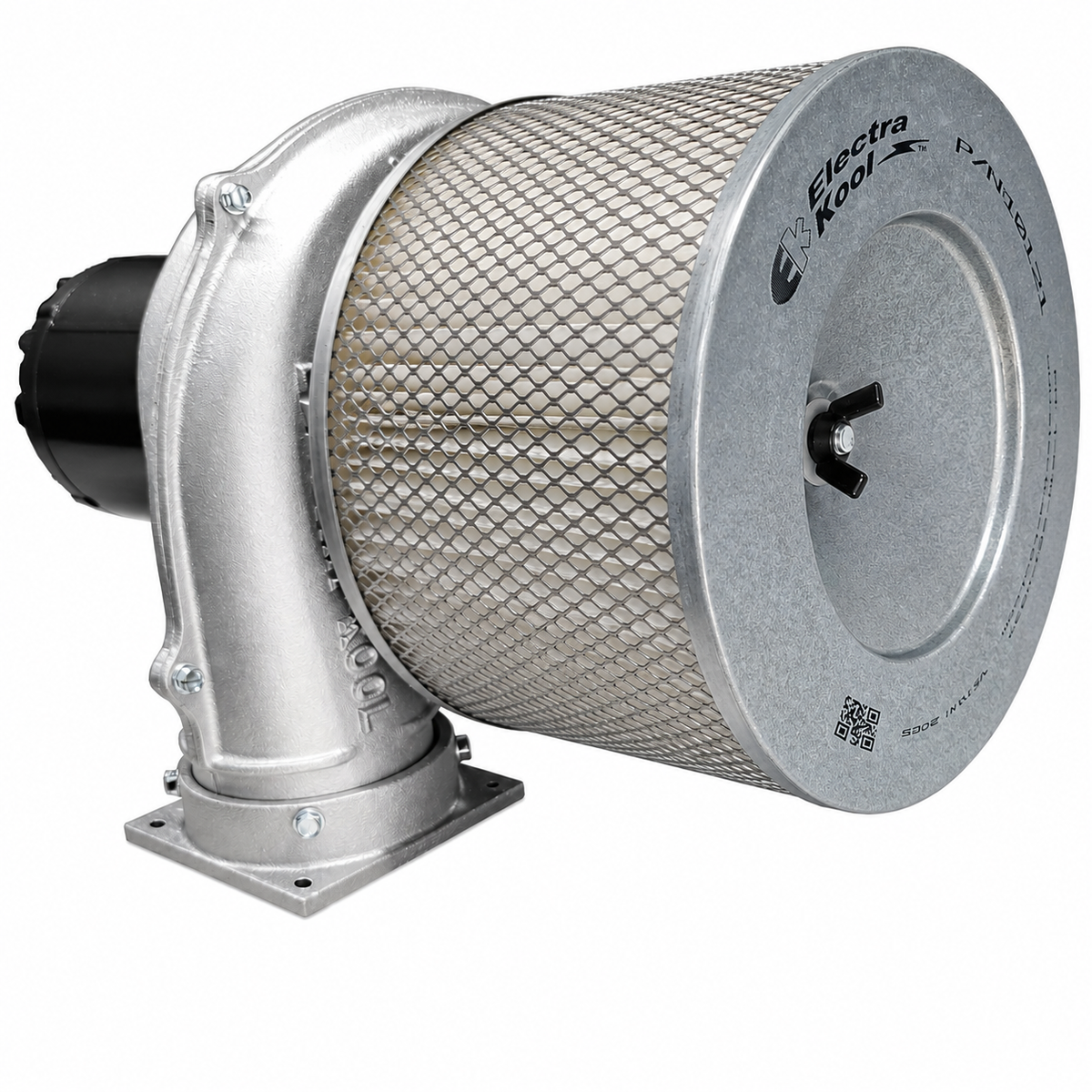

  • Electra-Kool Model 500 filtered blower with HEPA filter alternate view

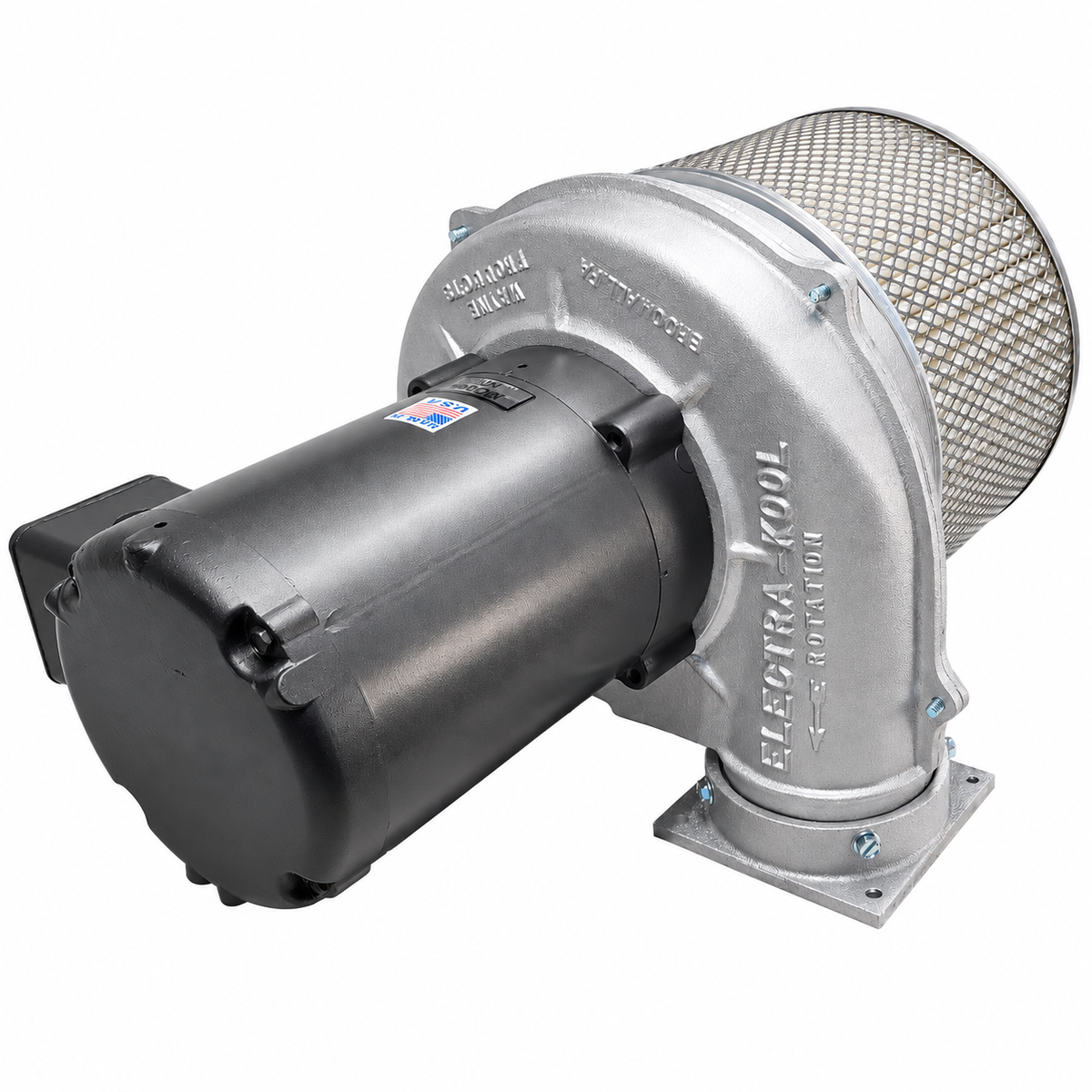

  • Electra-Kool Model 500 filtered blower with HEPA filter alternate view
1 3

Wayne Products

Electra-Kool Model 500 Filtered Blower

Electra-Kool Model 500 Filtered Blower

  • Most Wayne-made items ship same or next business day
Filter
Power Configuration

Selected configuration

Electra-Kool® Model 500 filtered blower — HEPA — 115 V — Single Phase. Full Accessory Package — Prefilter, 3 louvered vents, thermometer, and air deflector.

Part # 10194

$1,382.00 USD
$1,382.00 USD
Sale Sold out
Shipping calculated at checkout.

Industrial filtered ventilation

High-capacity cooling for electrical enclosures and DC motors

The Electra-Kool Model 500 supplies filtered ambient air to help control heat and airborne contamination in electrical enclosures up to 200 cubic feet or DC motors up to 50 HP. Select the filter package and power configuration required for your application.

Choose your configuration

Blower Only

Complete blower without a filter. Filter mounting hardware is included.

- 115 V - Single Phase: Wayne P/N 10110
- 460 V - Three Phase: Wayne P/N 10111

Metal Mesh

Coarse, washable metal mesh filter with mounting hardware.

- 115 V - Single Phase: Wayne P/N 10027
- 460 V - Three Phase: Wayne P/N 10028

Polyester

Medium, washable polyester filter with a prefilter wrap and mounting hardware.

- 115 V - Single Phase: Wayne P/N 10186
- 460 V - Three Phase: Wayne P/N 10188

Pleated Paper

Fine pleated paper filter with prefilter wrap, three louvered vents, digital thermometer, air deflector and mounting hardware.

- 115 V - Single Phase: Wayne P/N 10190
- 460 V - Three Phase: Wayne P/N 10192

HEPA

Very-fine HEPA filter with prefilter wrap, three louvered vents, digital thermometer, air deflector and mounting hardware.

- 115 V - Single Phase: Wayne P/N 10194
- 460 V - Three Phase: Wayne P/N 10196

Product specifications

- 455-465 CFM airflow
- Recommended for enclosures up to 200 cubic feet or DC motors up to 50 HP
- Filtered configurations: 21 in high x 12.5 in wide x 13 in deep
- Blower-only configurations: 14 in high x 12.5 in wide x 13 in deep
- Rugged cast-aluminum housing with aluminum impeller
- 4.75 in square mounting flange with 4 in hole-to-hole spacing
- 44 sq ft filter surface area
- Finger guards installed on the inlet and outlet

Motor and electrical

115 V - Single Phase

- 1/3 HP, 3450 RPM, 56C frame, TEFC motor
- Motor rating: 115/208-230 V, 60 Hz
- 6.0 A at 115 V; 3.2-3.7 A at 208 V; 3.0 A at 230 V

460 V - Three Phase

- 1/3 HP, 3450 RPM, 56C frame, TENV motor
- Motor rating: 208-230/460 V, 60 Hz
- 1.6 A at 208 V; 1.4 A at 230 V; 0.7 A at 460 V

Both motor configurations are UR and CSA listed.

Replacement filtration

- Pleated Paper Filter: Wayne P/N 10120
- Metal Mesh Filter: Wayne P/N 10121
- Polyester Filter: Wayne P/N 10131
- HEPA Filter: Wayne P/N 10126
- Prefilter Wrap: Wayne P/N 10122

Need help finding the right product, replacement part, or configuration? Contact Wayne Products for product selection and application assistance.
