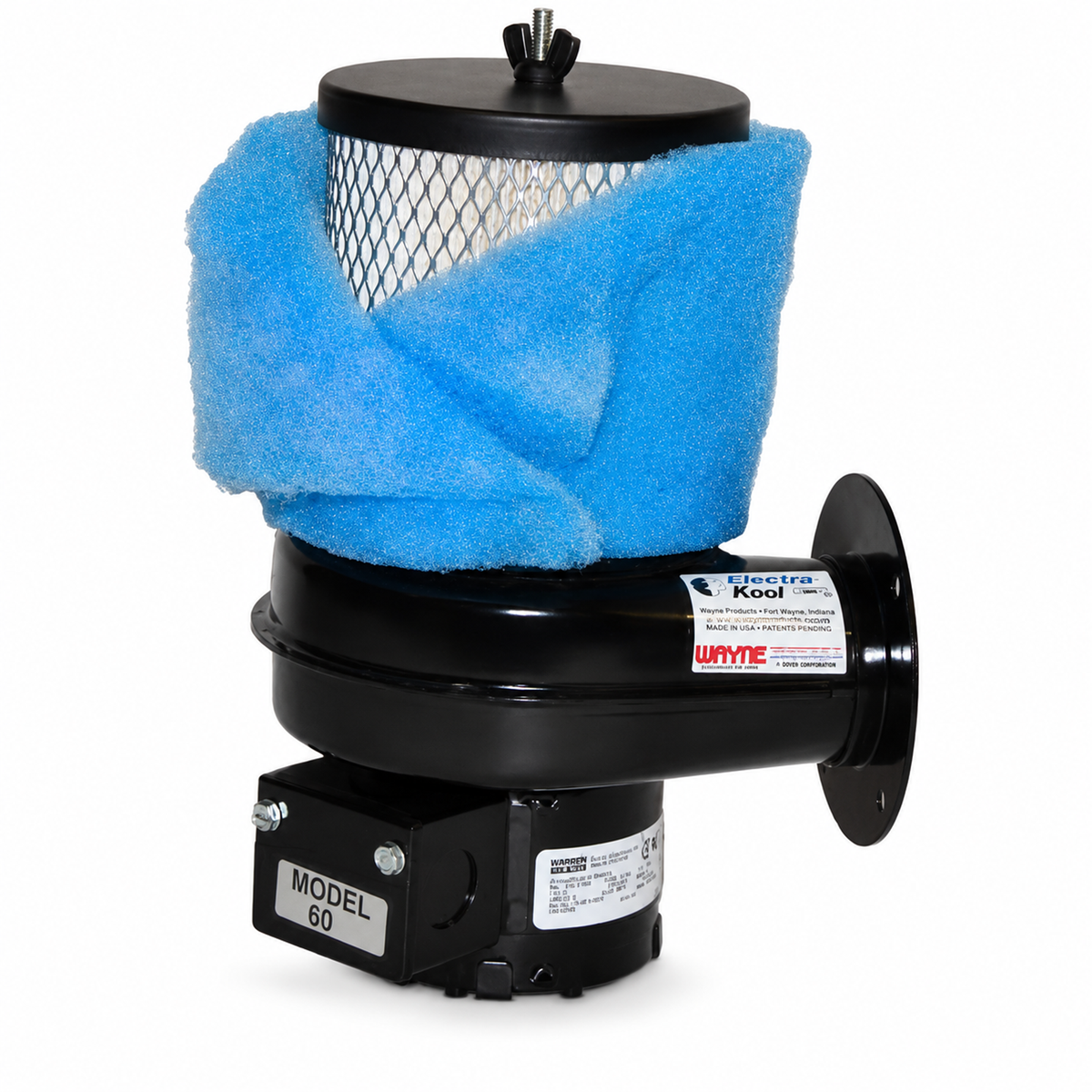

Electra-Kool Model 60 Filtered Blower

Industrial Enclosure Cooling

Compact filtered airflow for small electrical enclosures

The Electra-Kool Model 60 Filtered Blower delivers 60 CFM and is recommended for electrical enclosures up to 10 cubic feet. The complete unit uses a pleated paper filter and operates on 115 V single-phase power.

Product specifications

Blower and filter

• - Wayne P/N 10060
• - 60 CFM airflow
• - Pleated paper filter
• - 3 sq ft filter surface area
• - 4 in circular outlet flange

Motor and electrical

• - 115 V, single phase, 60 Hz
• - 1/125 HP
• - 3030 RPM
• - 0.49 amp draw
• - UL and CSA listed

Construction and size

• - 10.5 in high x 7 in wide x 6.5 in deep
• - Powder-coated steel housing
• - Galvanized steel impeller

Included

• - Pleated paper filter and prefilter wrap
• - One louvered vent
• - Digital thermometer
• - Mounting hardware

Replacement filtration

• - Pleated paper filter: P/N 10061
• - Prefilter: P/N 10062

Before ordering

Confirm a 115 V, single-phase, 60 Hz power supply and an enclosure capacity of no more than 10 cubic feet. The Model 60 is not recommended for DC motor applications.
