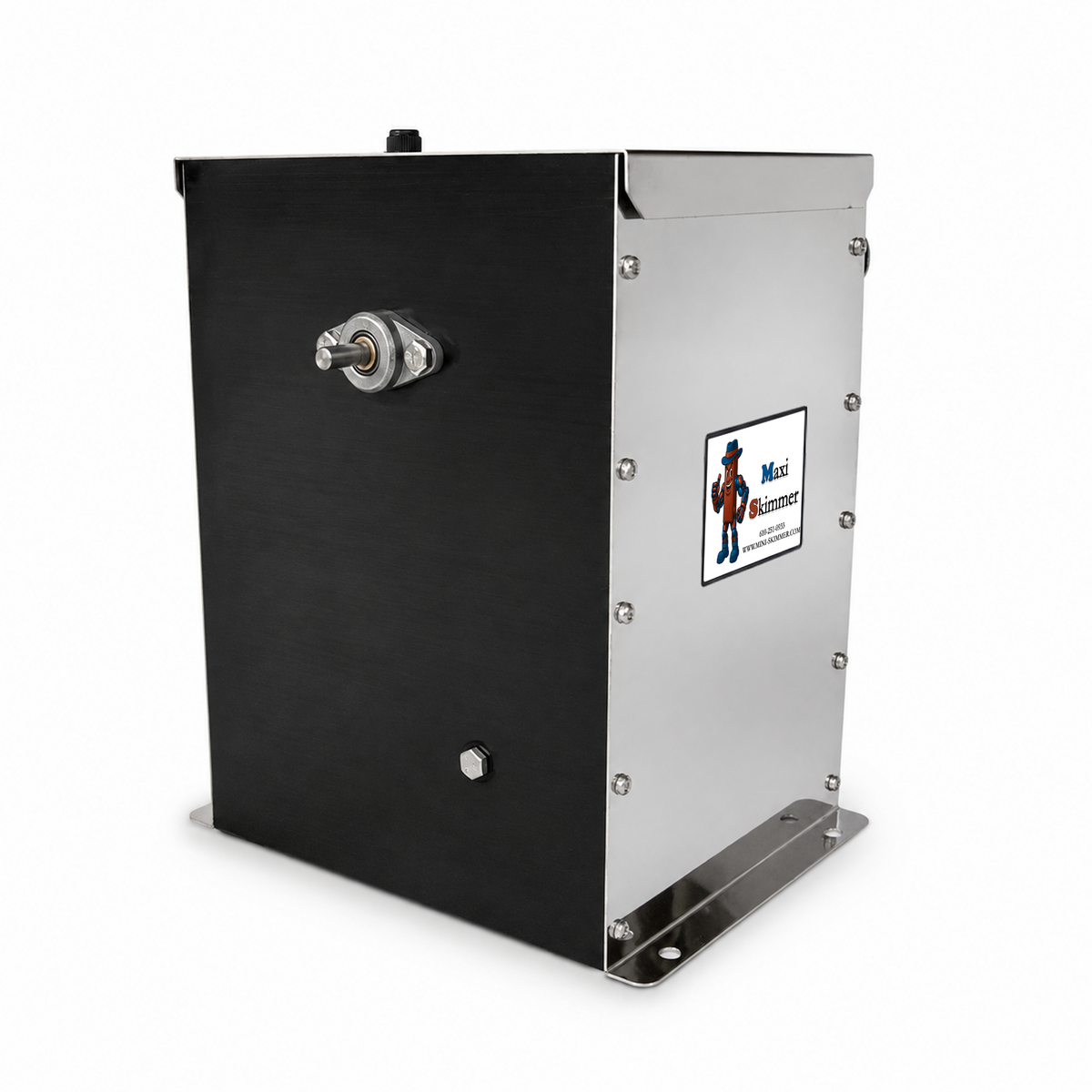

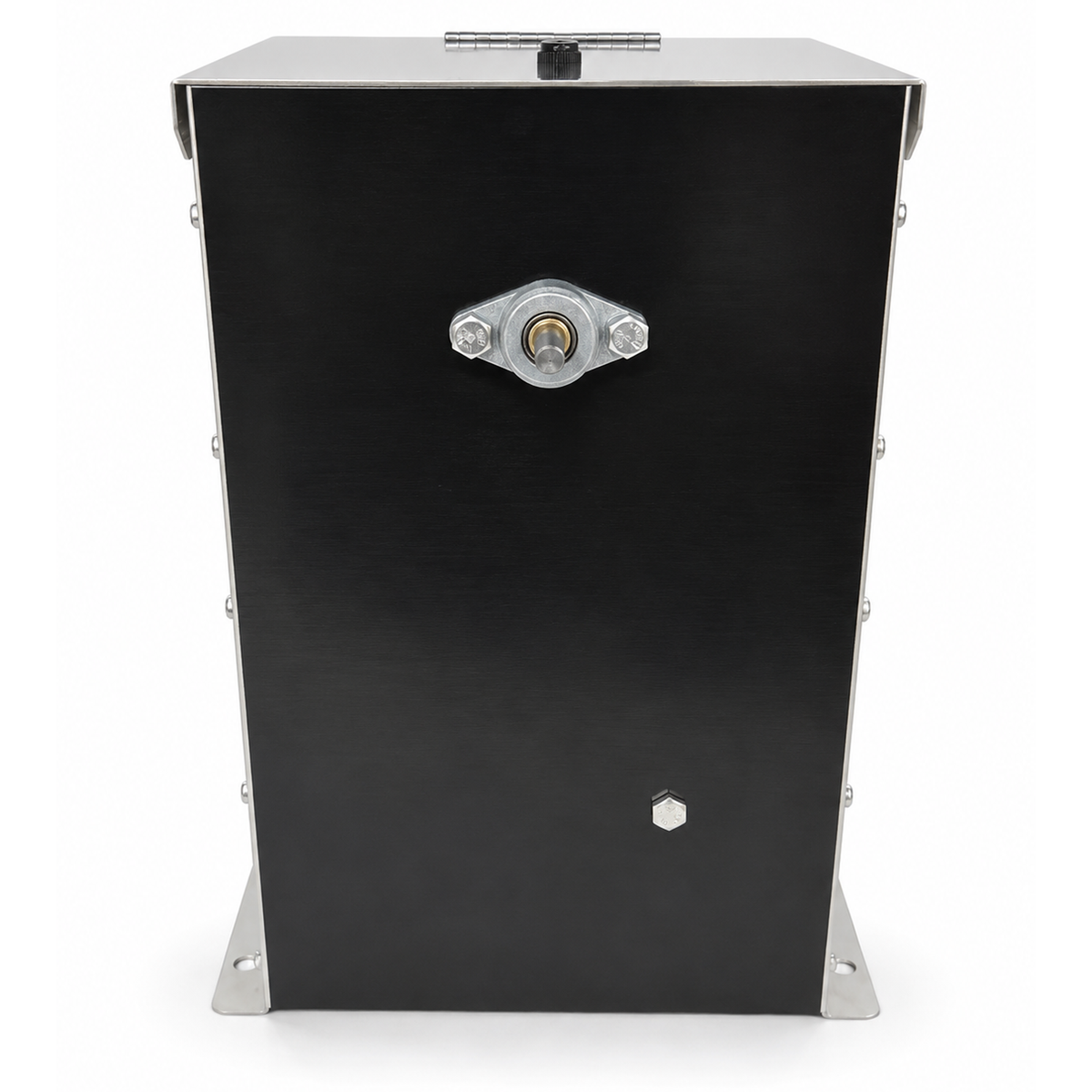

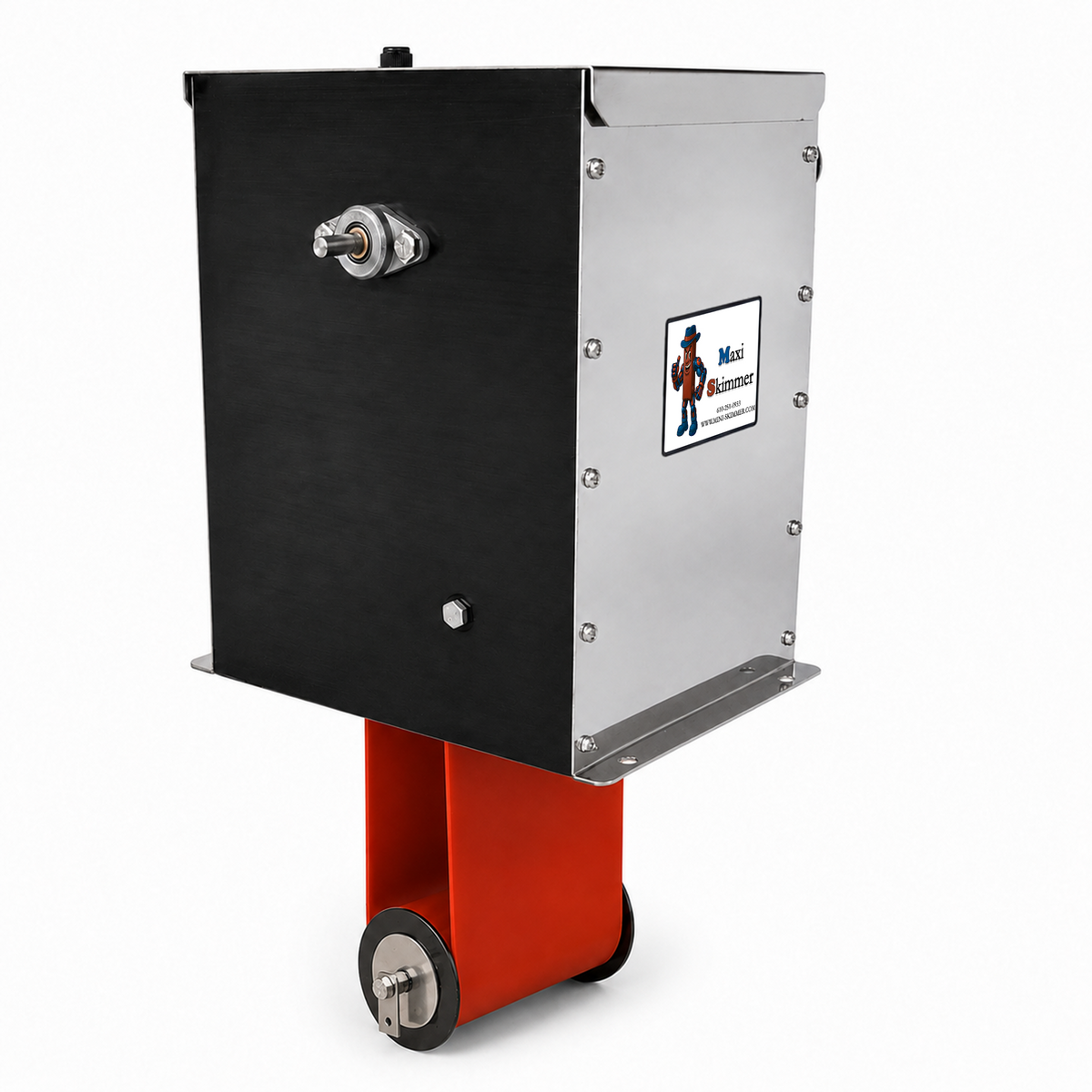

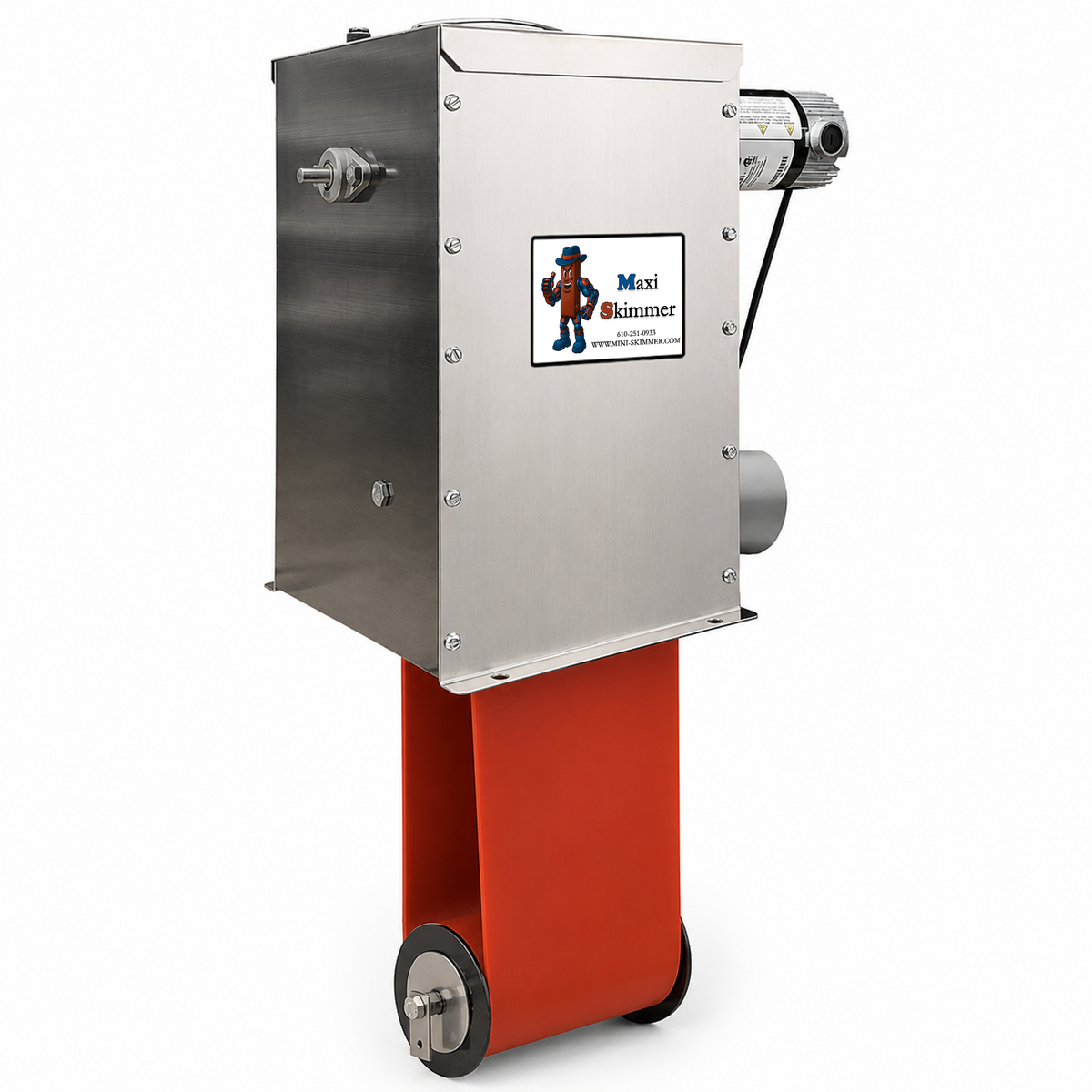

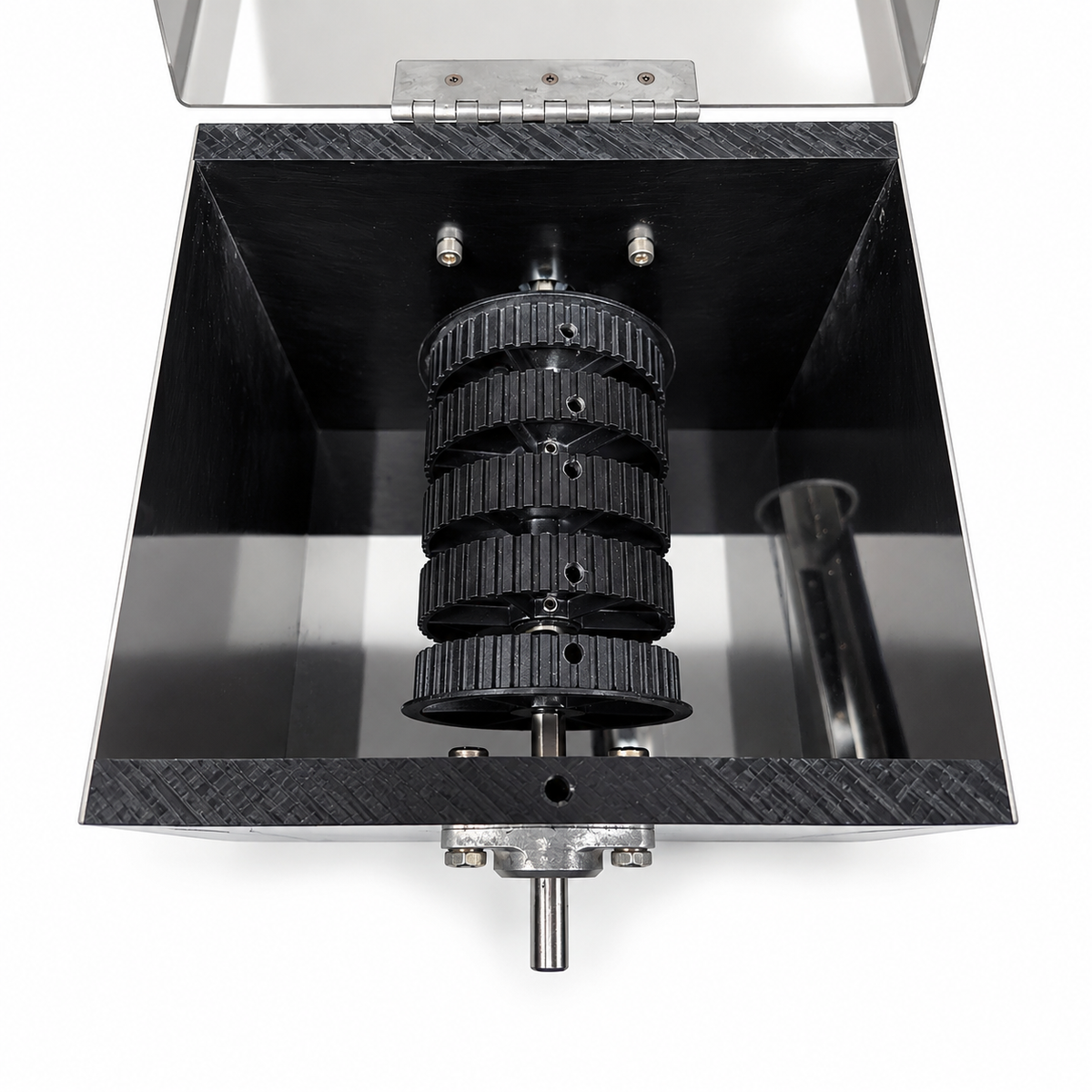

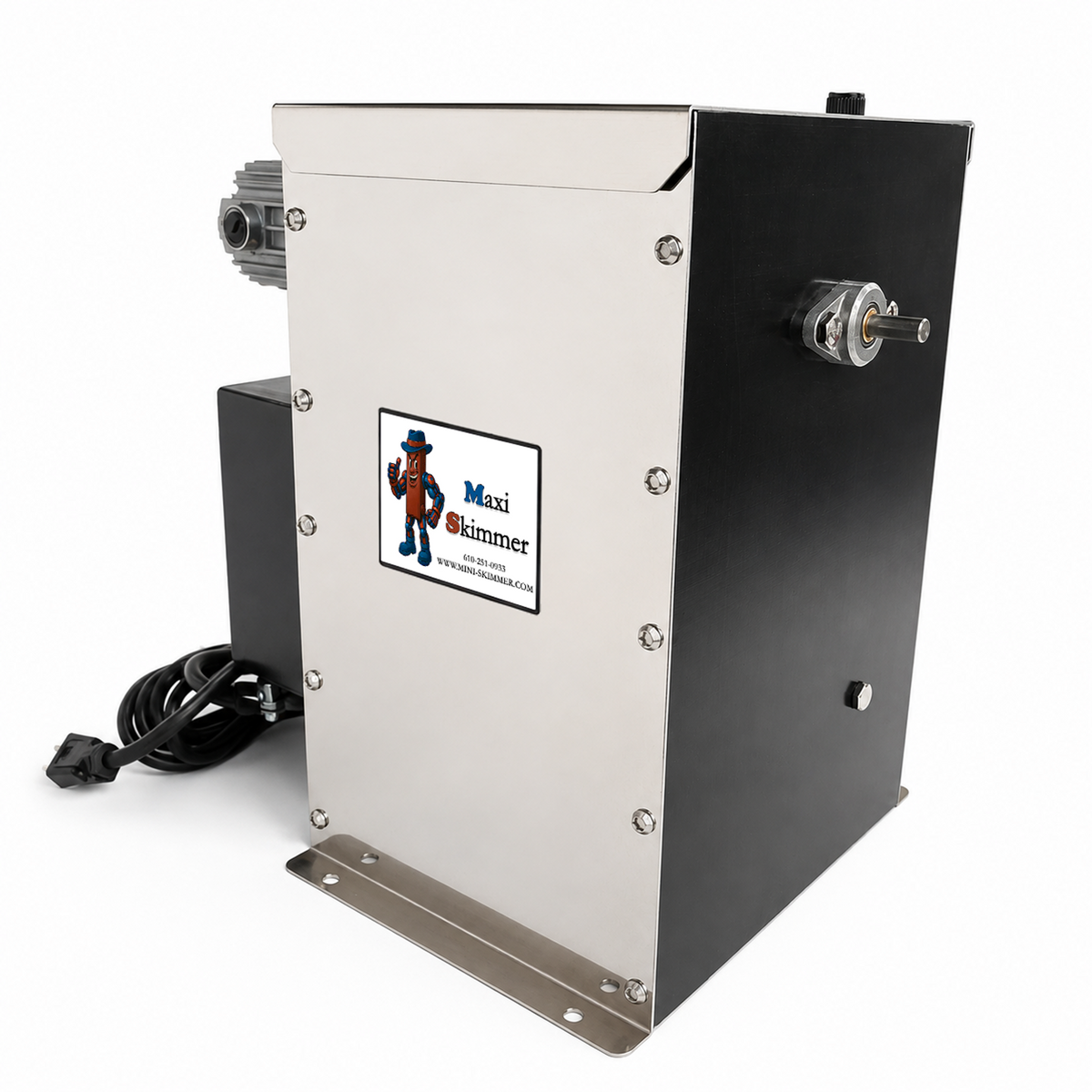

Maxi-Skimmer SSV/5 Flat Poly Belt Oil Skimmer

Variable-Speed Industrial Oil Skimmer

Adjustable, High-Capacity Oil Removal

The Maxi-Skimmer SSV/5 combines a variable-speed drive with a 4 in wide Flat Poly belt for large coolant systems, wastewater tanks, monitoring wells, and other industrial oil-removal applications. Adjust the belt speed from 0 to 93 RPM to match changing operating conditions.

Performance at a Glance

The SSV/5 is designed for applications that require adjustable, continuous-duty skimming with a wide collection belt.

Choose the Correct Reach

Reach is measured from the mounting surface to the bottom of the tail pulley. Select the standard configuration that matches the required operating depth.

Flat Poly Belt Applications

• - Neutral-pH water and metalworking coolant
• - Compatible industrial wastewater applications
• - Monitoring wells and industrial holding tanks
• - Fluid temperatures below 120 degreesF

What Is Included

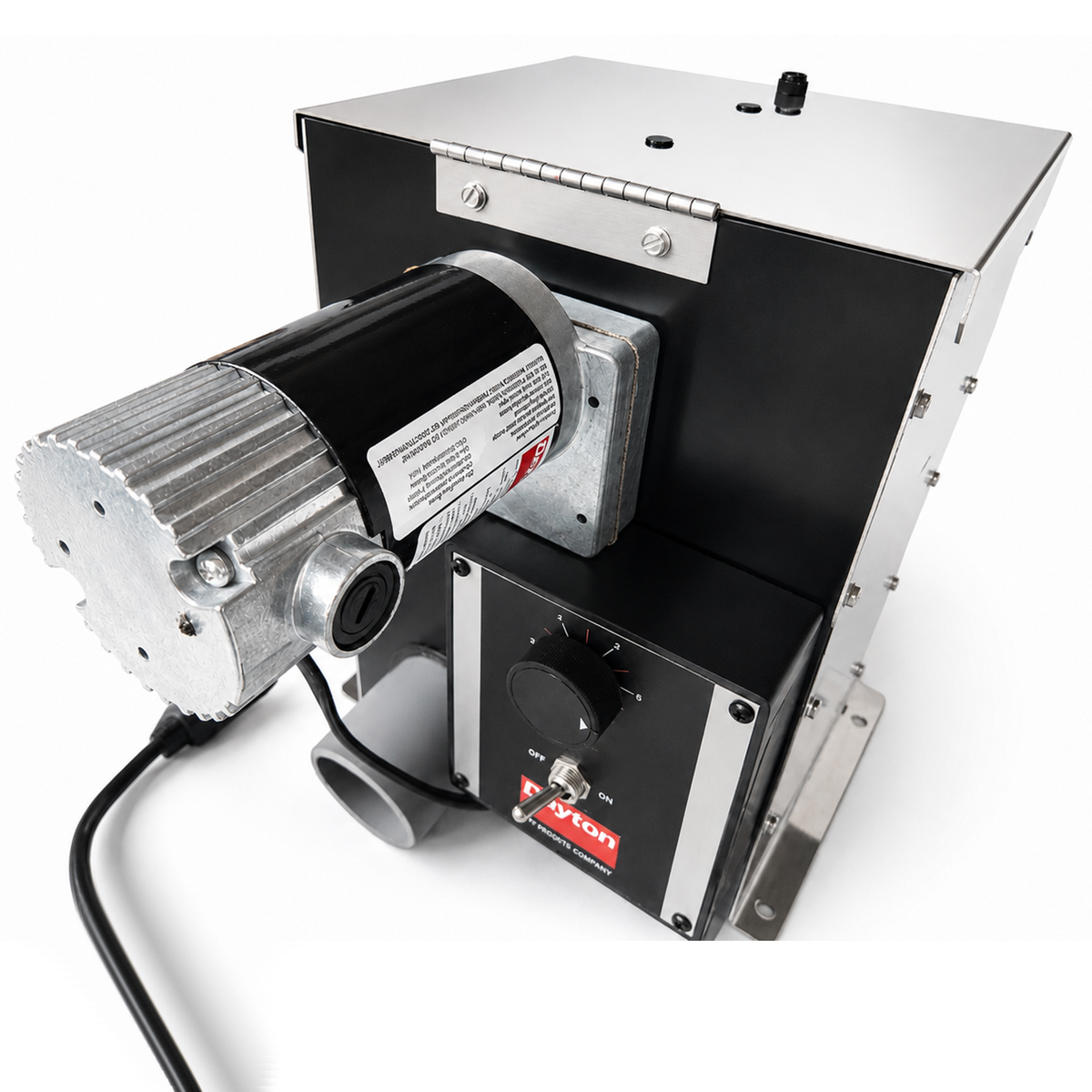

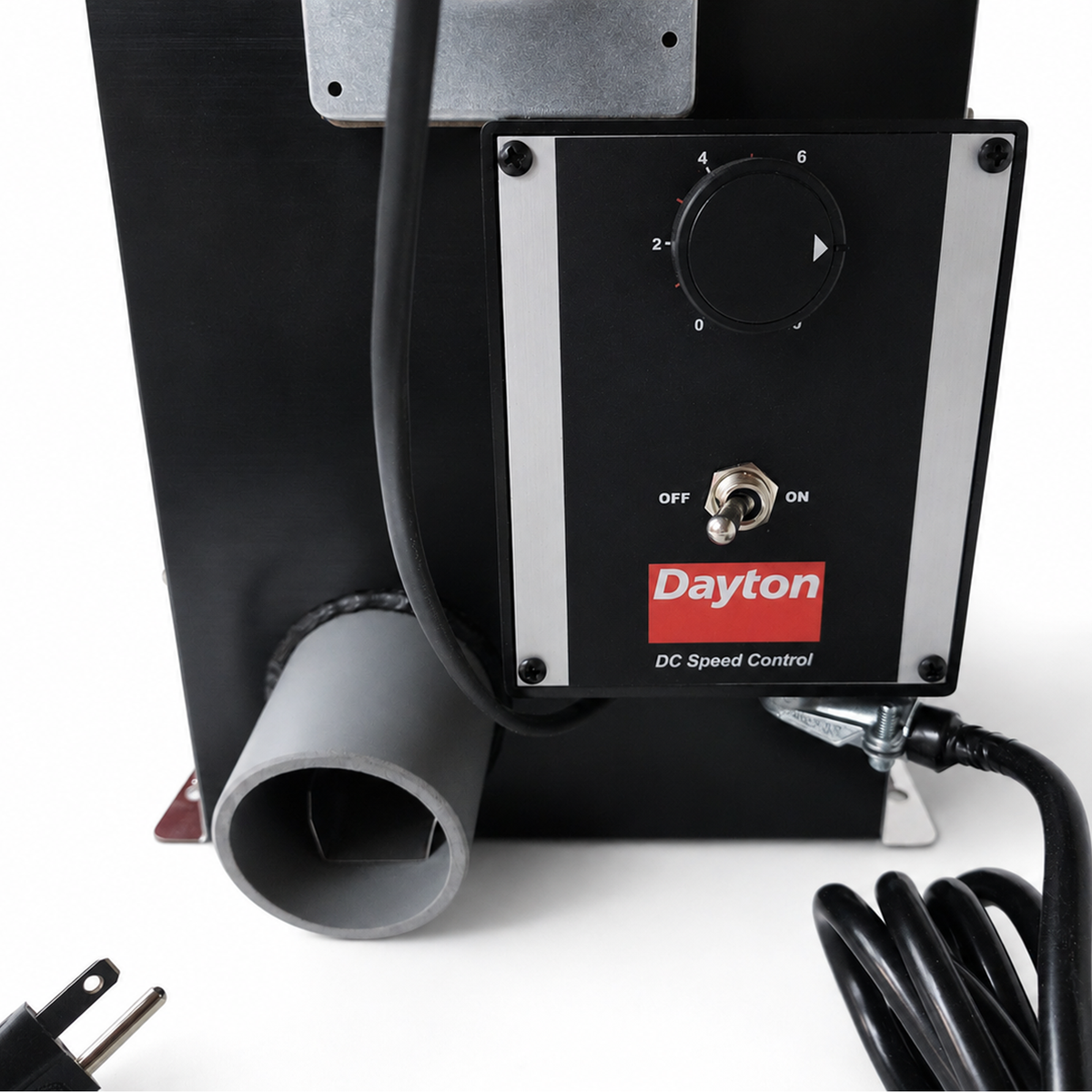

• - SSV/5 skimmer body with variable-speed motor and control

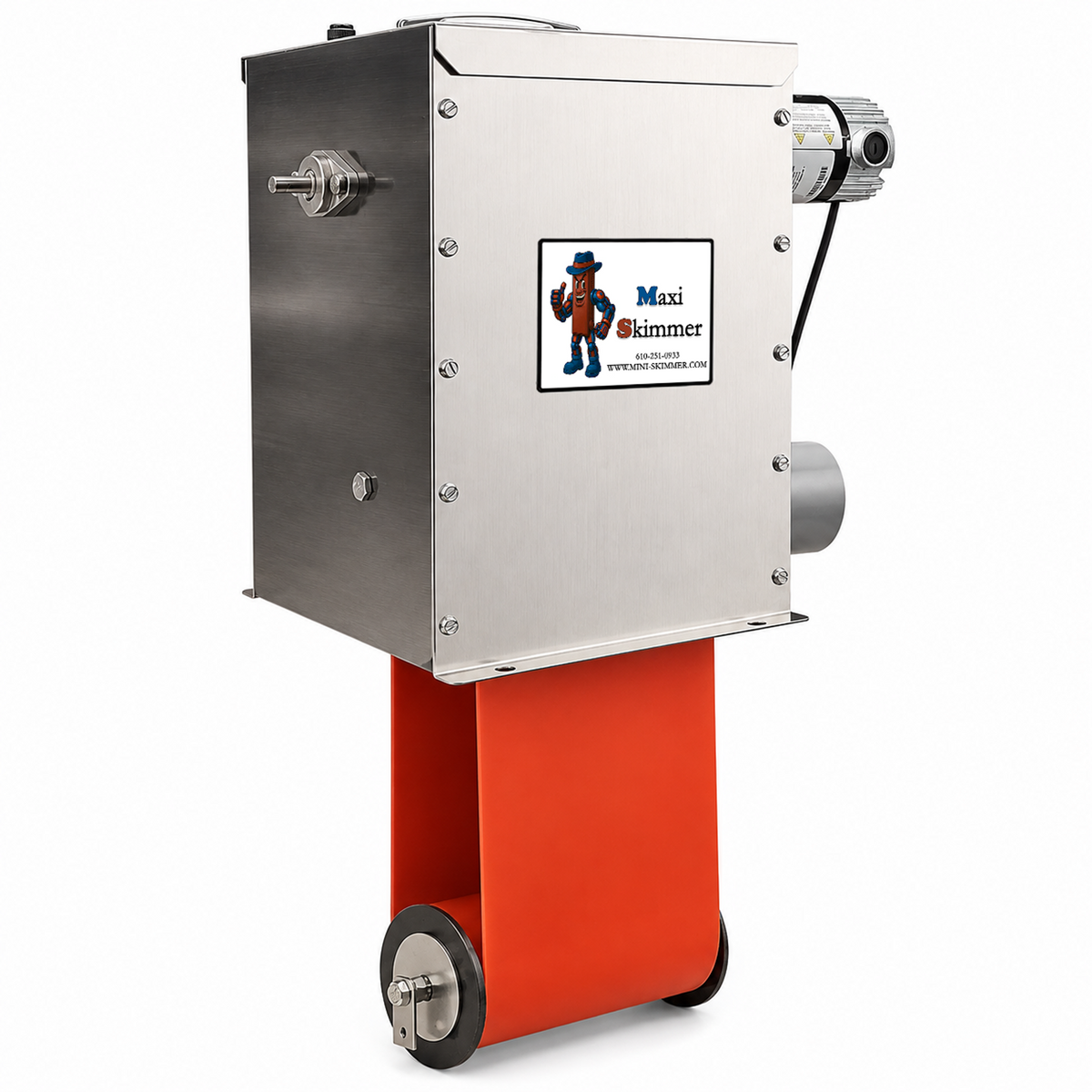

• - 4 in Flat Poly belt in the selected reach
• - Stainless-steel tail pulley and retention chain
• - 3 ft discharge hose kit

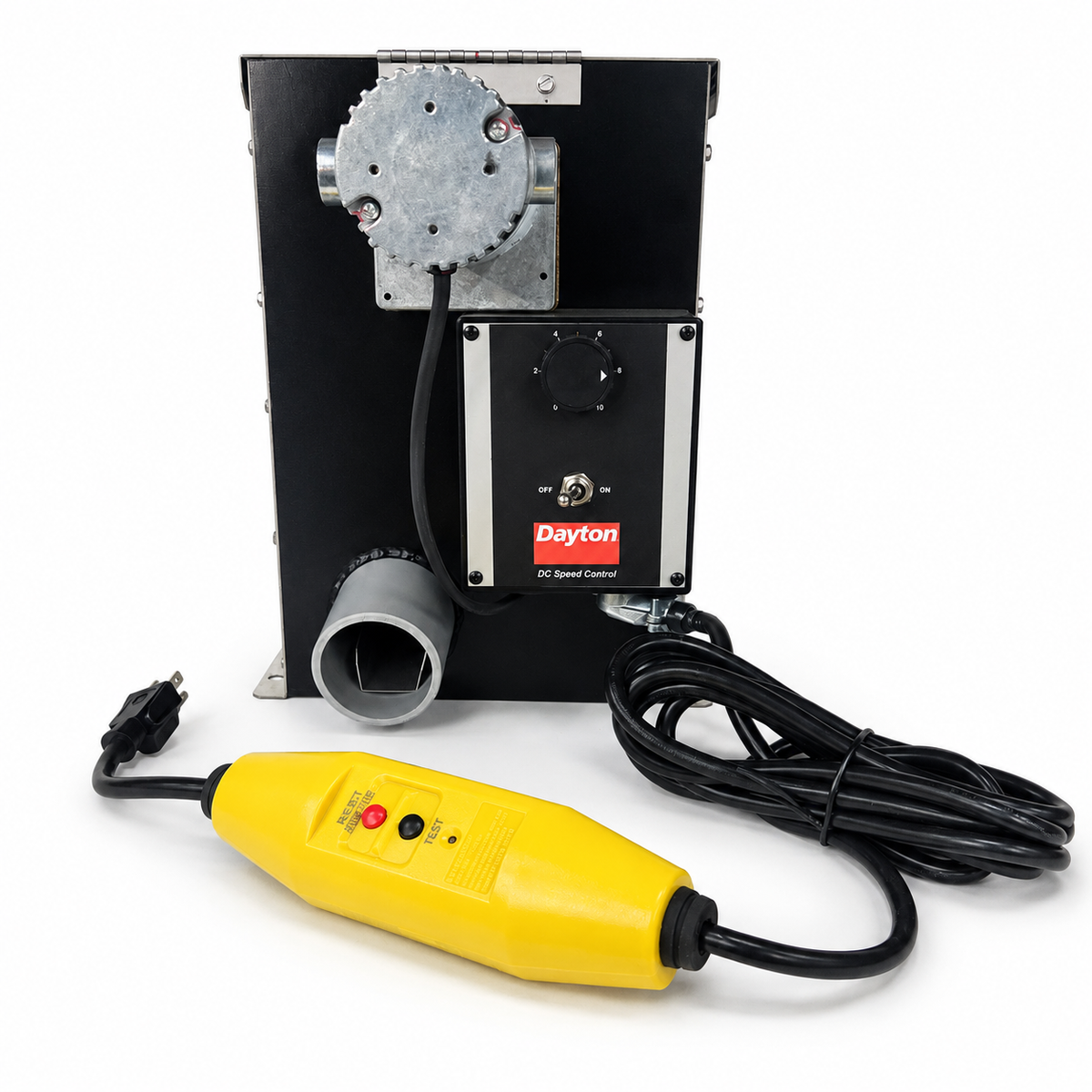

• - 10 ft power cord with in-line GFCI

Not included: The adjustable MAXI-Stand, Wayne P/N 30823, is sold separately.

Before Ordering

Confirm the required reach, available mounting space, fluid temperature, and fluid compatibility before selecting a configuration.

Power requirements are 115-220 V, single phase, 50-60 Hz. Use a grounded GFI/GFCI-protected outlet and never immerse the motor or electrical wiring.
