Mini-Skimmer Stainless Steel Belt Oil Skimmers

Most Wayne-made items ship same or next business day

Reach 8 in 12 in 18 in 24 in

Motor Speed 10 RPM 30 RPM

Selected configuration

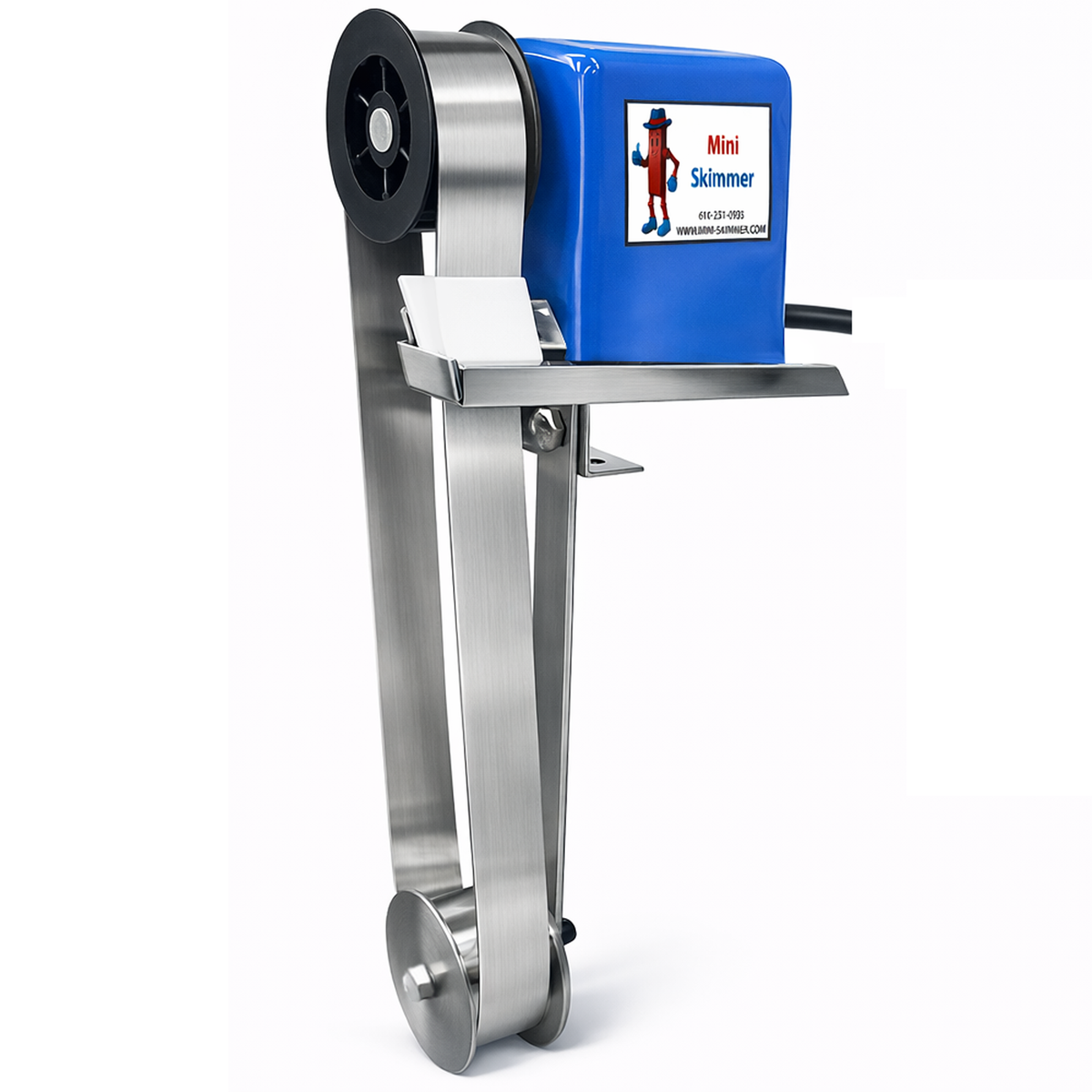

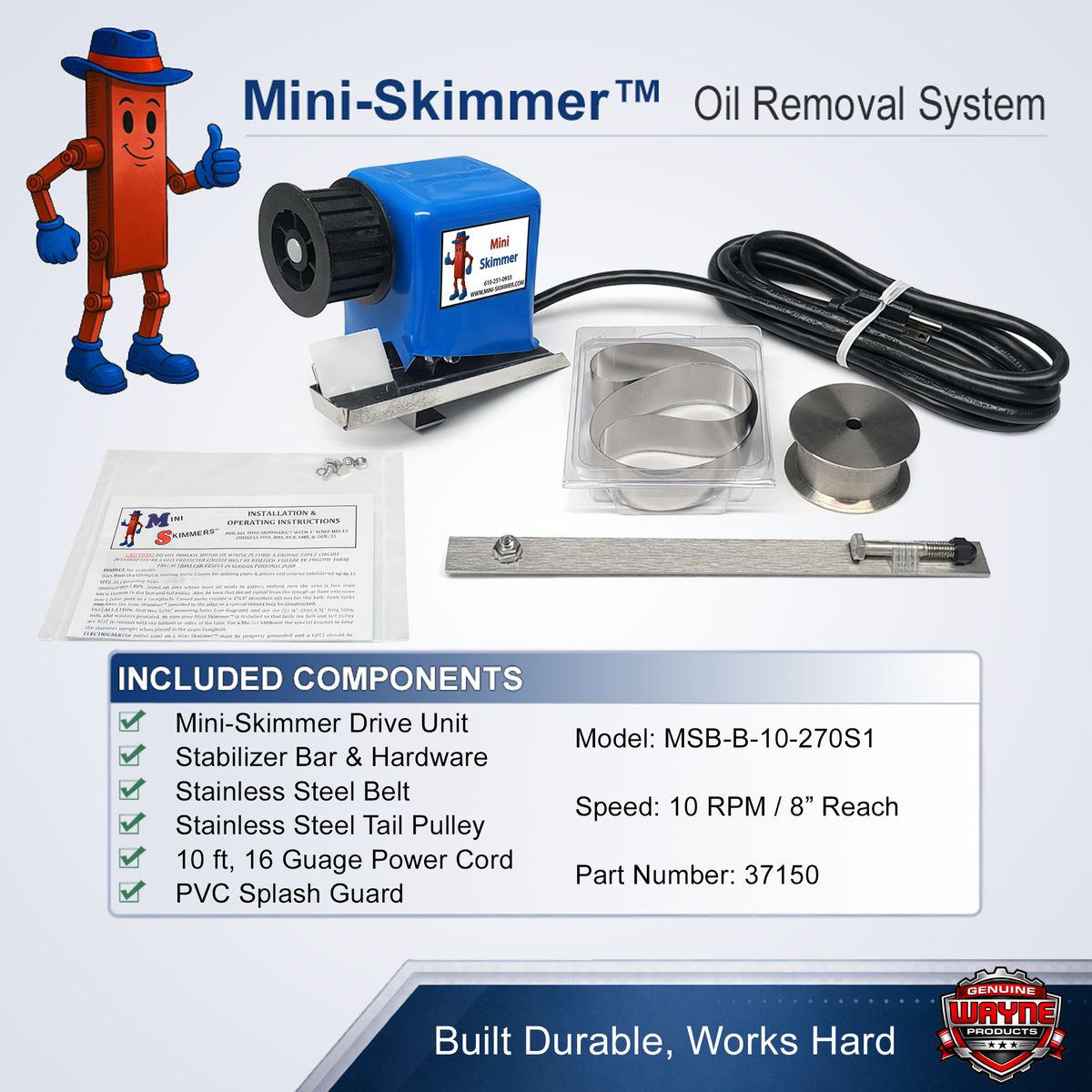

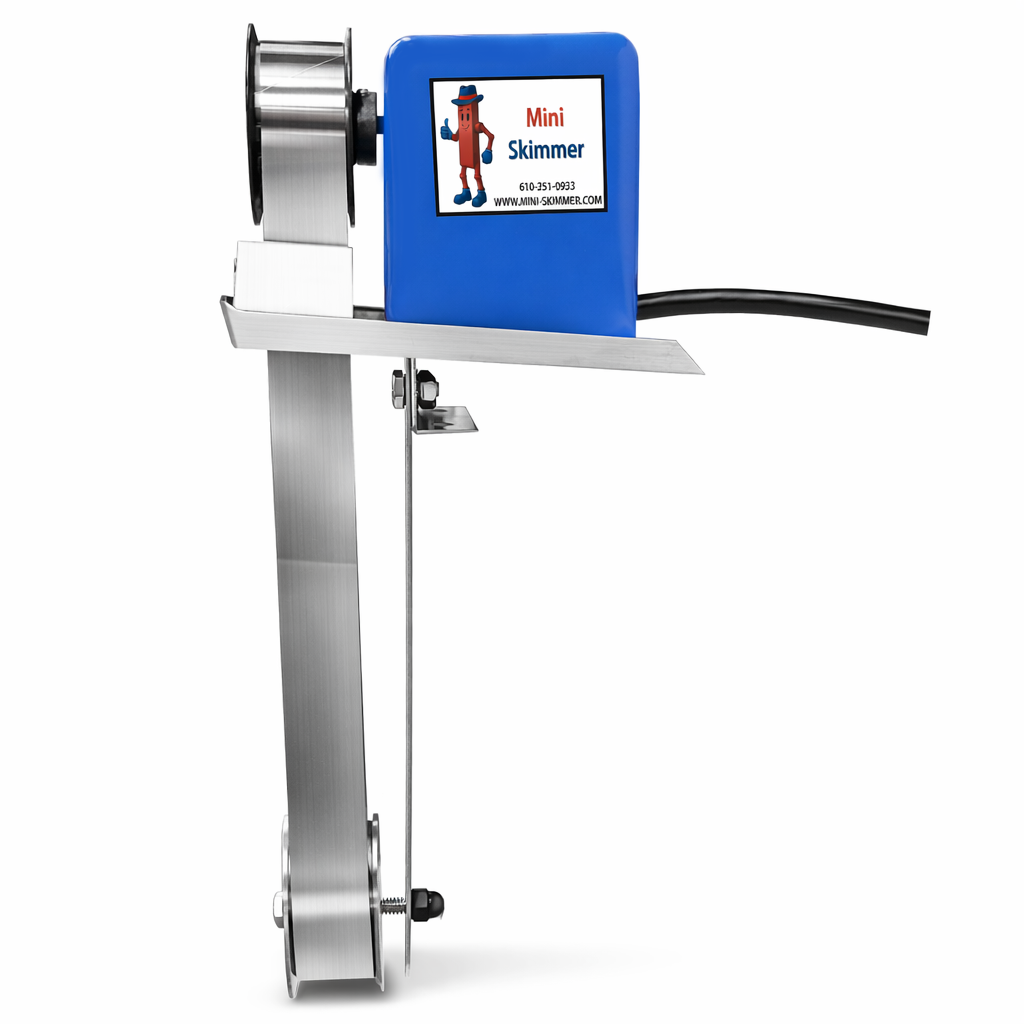

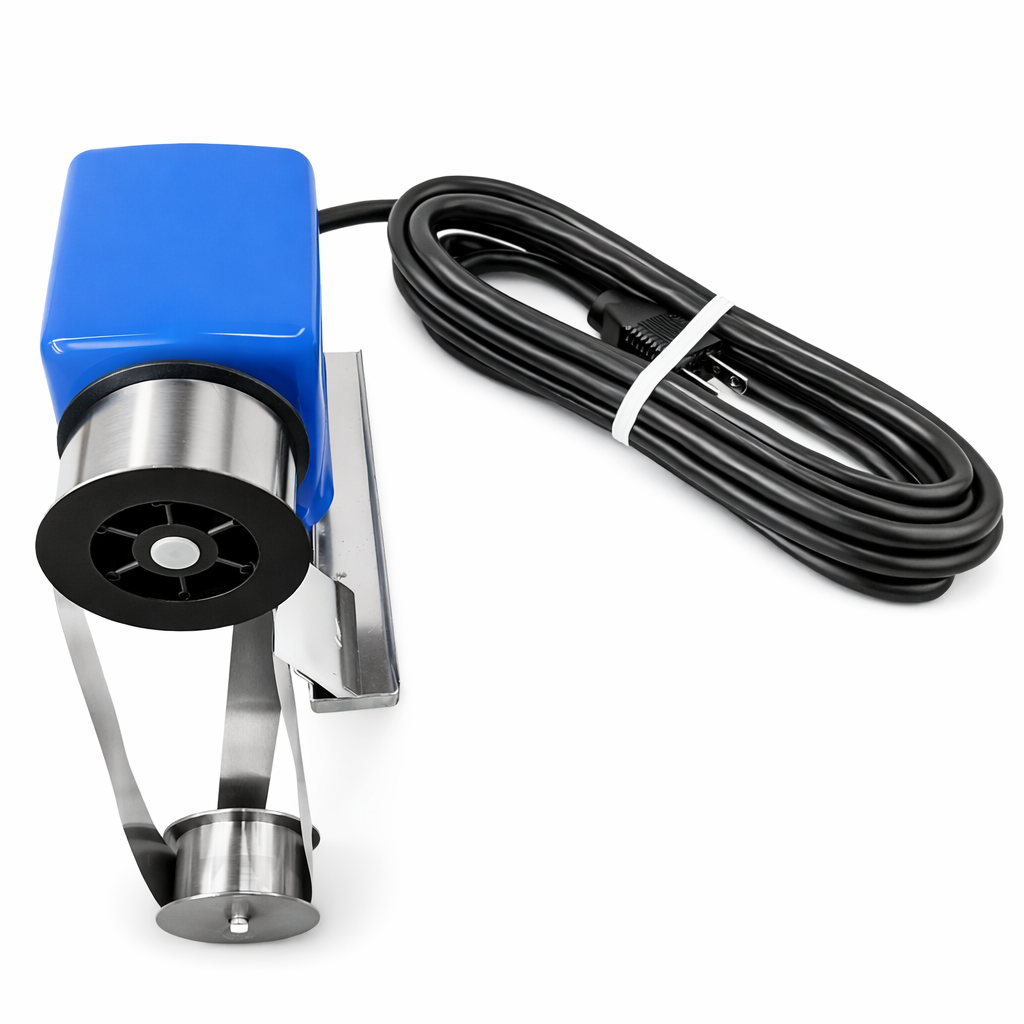

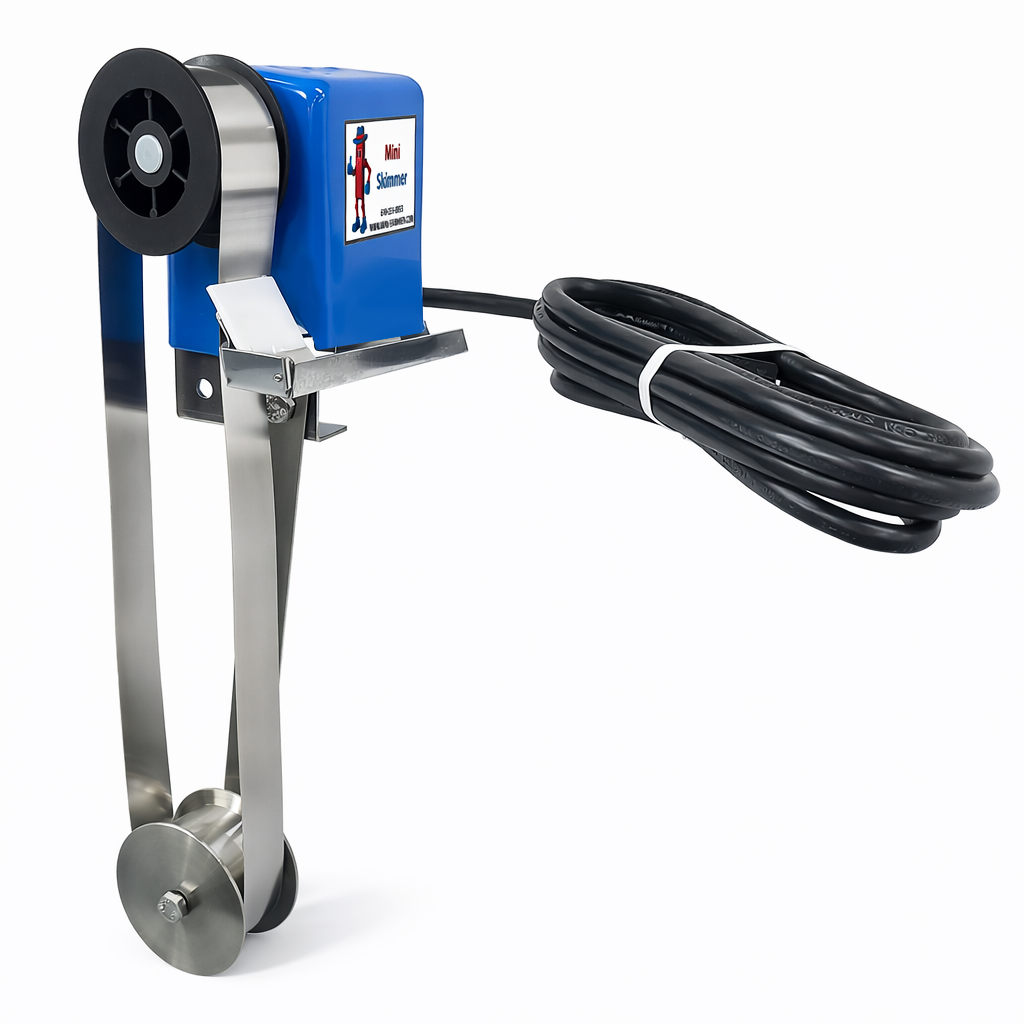

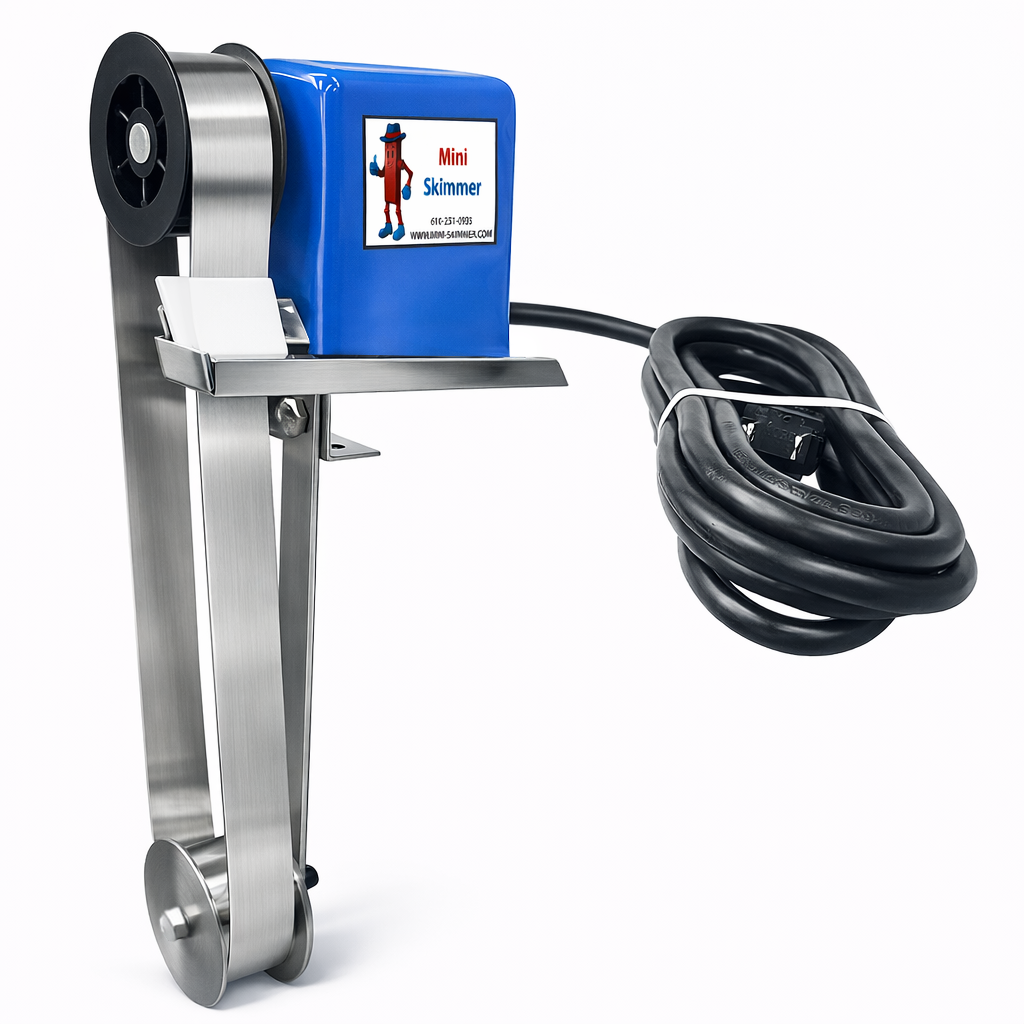

Mini-Skimmer™ stainless-steel-belt oil skimmer — 10 RPM — 8 in reach — 1 in stainless steel belt — Belt ID 270S1 — 27 in circumference.

Part # 37150

$611.00 USD

Sale Sold out

Shipping calculated at checkout.

Stainless Steel Belt Configuration

Built for Hot and Chemically Aggressive Industrial Fluids

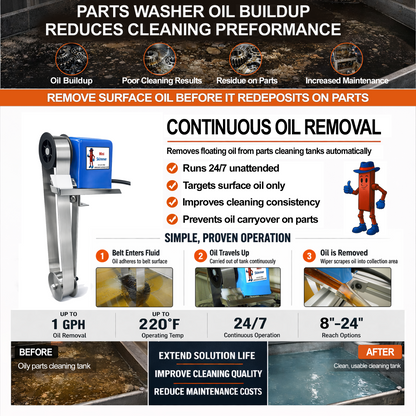

Use a stainless steel belt Mini-Skimmer to remove floating tramp oil where polyurethane belts may not be suitable. These compact units are designed for hot fluids, non-neutral pH, parts-washing solutions, and other demanding industrial applications.

Select the Reach and Motor Speed

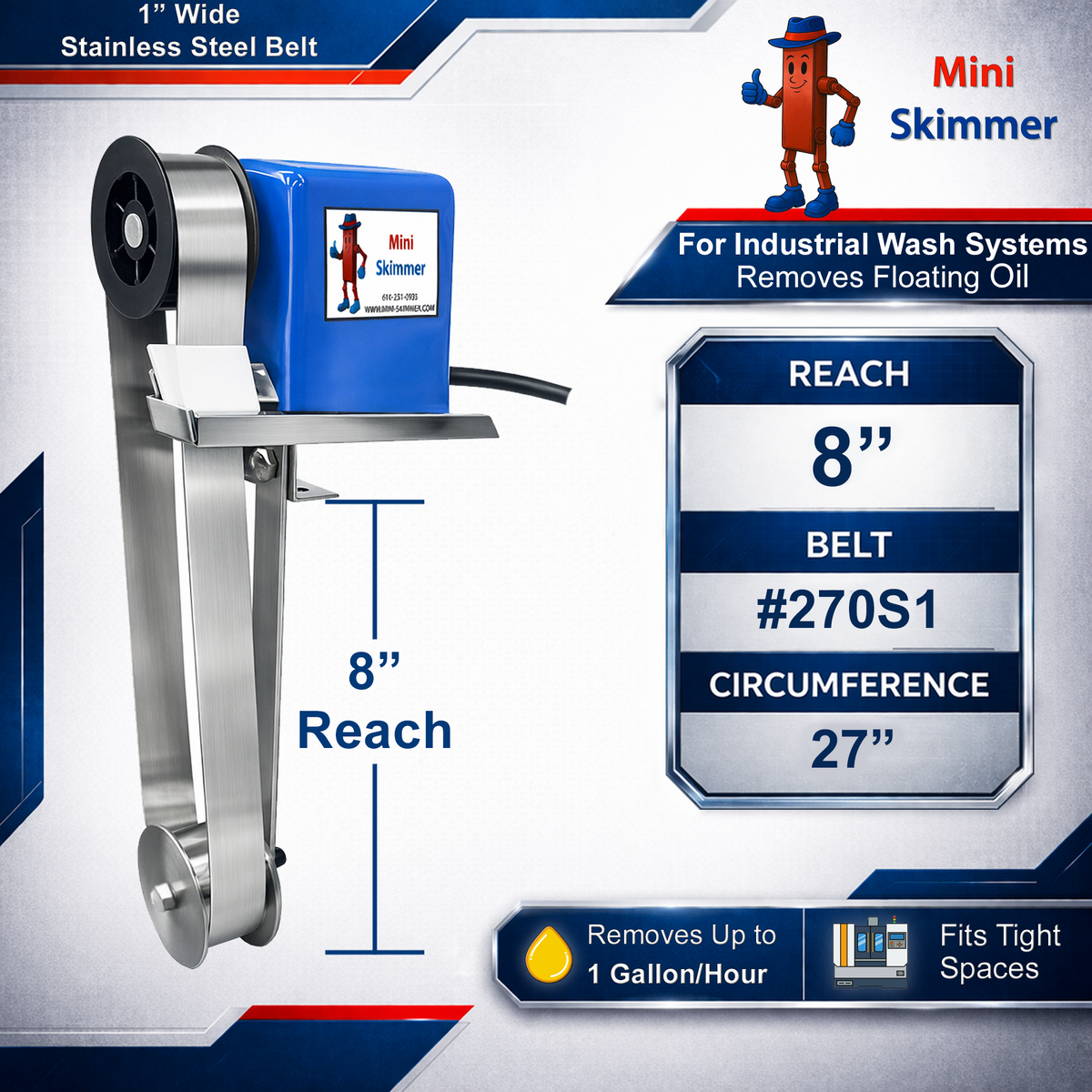

Reach is measured from the bottom of the mounting bracket to the bottom of the lower tail pulley. Match the required reach to the oil level in the sump or tank, then select the appropriate motor speed.

Reach 8 in

Belt 1 in stainless steel / 270S1

10 RPM Wayne P/N 37150

30 RPM Wayne P/N 37151

Reach 12 in

Belt 1 in stainless steel / 360S1

10 RPM Wayne P/N 37160

30 RPM Wayne P/N 37161

Reach 18 in

Belt 1 in stainless steel / 480S1

10 RPM Wayne P/N 37170

30 RPM Wayne P/N 37171

Reach 24 in

Belt 1 in stainless steel / 600S1

10 RPM Wayne P/N 37180

30 RPM Wayne P/N 37181

Configuration note: The Wayne part numbers above identify the standard 115 V, single-phase, 60 Hz models. Longer reaches and other motor configurations are usually available by quote.

When to Choose Stainless Steel

Suitable Fluid Conditions

Hot fluids up to 220 degreesF
Acidic, alkaline, or otherwise non-neutral fluids
Chemically aggressive coolants and wash solutions
Applications where polyurethane belt life may be reduced

Common Industrial Applications

Parts washers and wash tanks
Machine-tool and CNC coolant sumps
Wastewater surfaces
Industrial holding tanks and reservoirs

Performance and Construction

10 RPM Collection Rate Approximately 1 qt/hr

30 RPM Collection Rate Approximately 1 gal/hr

Belt Width 1 in

Drive Pulley Corrosion-resistant glass-filled nylon

Tail Pulley Stainless steel

Scraper UHMW bearing-grade material

Mounting Compact drive unit with simple nut-and-bolt installation

Unit Warranty One year from shipment

Belt Warranty 90 days for manufacturing defects

Country of Origin Made in the USA

Performance note: Collection rates are approximate. Actual performance depends on the oil, fluid conditions, surface activity, and the amount of oil reaching the belt.
