Mini-Skimmer T.S. Tube Oil Skimmer

Most Wayne-made items ship same or next business day

Tube Reach 8 in 12 in

Motor Speed 10 RPM 30 RPM

Selected configuration

Mini-Skimmer™ T.S. tube oil skimmer — 10 RPM — 8 in reach — includes weighted chain, 2 ft discharge tube, and in-line GFI power cord.

Part # MSTS-10-8

$496.00 USD

Sale Sold out

Shipping calculated at checkout.

Side-Access Tube Oil Skimmer

Reach Oil in Tight, Enclosed, or Hard-to-Access Sumps

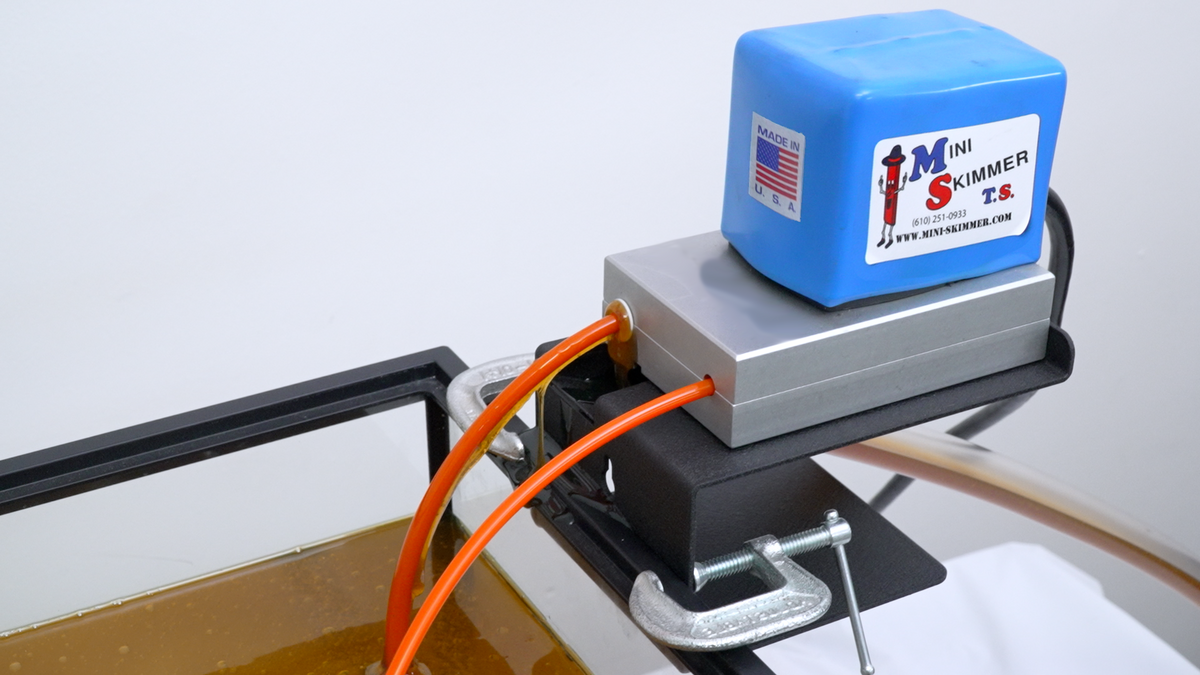

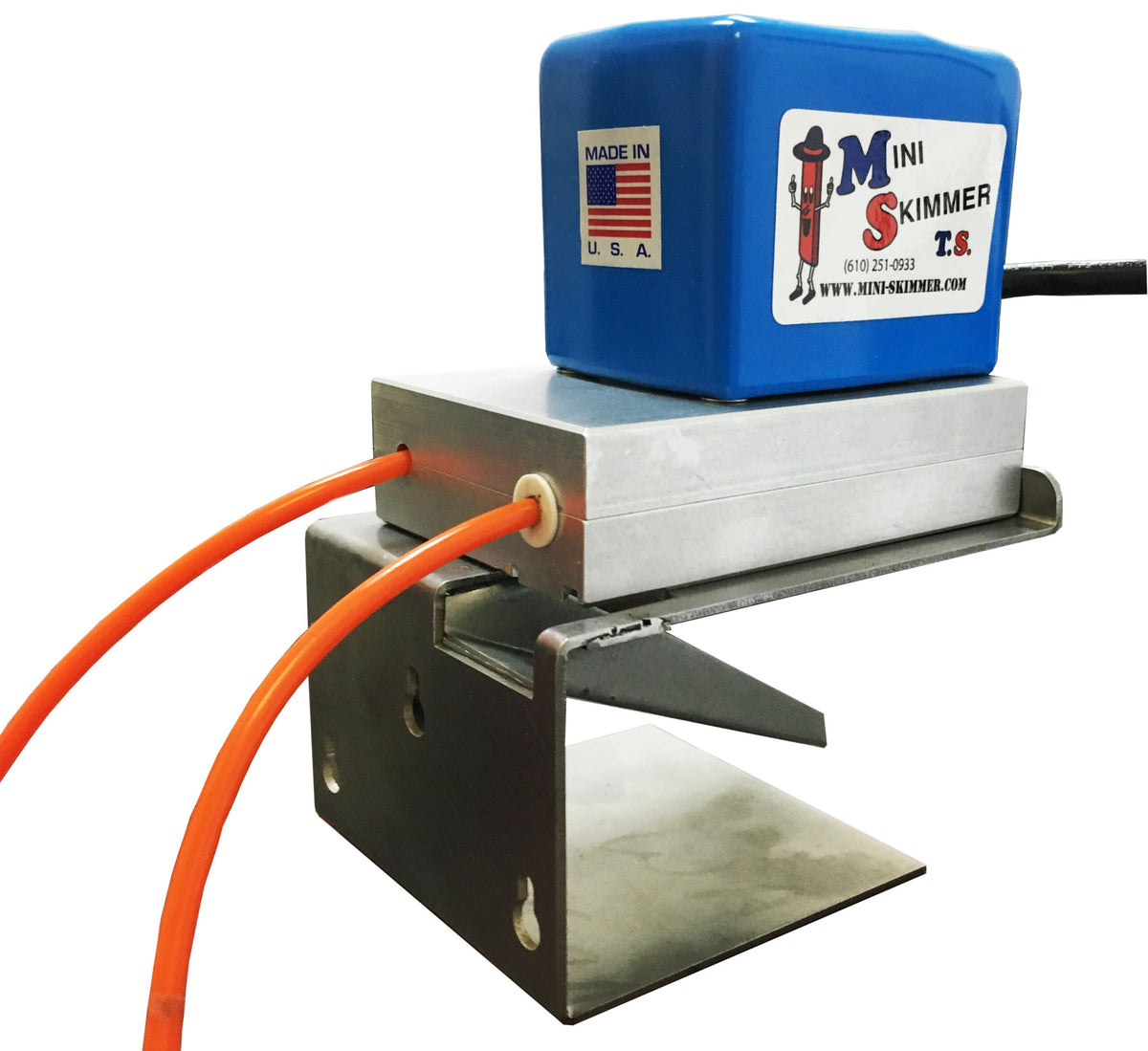

Mini-Skimmer T.S. tube-style oil skimmers remove floating tramp oil from areas where a conventional belt-style skimmer may not fit. The tube-style configuration requires only a small access opening and can collect oil from the side of a tank, beneath covers, or across elongated liquid surfaces.

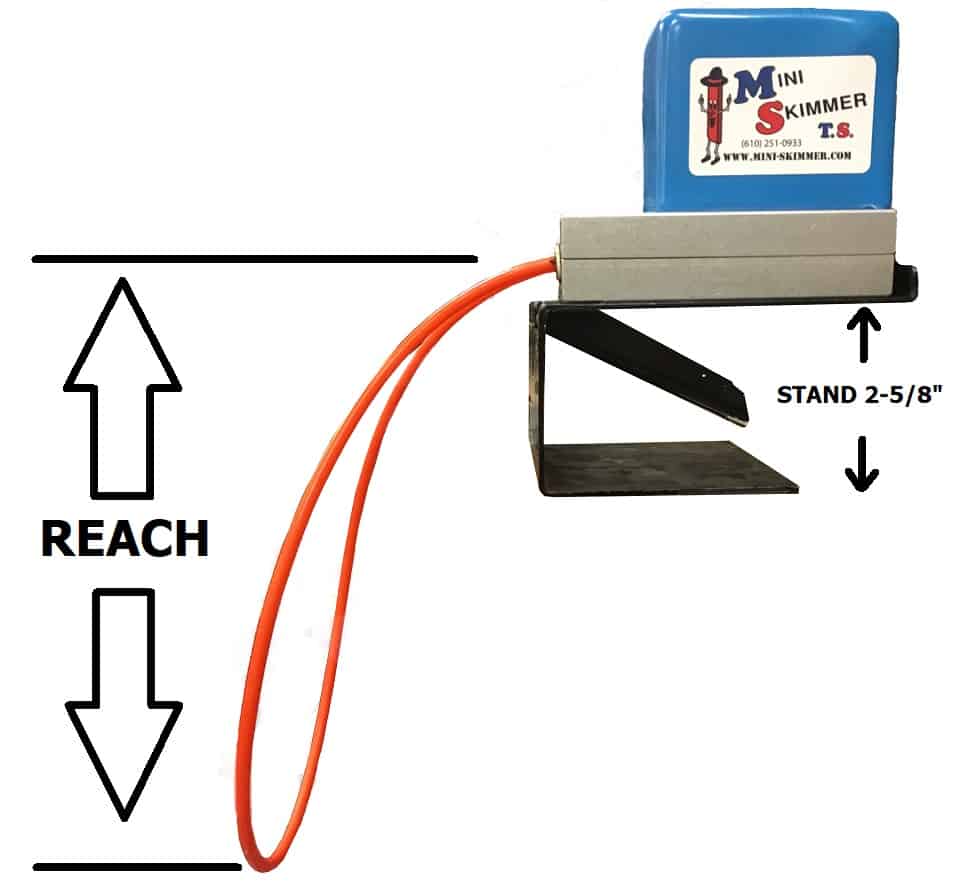

Standard models are available with an 8-inch or 12-inch reach and a 10 RPM or 30 RPM motor. Select the reach and motor speed that match the sump geometry and required collection rate.

Available Configurations

Model MSTS-10-8

Reach 8 inches

Motor Speed 10 RPM

Skimmer Tube Weighted polyurethane

Model MSTS-30-8

Reach 8 inches

Motor Speed 30 RPM

Skimmer Tube Weighted polyurethane

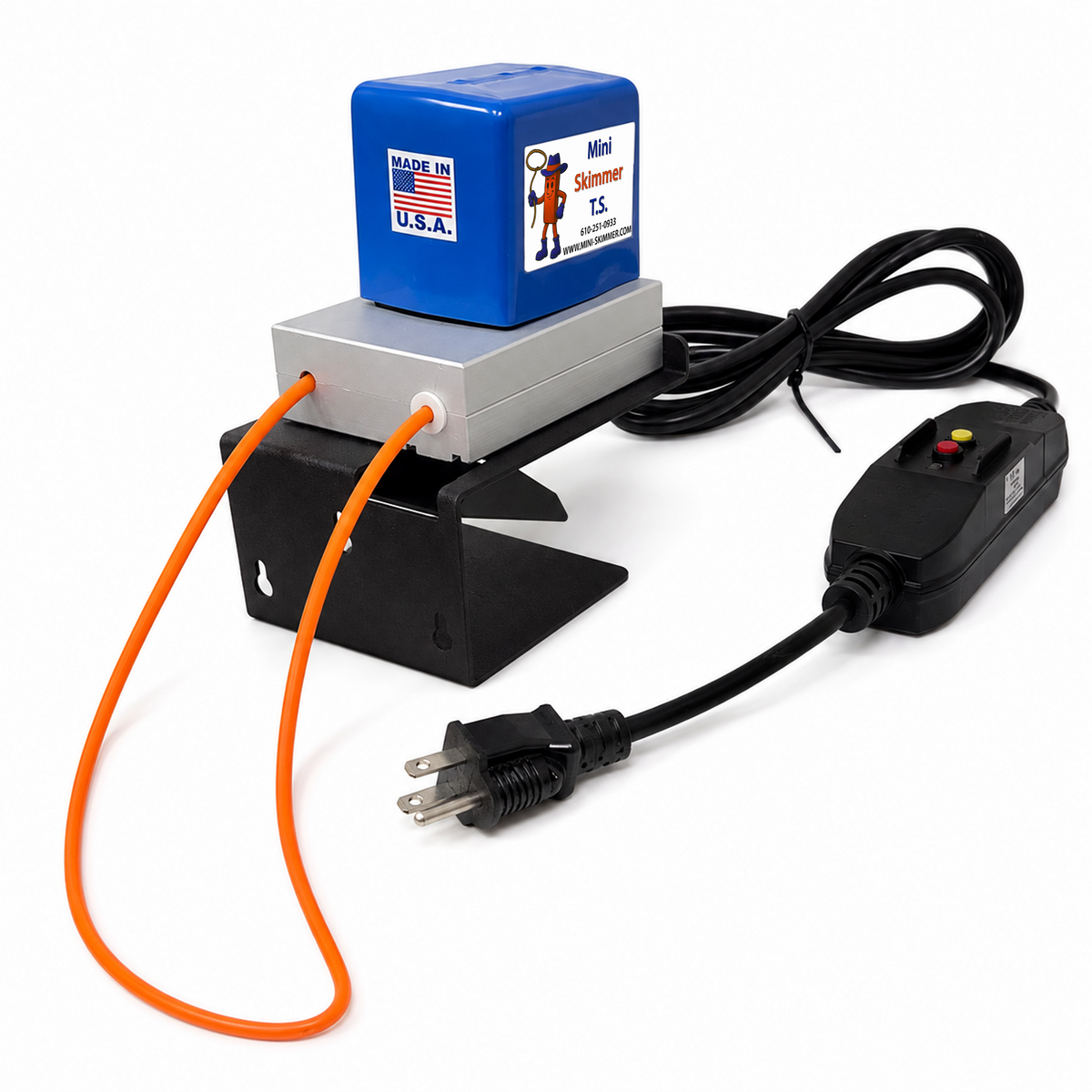

Model MSTS-10-12

Reach 12 inches

Motor Speed 10 RPM

Skimmer Tube Weighted polyurethane

Model MSTS-30-12

Reach 12 inches

Motor Speed 30 RPM

Skimmer Tube Weighted polyurethane

Side Access and Mounting

Suitable Access Conditions

- Tight or enclosed sumps
- Small tank access openings
- Areas beneath covers
- Applications with limited overhead clearance
- Elongated coolant or solution surfaces

Mounting Options

- Mount on a horizontal surface
- Bolt to the side of a tank
- Suspend using suitable hooks or clamps
- Mounting nuts and bolts are supplied; hooks and clamps are not included

Performance and Construction

Oil Removal Rate
Up to approximately 1/2 gallon per hour

Operating Duty
Continuous duty

Maximum Temperature
120 degreesF

Housing
Anodized 6061 aluminum

Scraper
Heat- and corrosion-resistant ceramic

Skimmer Tube
0.182-inch OD polyurethane

Application
Oil removal from water-based solutions

Warranty
One-year manufacturer's warranty

Country of Origin
Made in the USA

Actual collection performance depends on motor speed, oil characteristics, operating conditions, and application.

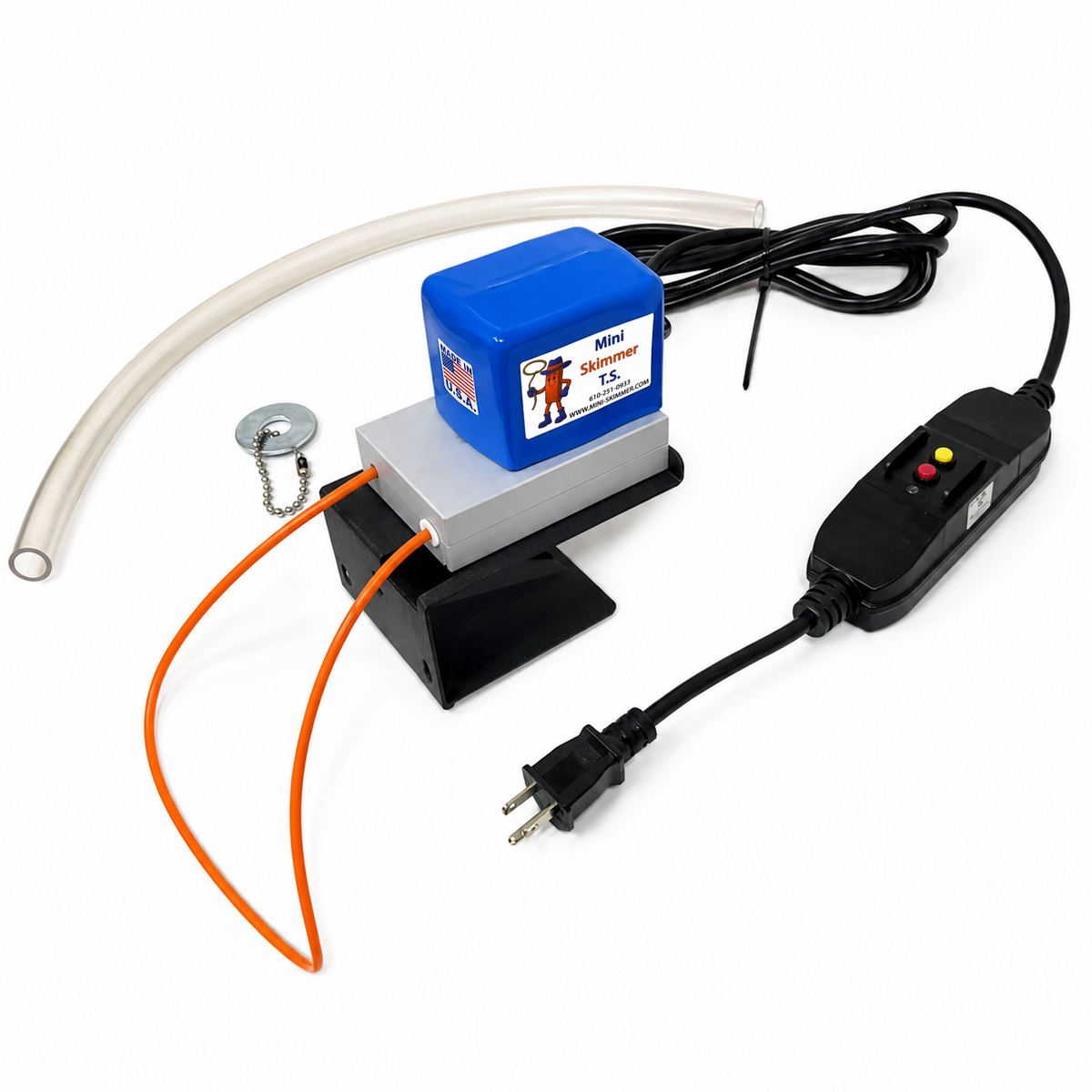

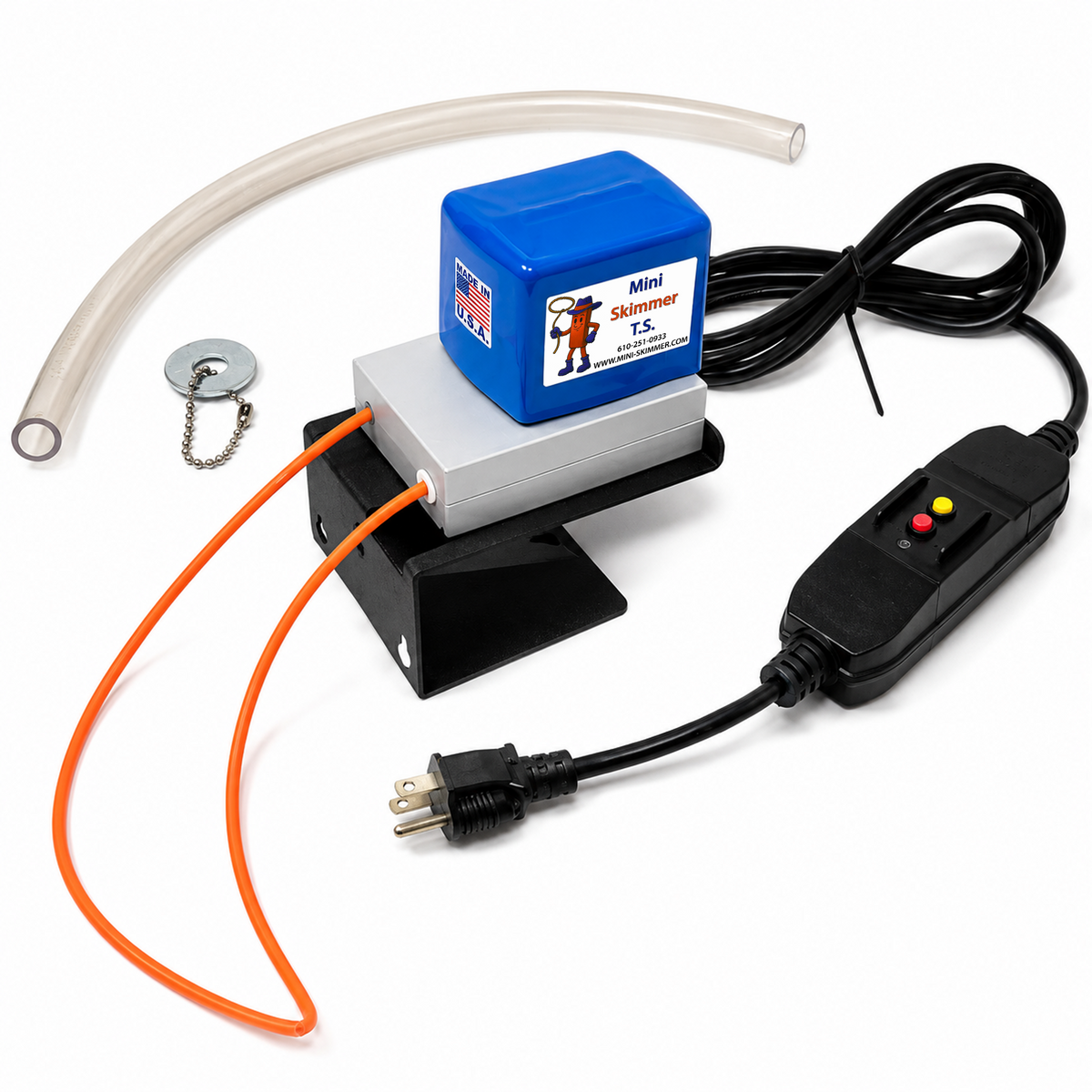

What's Included

Skimmer Components

- Mini-Skimmer T.S. tube-style skimmer unit
- Selected 8-inch or 12-inch polyurethane skimmer tube
- Adjustable mounting frame
- Tube-weight washer

Connections and Hardware

- 2 ft polyvinyl discharge tube
- 10 ft, three-prong power cord with in-line GFI
- Mounting nuts and bolts

Installation and Operating Notes

- Install the tube-weight washer as directed and keep the skimmer tube clear of tank obstructions.
- Connect the unit to a properly grounded electrical supply using the supplied GFI-equipped cord.
- Do not immerse the motor, electrical cord, or wiring.
- Confirm that the selected reach and mounting position allow the tube to move freely across the liquid surface.
