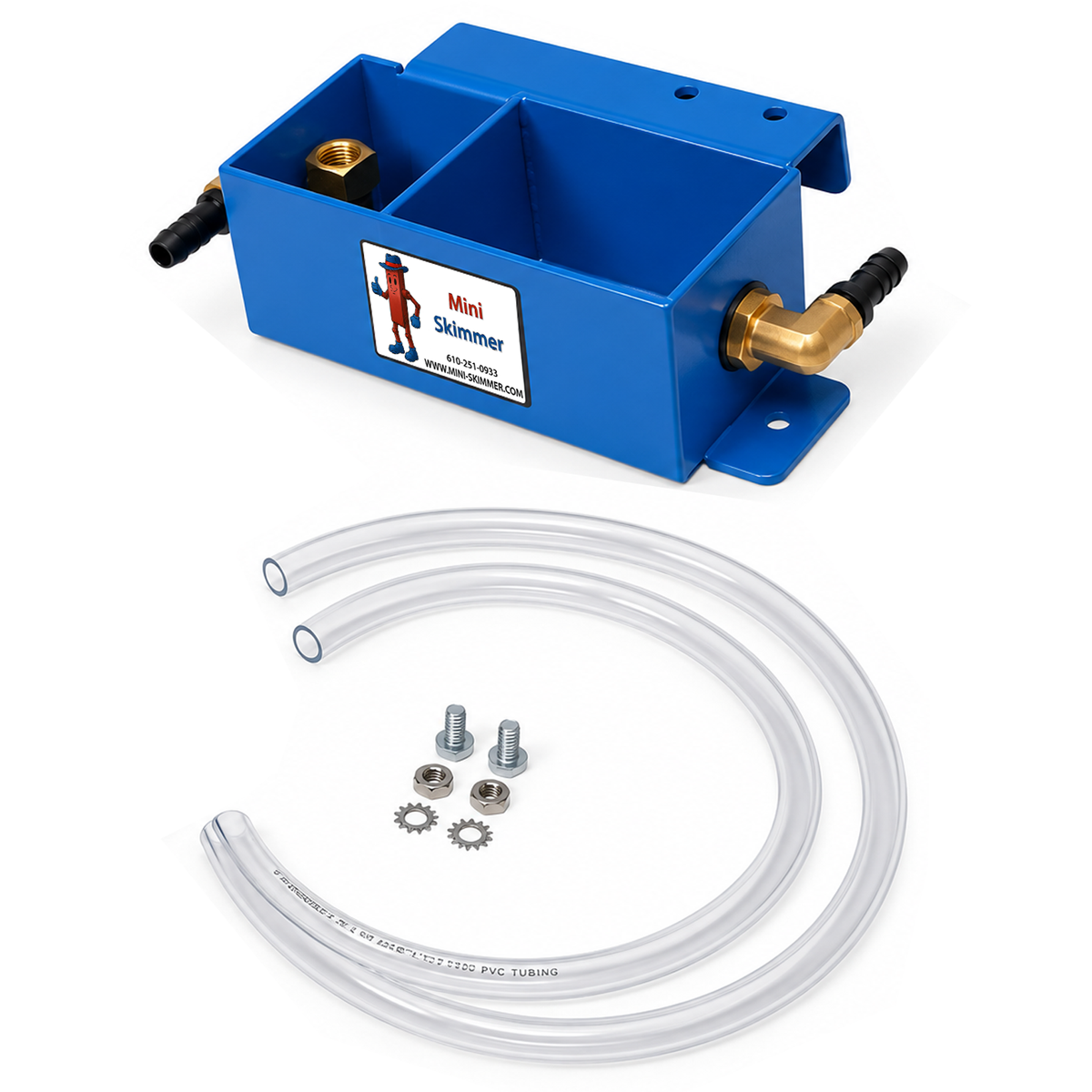

• Mini-Sep Diverter Kit components including separator, clear hoses, bolts, nuts and lock washers

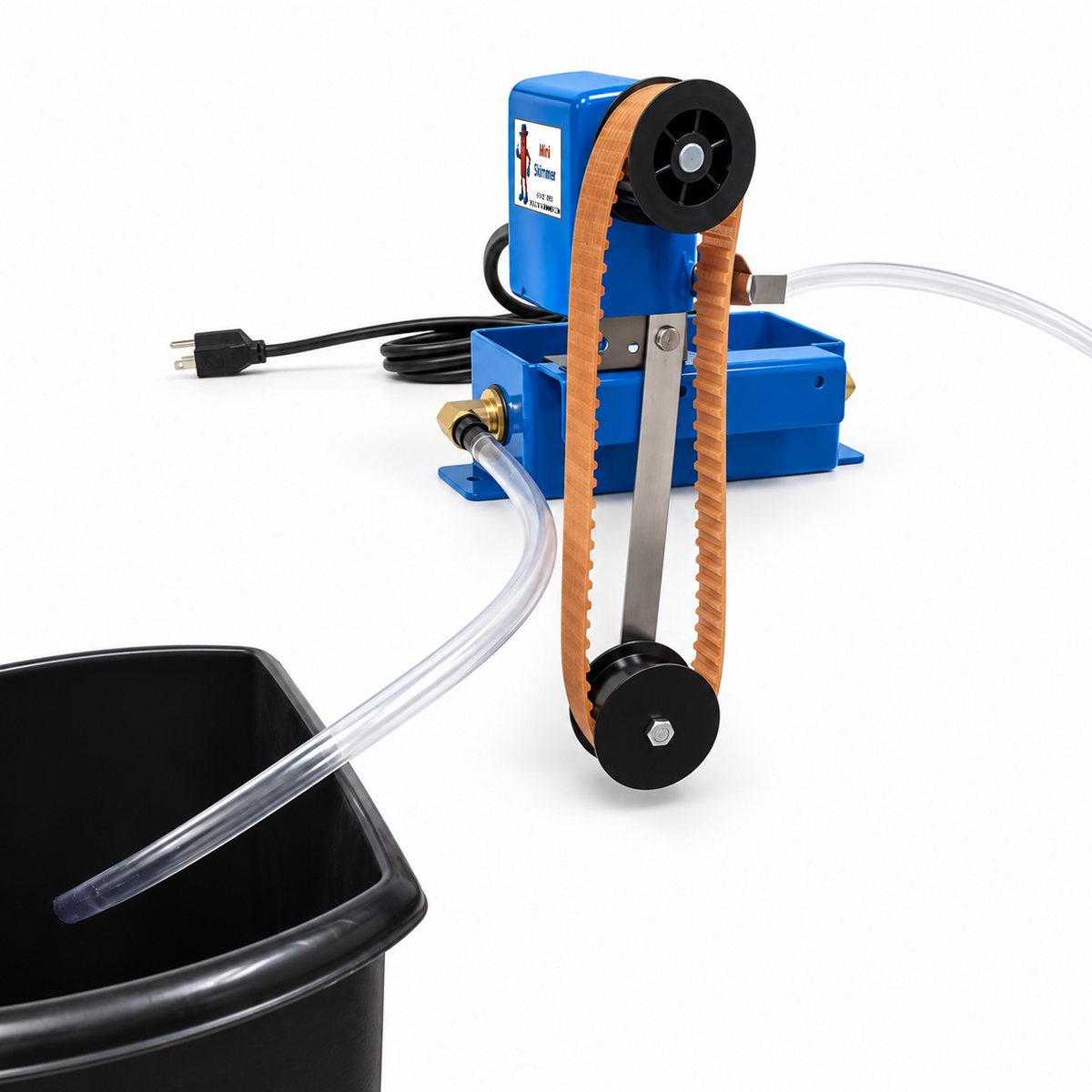

  • Mini-Sep Diverter installed below a Mini-Skimmer belt oil skimmer with coolant return and waste hoses

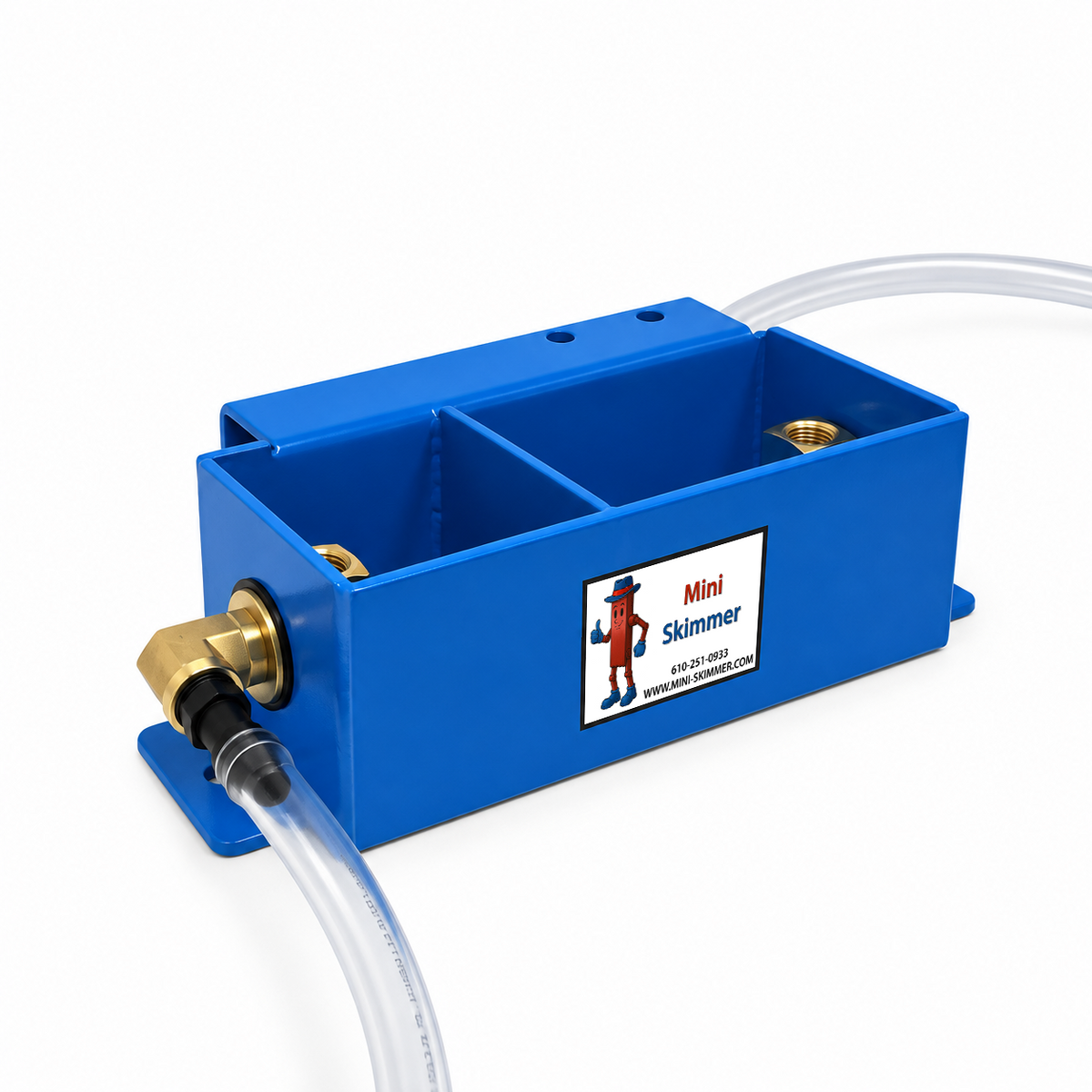

  • Mini-Sep Diverter angled view showing dual internal chambers and hose connections

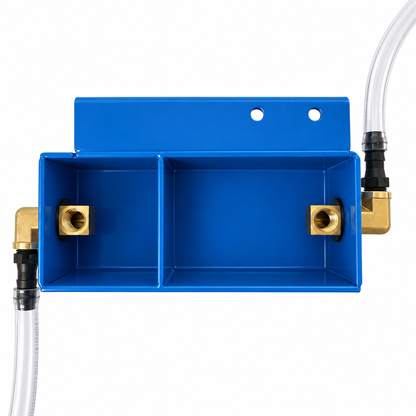

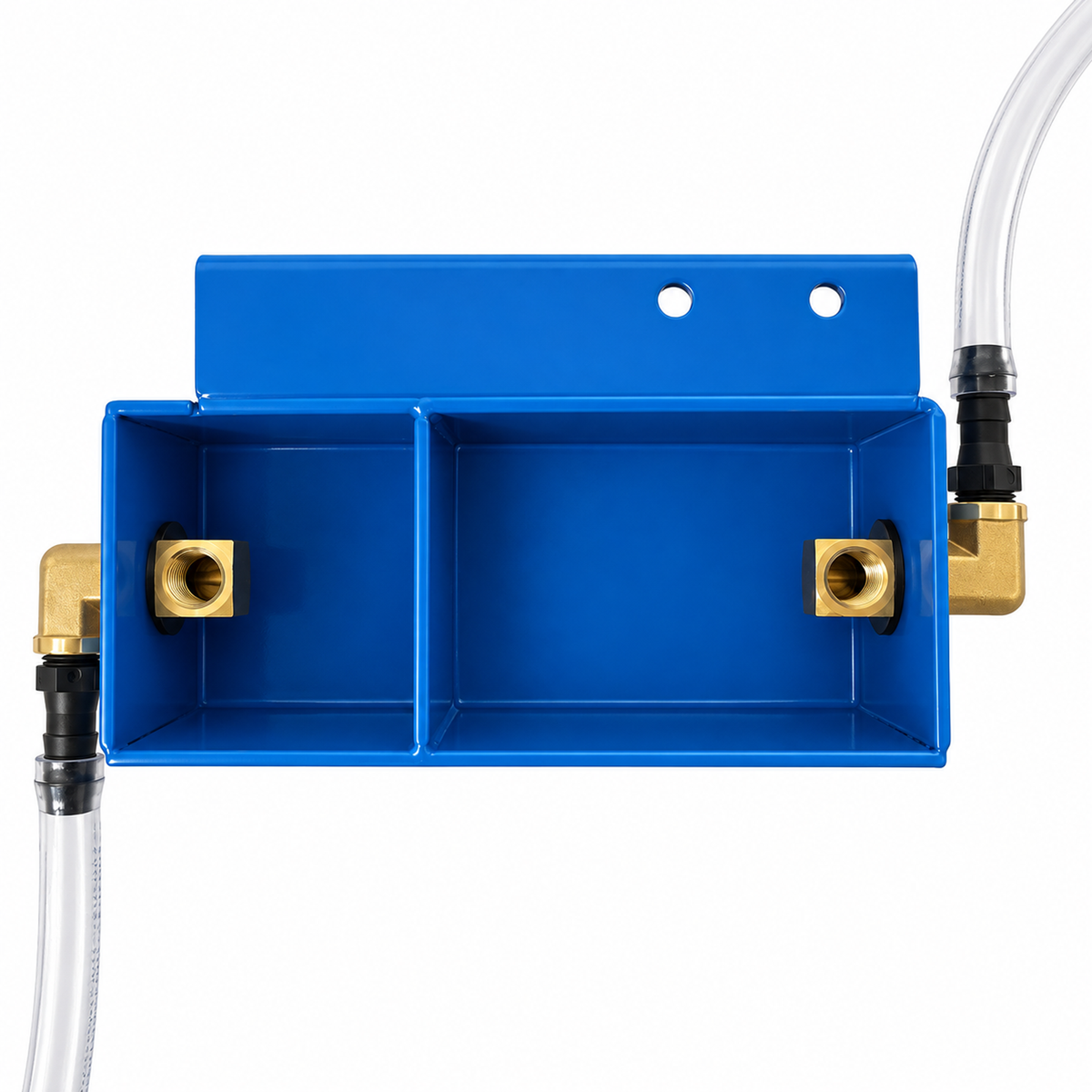

  • Top view of Mini-Sep Diverter showing two separation chambers and internal brass fittings

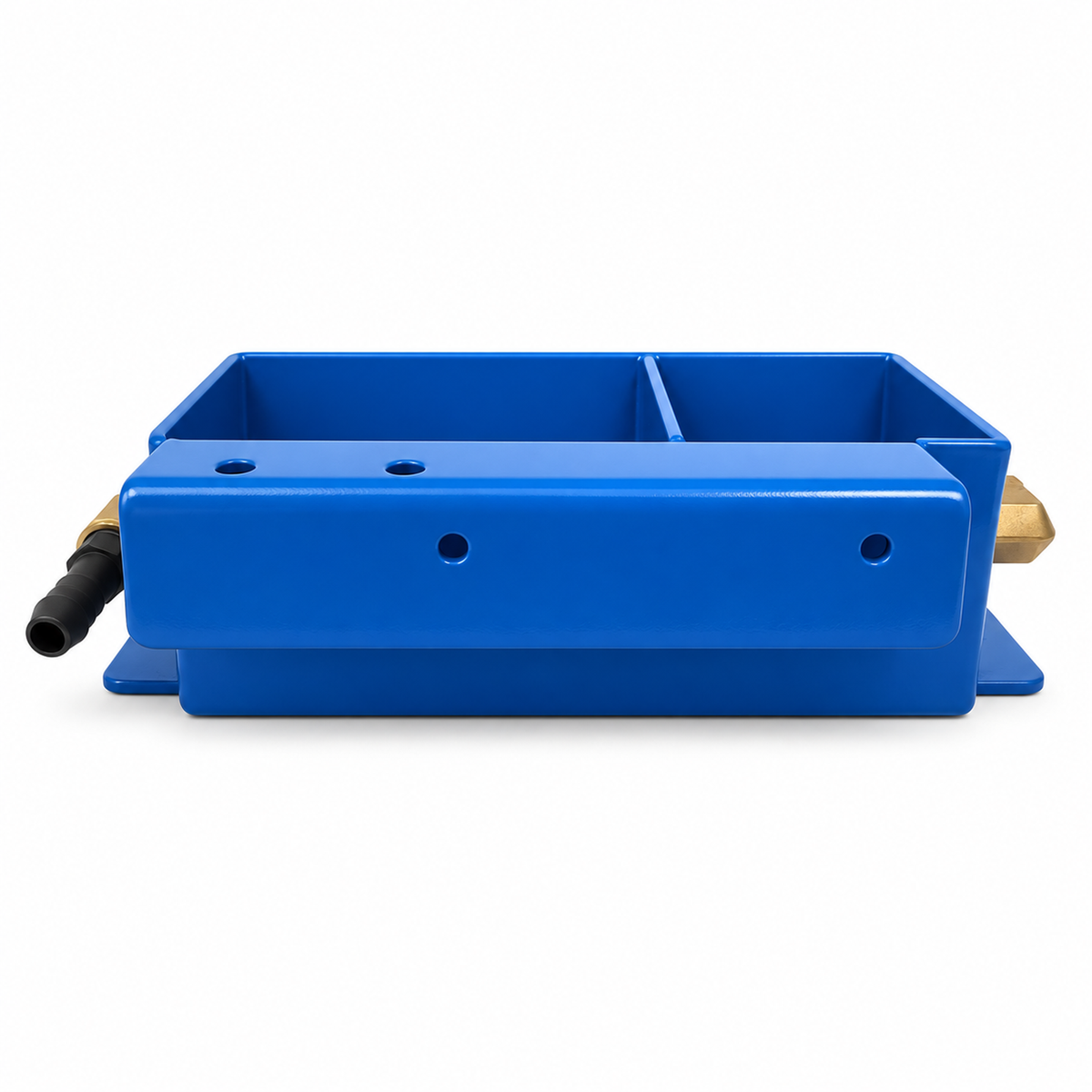

  • Rear view of Mini-Sep Diverter showing mounting bracket and attachment holes
  • How the Mini-Sep Diverter separates tramp oil and returns coolant to the machine sump
  • Mini-Sep Diverter Kit features, included components and hose routing with Mini-Skimmer

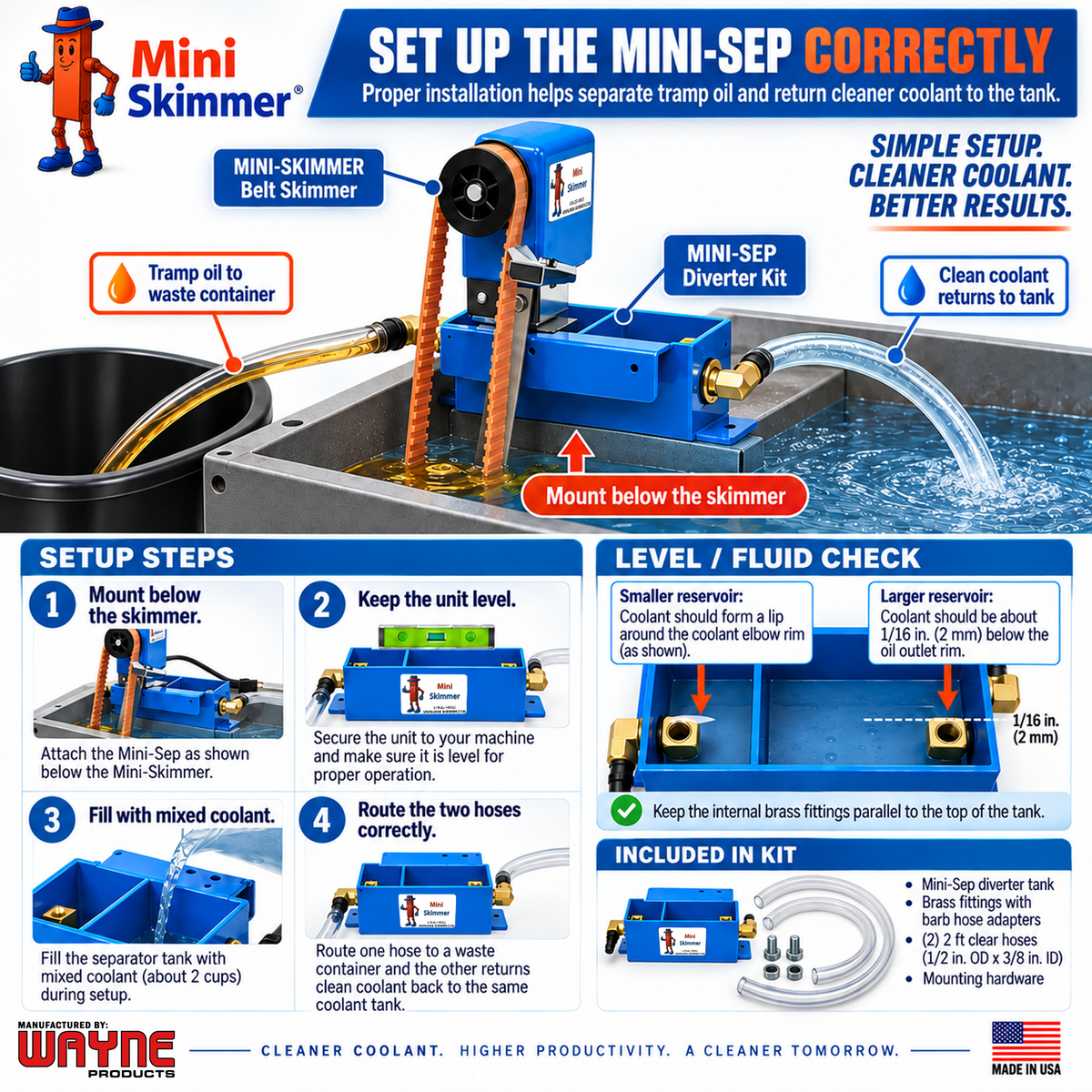

  • Mini-Sep Diverter setup guide showing mounting, hose routing and correct coolant fluid levels

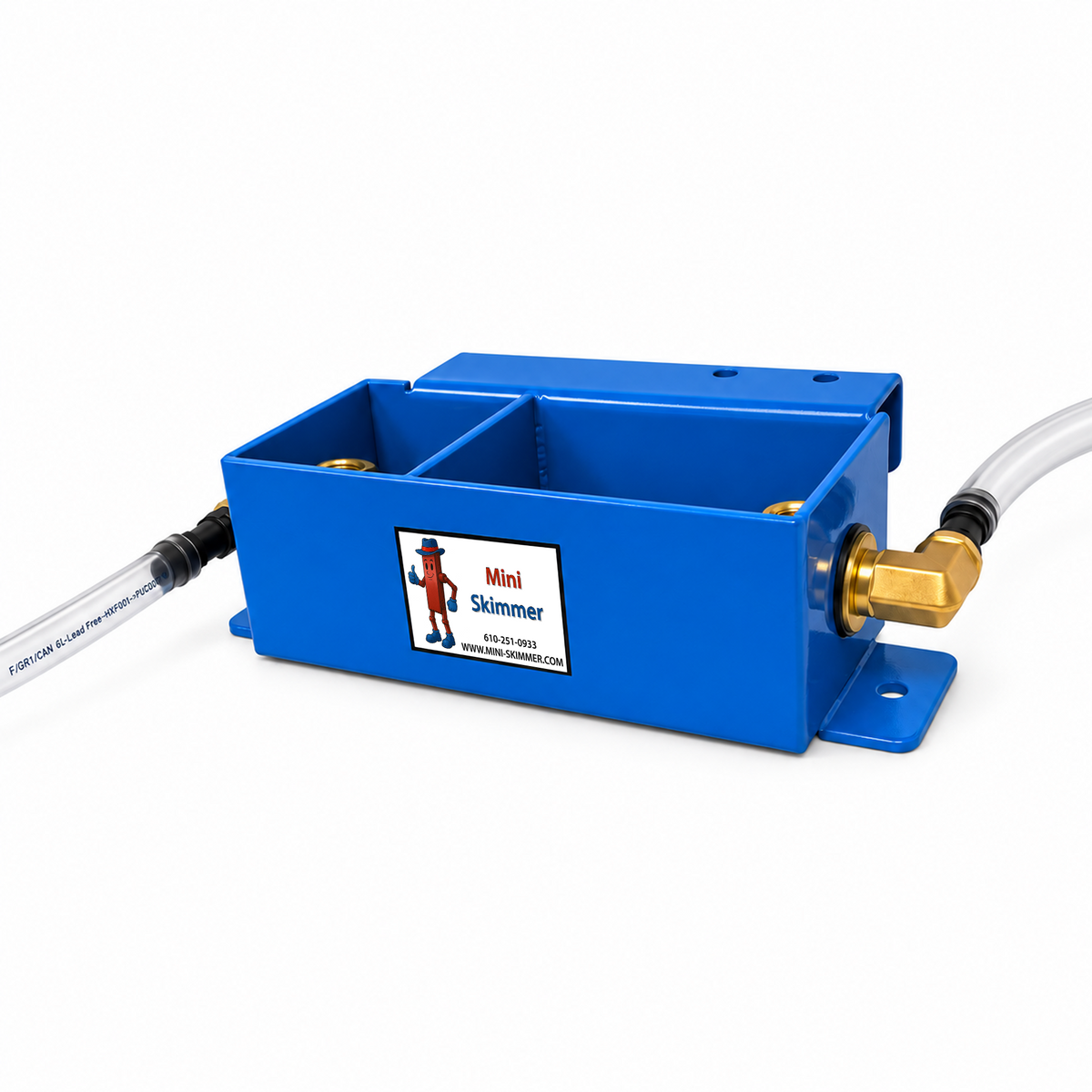

  • Mini-Sep Diverter front view showing steel separator tank, brass fittings and clear hoses

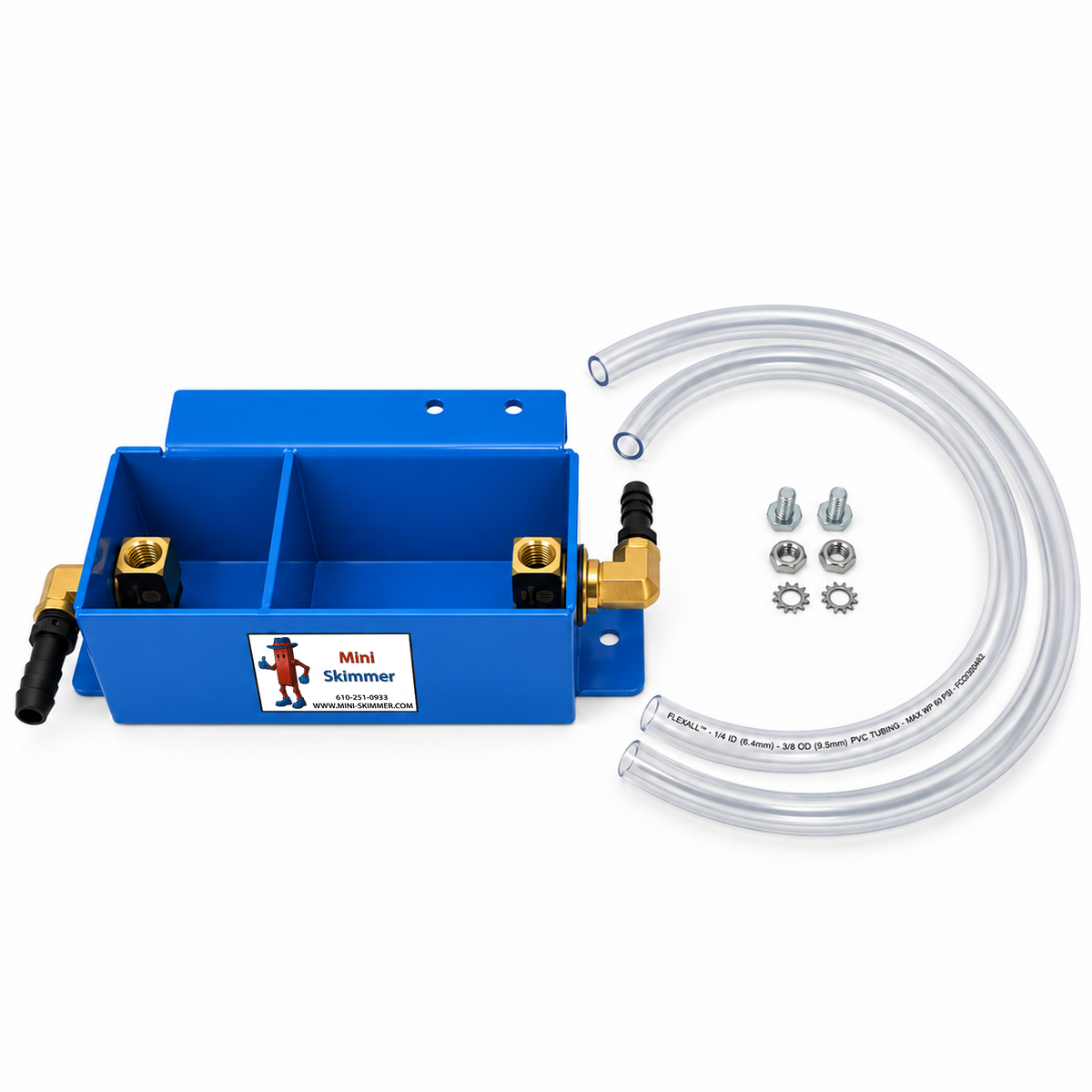

  • Mini-Sep Diverter Kit with separator tank, two clear hoses and mounting hardware
1 10

Wayne Products

Mini-Sep Diverter Kit — Tramp Oil Separator for Mini-Skimmer

Mini-Sep Diverter Kit — Tramp Oil Separator for Mini-Skimmer

  • Most Wayne-made items ship same or next business day

Product details

Mini-Sep™ diverter kit for use with Mini-Skimmer™ belt oil skimmers. Separates tramp oil from skimmed coolant and returns cleaned coolant to the same sump. Includes diverter tank, brass fittings with barbed hose adapters, (2) 2 ft clear hoses, and mounting hardware.

Part # 33025

$252.00 USD
$252.00 USD
Sale Sold out
Shipping calculated at checkout.
Mini-Skimmer™ Coolant Management Accessory

Separate tramp oil while returning coolant to the same sump

The Mini-Sep Diverter Kit mounts below a Mini-Skimmer™ belt oil skimmer to separate the oil-and-coolant mixture removed from the sump. Coolant is directed back to the same machine sump or tank, while separated tramp oil is routed to a separate waste container.

How the Mini-Sep Works

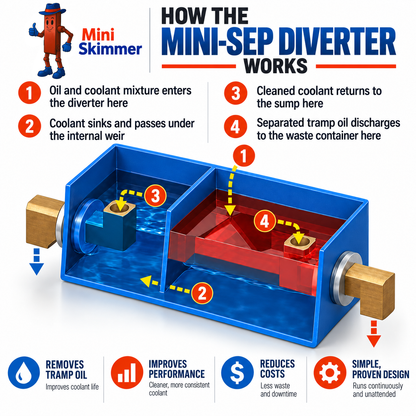

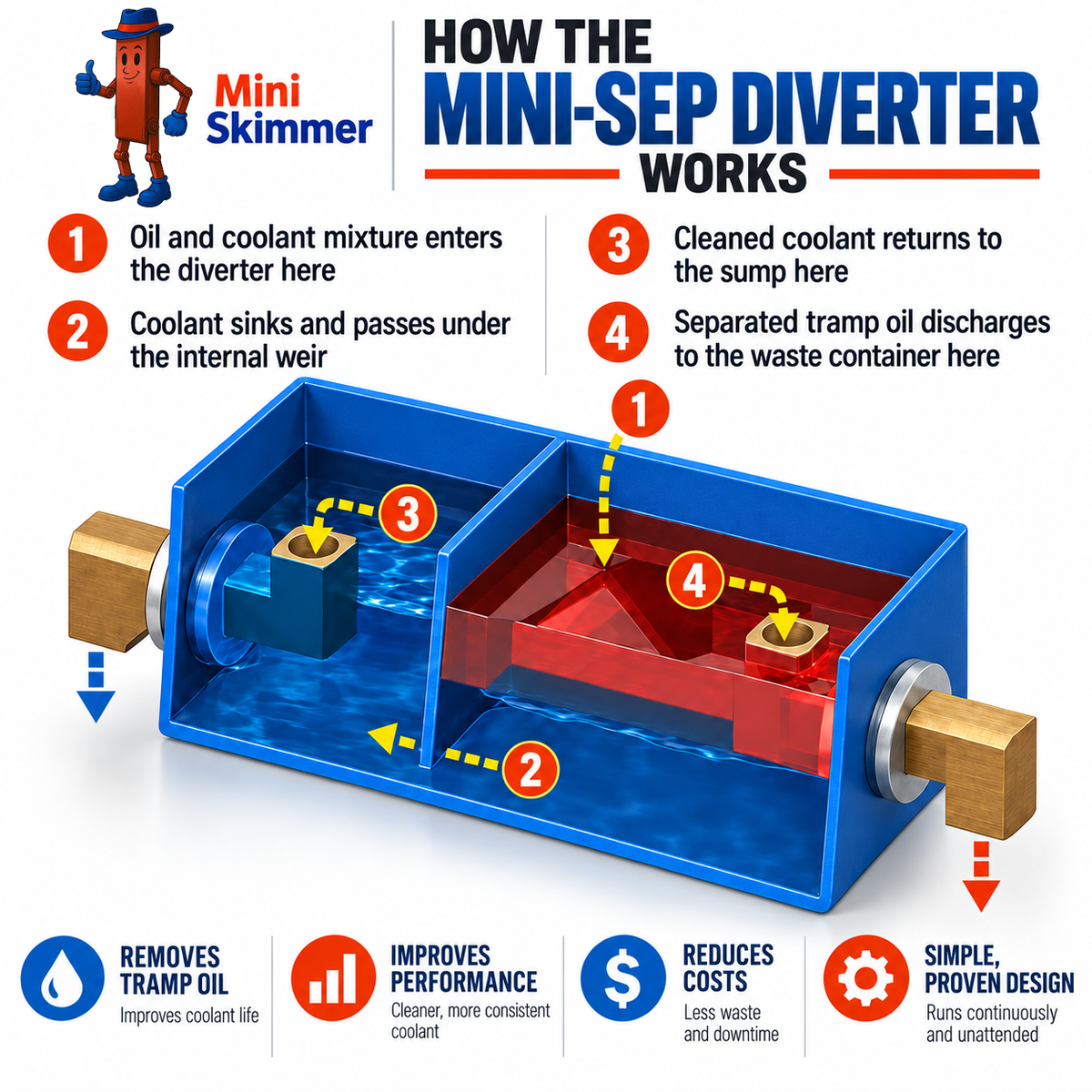

The Mini-Sep uses a two-chamber internal layout to separate coolant from the tramp oil discharged by the Mini-Skimmer™.

  1. The oil-and-coolant mixture removed by the Mini-Skimmer™ enters the Mini-Sep.
  2. Coolant settles and passes beneath the internal weir into the coolant-return chamber.
  3. Separated coolant exits through the return fitting and is routed back to the machine sump or tank.
  4. Separated tramp oil exits through the oil outlet and is routed to a waste container.

Product Details

Function
Tramp oil / coolant separation
Construction
Steel diverter tank
Connections
Brass fittings with barbed hose adapters
Oil Output Capacity
Approximately 2 qt/hr
Country of Origin
USA
Warranty
1 year

Kit Contents

Included

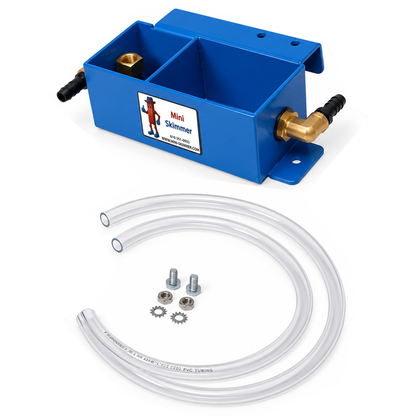

  • Mini-Sep diverter tank
  • Brass fittings with barbed hose adapters
  • (2) 2 ft clear hoses
  • 1/2 in. OD × 3/8 in. ID hose size
  • Mounting hardware

Not Included

  • Mini-Skimmer™ belt oil skimmer shown in application images

Installation & Setup

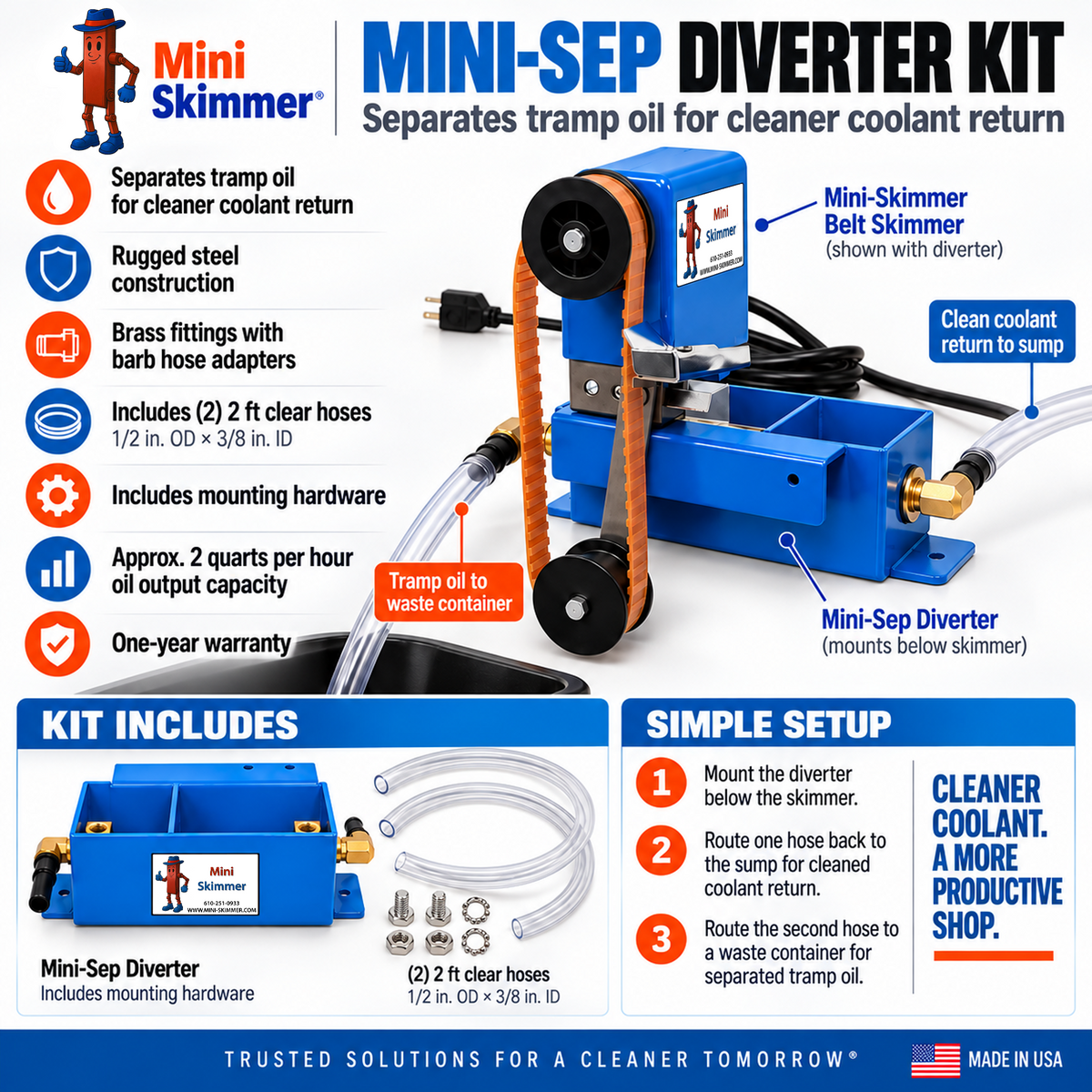

Install the Mini-Sep below the Mini-Skimmer™ so the skimmed oil-and-coolant mixture can flow into the separator. Secure the unit to the machine and keep the separator level during operation.

  • Route the coolant-return hose back to the same machine sump or tank.
  • Route the tramp-oil discharge hose to a separate waste container.
  • Keep the internal brass fittings parallel to the top of the tank.
  • During initial setup, fill the separator tank with approximately 2 cups of mixed coolant.
Setup requirement: Correct fluid level and a level installation are important for proper separation and discharge through the two outlets.

Designed for Mini-Skimmer™ Coolant Applications

The Mini-Sep adds a secondary separation stage to a Mini-Skimmer™ installation. Rather than sending the complete skimmed mixture to waste, the system separates the discharge so coolant can return to the machine while collected tramp oil is directed to a waste container.

Need help finding the right product, replacement part, or configuration? Contact Wayne Products for product selection and application assistance.
