Mini-Skimmer Flat Belt Oil Skimmers

Most Wayne-made items ship same or next business day

Reach 5 in 8 in 12 in 18 in 24 in

Motor Speed 10 RPM 30 RPM

Selected configuration

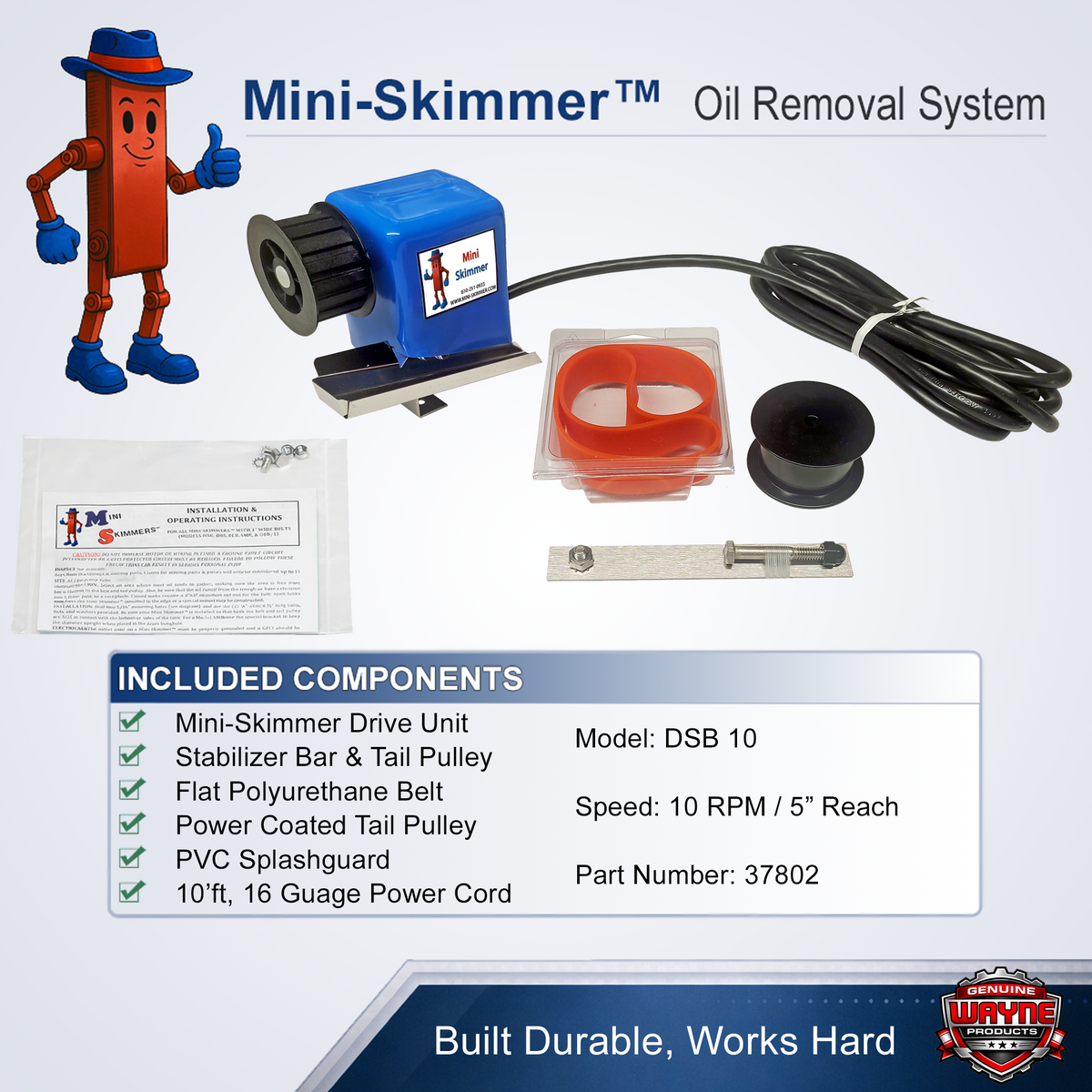

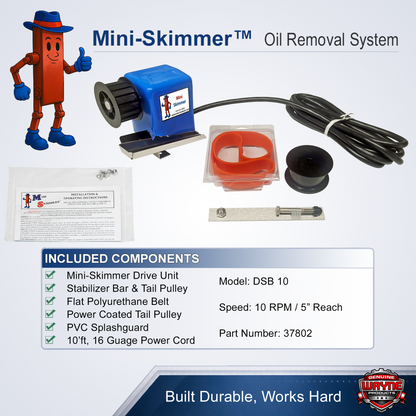

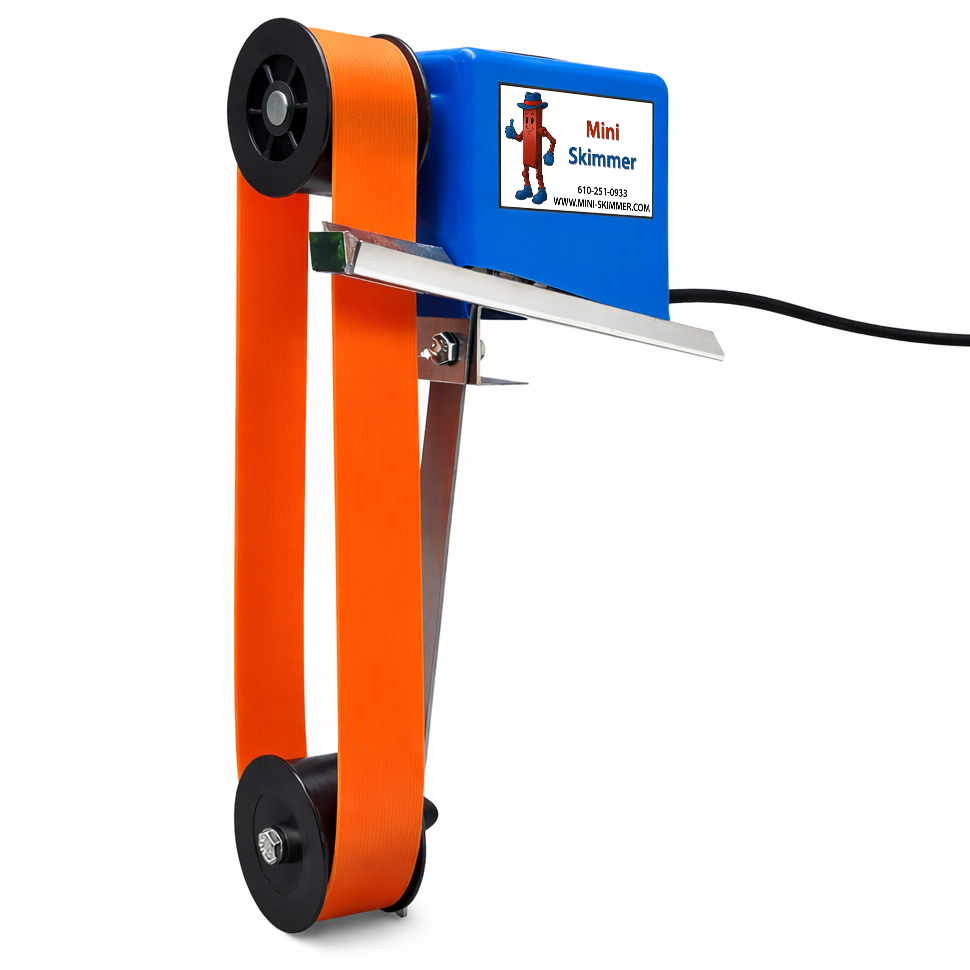

Mini-Skimmer™ flat-belt oil skimmer — 10 RPM — 5 in reach — 1 in flat polyurethane belt — Belt ID 210P1 — 21 in circumference.

Part # 37802

$419.00 USD

Sale Sold out

Shipping calculated at checkout.

Economical Flat Belt Configuration

Practical Tramp-Oil Removal for Coolant and Wastewater Applications

The 1 in flat polyurethane belt provides dependable oil pickup for light- to medium-duty applications where a simple, economical belt skimmer is preferred. Use it with neutral-pH coolant, wastewater, and ambient-temperature oil-and-water applications.

Select the Reach and Motor Speed

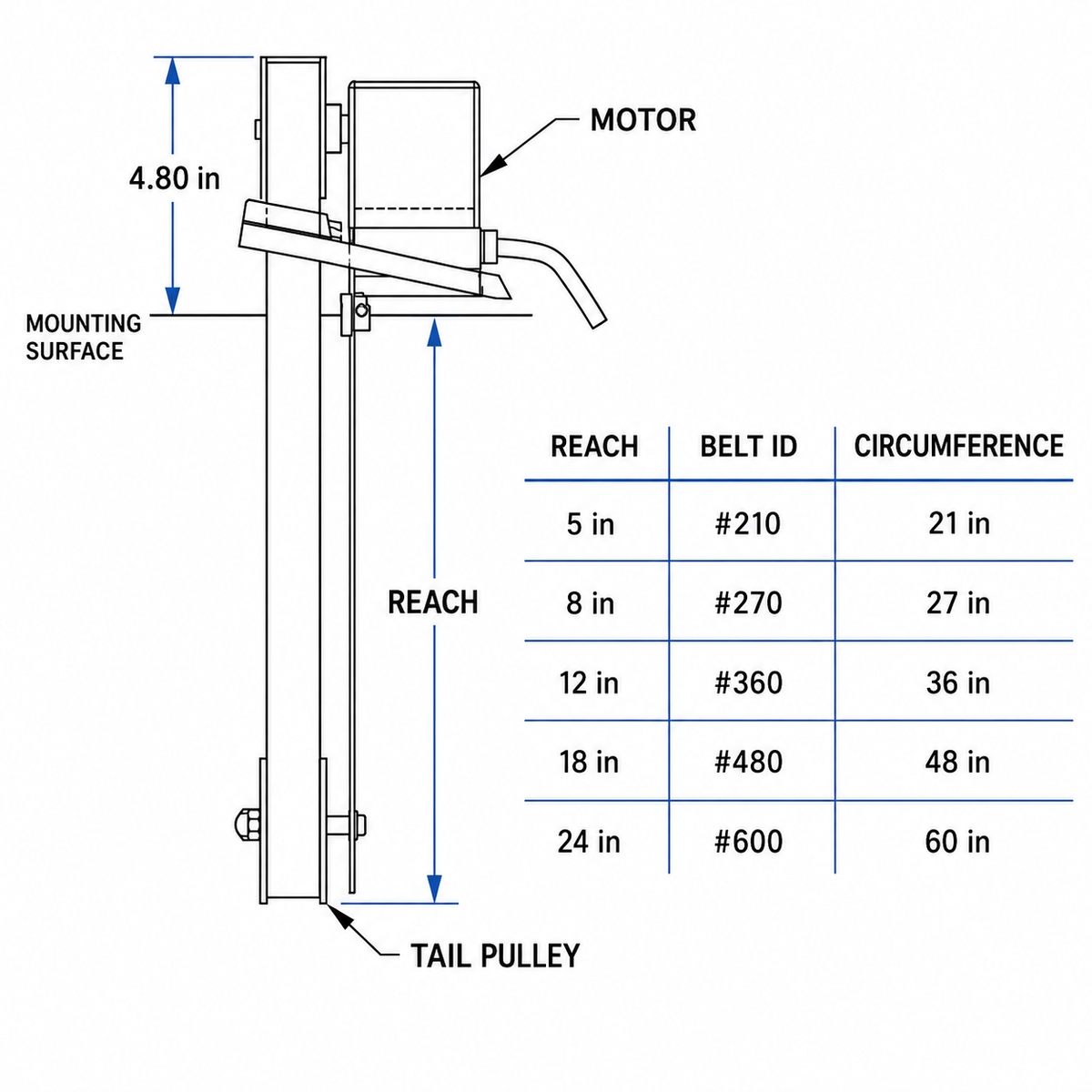

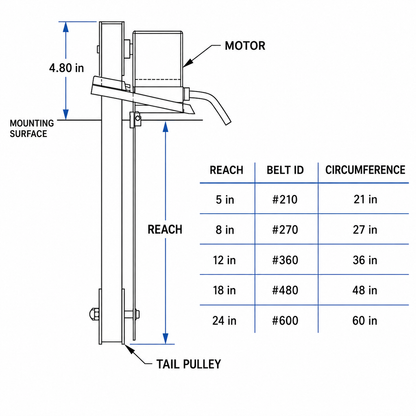

Reach is measured from the bottom of the mounting bracket to the bottom of the lower tail pulley. Match the required reach to the normal fluid level, then select a 10 RPM or 30 RPM motor.

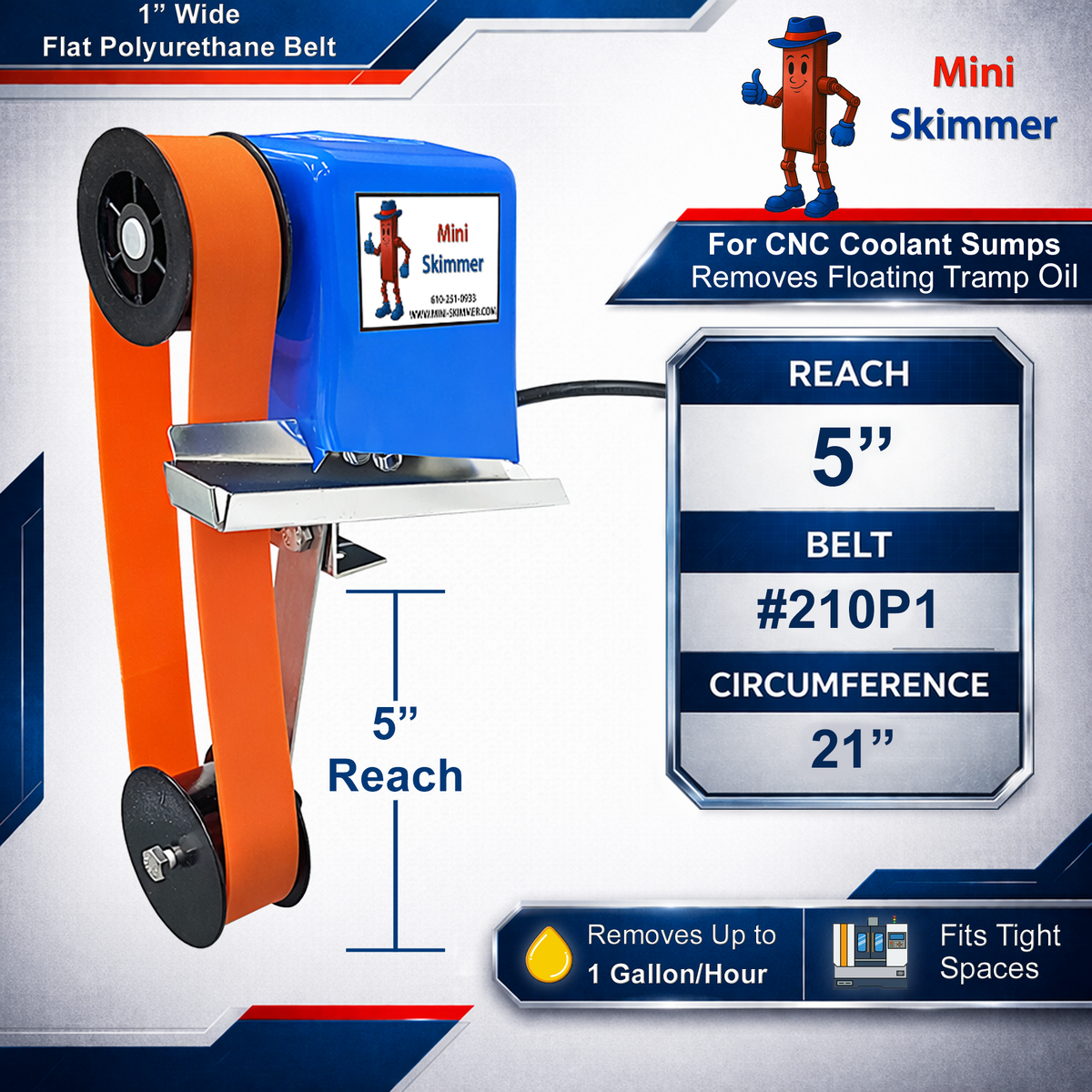

Reach 5 in

Belt 1 in flat polyurethane / 210P1

10 RPM Wayne P/N 37802

30 RPM Wayne P/N 37803

Reach 8 in

Belt 1 in flat polyurethane / 270P1

10 RPM Wayne P/N 37800

30 RPM Wayne P/N 37810

Reach 12 in

Belt 1 in flat polyurethane / 360P1

10 RPM Wayne P/N 37805

30 RPM Wayne P/N 37820

Reach 18 in

Belt 1 in flat polyurethane / 480P1

10 RPM Wayne P/N 37825

30 RPM Wayne P/N 37830

Reach 24 in

Belt 1 in flat polyurethane / 600P1

10 RPM Wayne P/N 37835

30 RPM Wayne P/N 37840

Configuration note: The Wayne part numbers above identify the standard 115 V, single-phase, 60 Hz models. Other motor configurations are usually available by quote.

When to Choose Flat Polyurethane

Recommended Applications

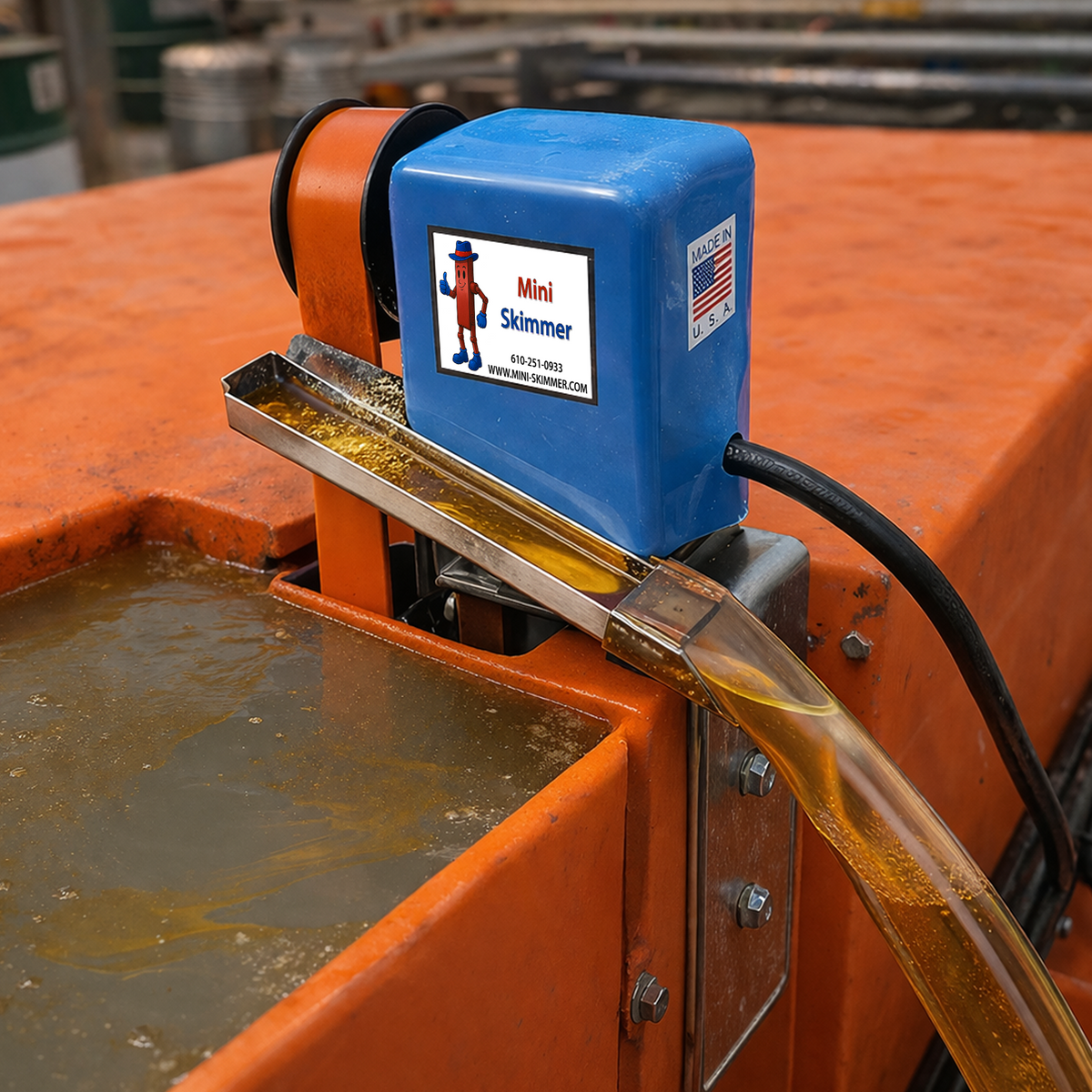

CNC and machine-tool coolant sumps
Machining centers and cutting fluids
Neutral-pH parts washers and wash tanks
Monitoring wells and wastewater surfaces
Industrial holding tanks and reservoirs

Selection Benefits

Economical flat-belt construction
Dependable pickup in light- to medium-duty service
Five stocked reach lengths
Compact configuration for limited mounting space

Fluid compatibility: Use polyurethane belts with neutral-pH fluids below 120 degreesF. Select a stainless steel belt for hotter, acidic, alkaline, or chemically aggressive fluids.

Performance and Construction

10 RPM Collection Rate Approximately 1 qt/hr

30 RPM Collection Rate Approximately 1 gal/hr

Belt Width 1 in

Belt Material Flat polyurethane

Drive Pulley Corrosion-resistant glass-filled nylon

Tail Pulley Powder-coated steel

Unit Warranty One year from shipment

Belt Warranty 90 days for manufacturing defects

Country of Origin Made in the USA

Performance note: Collection rates are approximate. Actual performance depends on the oil, fluid conditions, surface activity, and the amount of oil reaching the belt.
